Luftkappe on ilmamäntä, joka tekee saman keulalle, mitä Corset-lisäosa teki takaiskarille eli suurentaa ilmajousen negatiivisen puolen tilavuutta. Suurempi negatiivinen ilmajousi parantaa alkuherkkyyttä ja tekee ilmajousesta lineaarisemman, parantaen samalla myös keskialueen kantavuutta.






Make a good fork a great fork.

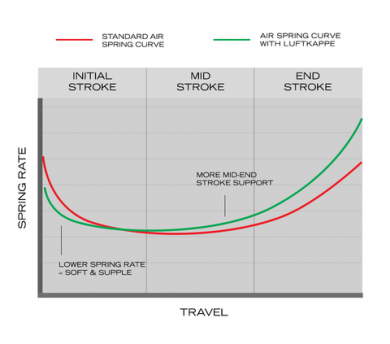

Taking everything we learned with the Corset air sleeves, the Luftkappe is a new air piston assembly that enlarges the negative air chamber to reduce the initial spring rate. This lets you run higher air pressure for more support in the middle and end of the stroke with improved sensitivity in the start of the stroke. User installable and simple to set up, the Luftkappe transforms a good fork into a great fork.

  • Coil-like feel without the harsh bottoming of a completely linear spring
  • Lower initial spring rate increasing sensitivity

  • Improved mid stroke support & control

  • Compatible with stock bottomless tokens

  • Superior bump compliance and traction

  • Reduced hand fatigue

  • Reduces required compression damping

  • Optional 10mm shaft clamps available for self-install




COMPATIBILITY:



Dual Position Air (DPA) forks of any year

Not Compatible

Rockshox Pike / Revelation < 2014

Not Compatible

Rockshox Pike / Revelation 2014 (Solo Air) all wheel sizes

LK - A1

Rockshox Pike / Revelation 2015 (Solo Air) all wheel sizes

LK - A1

Rockshox Pike / Revelation 2016 (Solo Air) all wheel sizes

LK - A1

Rockshox Pike / Revelation 2017 (Solo Air) all wheel sizes

LK - A1

Rockshox Pike / Revelation 2018 - Debonair ONLY - all wheel sizes

LK - A2

Rockshox Pike / Revelation 2019-2022 (Debonair) all wheel sizes

In order to fit a Luftkappe to a MY2019+ Pike / Revelation, you will need to remove the MY2019+ air shaft assembly and retrofit the previous generation Solo Air spring shaft (available separately - not through our web store). Rockshox part numbers are as follows:

For 2019+ Pike/Revelation of ANY wheel size, use Luftkappe A2 variant with:

120mm: 11.4018.026.030 - Air Shaft Solo Air - PIKE B1/Revelation A1 (listed as 120mm 29/27)
130mm: 11.4018.026.031 - Air Shaft Solo Air - PIKE B1/Revelation A1 (listed as 130mm 29/27)
140mm: 11.4018.026.032 - Air Shaft Solo Air - PIKE B1/Revelation A1 (listed as 140mm 29/27)
150mm: 11.4018.026.033 - Air Shaft Solo Air - PIKE B1/ Revelation A1 (listed as 150mm 29/27)
160mm: 11.4018.026.034 - Air Shaft Solo Air - PIKE B1/Revelation A1 (listed as 160mm 29/27)

OR use Luftkappe A1 variant with:

120mm: 11.4018.026.011 - Air Shaft Solo Air - PIKE (listed as 120mm 27.5)
130mm: 11.4018.026.010 - Air Shaft Solo Air - PIKE (listed as 130mm 27.5)
140mm: 11.4018.026.003 - Air Shaft Solo Air - PIKE (listed as 140mm 27.5)
150mm: 11.4018.026.000 - Air Shaft Solo Air - PIKE (listed as 150mm 27.5)
160mm: 11.4018.026.001 - Air Shaft Solo Air - PIKE (listed as 160mm 27.5)

Rockshox Pike / Revelation 2023

Not Compatible

Rockshox Lyrik / Yari < 2015

Not Compatible

Rockshox Lyrik / Yari 2016 (Solo Air) all wheel sizes

LK - A1

Rockshox Lyrik / Yari 2017 (Solo Air) all wheel sizes

LK - A1

Rockshox Lyrik / Yari 2018 - Solo Air & Debonair - all wheel sizes

LK - A1

Rockshox Lyrik / Yari 2019-2022 (Debonair) all wheel sizes

LK - A1 + Airshaft (Solo Air)

In order to fit a Luftkappe to a MY2019+ fork, you will need to remove the MY2019+ air shaft assembly and retrofit the previous generation Solo Air spring shaft (available separately - not through our web store). Rockshox part numbers are as follows:

11.4018.026.001 - Air Shaft Solo Air - Lyrik/Yari (150mm)

11.4018.026.004 - Air Shaft Solo Air - Lyrik/Yari (160mm)

11.4018.026.002 - Air Shaft Solo Air - Lyrik/Yari (170mm)

11.4018.026.020 - Air Shaft Solo Air - Lyrik B1/Yari (180mm)

Rockshox Lyrik / Yari 2023

Not Compatible

Rockshox Boxxer (all years)

Not Compatible

Rockshox Zeb 2021

LK-ZEB

Rockshox Zeb 2022

LK-ZEB

Rockshox Zeb 2023

Requires 2021-22 air shaft to use LK-ZEB, 2023 air shafts not compatible.

Rockshox Domain 2022

LK-DM

Fox Talas forks

Not Compatible

Fox 32 (all years)

Not Compatible

Fox 34 <2016

Not Compatible

Fox 34 2016 (Float NA2) - Performance & Factory Series - 120mm & lower

Need 2018 EVOL airshaft, use LK-34/38EVOL

Fox 34 2016 (Float NA2) - Performance & Factory Series - More than 130mm

LK-34NA (discontinued)

Fox 34 2017 (Float NA2) - Performance & Factory Series - More than 130mm

LK-34NA (discontinued)

Fox 34 2018-21 (Float NA2 Evol) - Performance & Factory Series - 27.5" (all travels) and 29" (140mm and lower only)

LK-34/38EVOL

Fox 34 2018-2022 (Float NA2 Evol) - Performance & Factory Series - 29" (150mm and higher)

Not Compatible

Fox 34 2022

LK-34/38EVOL

Fox 34 Stepcast 2019-2021

LK-34/38EVOL

Fox 34 Stepcast 2022

Not Compatible

Fox 36 <2015

Not Compatible

Fox 36 2015 (Float NA) - Performance & Factory Series

LK-36NA

Fox 36 2016 (Float NA) - Performance & Factory Series

LK-36NA

Fox 36 2017 (Float NA) - Performance & Factory Series

LK-36NA

Fox 36 2018+ (Float NA2 Evol) - Performance & Factory Series

LK-36EVOL Note: If your MY2018 36 Evol tops out noticeably, you will need to replace your air shaft assembly before purchasing the Luftkappe. For 2019 onwards, Fox have updated this part due to the topout issues that many of the 2018 36 Evol forks had. 34 forks do not have this issue. Relevant Fox part numbers for the new air shaft assemblies, by travel: 180mm: 820-02-534-KIT
170mm: 820-02-535-KIT

160mm: 820-02-536-KIT

150mm: 820-02-537-KIT

140mm: 820-02-538-KIT

100mm (36 831): 820-02-539-KIT If your fork does not have noticeable top-out issues, you don't need to replace the shaft before installing the Luftkappe.

Fox 36 (Float NA2 Evol) E-bike Specific [SPD-PED-ELEC]

Note that this fork usually requires the 34 Float NA2 Evol Luftkappe due to its thicker stanchions having a smaller ID. Exceptions exist - eg some Giant e-bikes, which use the 36 Float NA2 Evol Luftkappe as they are standard 36s despite the e-bike stickers on the fork.

Fox 38 (2021+)

LK-34/38EVOL

Fox 40

Not Compatible

Fox Rhythm Series forks

Not Compatible

Marzocchi Z1

Not Compatible
