Wolf Tooth MK0 DEL Gravel Race SPD pedals. Only 174 g / pair, DLC titanium axle, 559 mm² contact area and adjustable 51–59 mm Q-factor.
Shipping
Delivery methods, shipping costs and the estimated delivery time are shown at checkout before you confirm your order. You will receive tracking details by email when your parcel is on its way. More about shipping
Store pickup
Choose pickup from our Pitäjänmäki store at checkout and pay no shipping costs. We email you when your order is ready for pickup at Konalantie 9, Helsinki.
Returns and exchanges
Online orders have a 14-day right of withdrawal from the day you receive the product. You may examine the product as you would in a store. Please return it in its original packaging if possible. Return instructions
Warranty and service
Products come with a manufacturer's or importer's warranty, which does not limit your rights under consumer protection law. We handle warranty claims for you: contact us or bring the product to our store. Our service work comes with a 3-month warranty.
Description

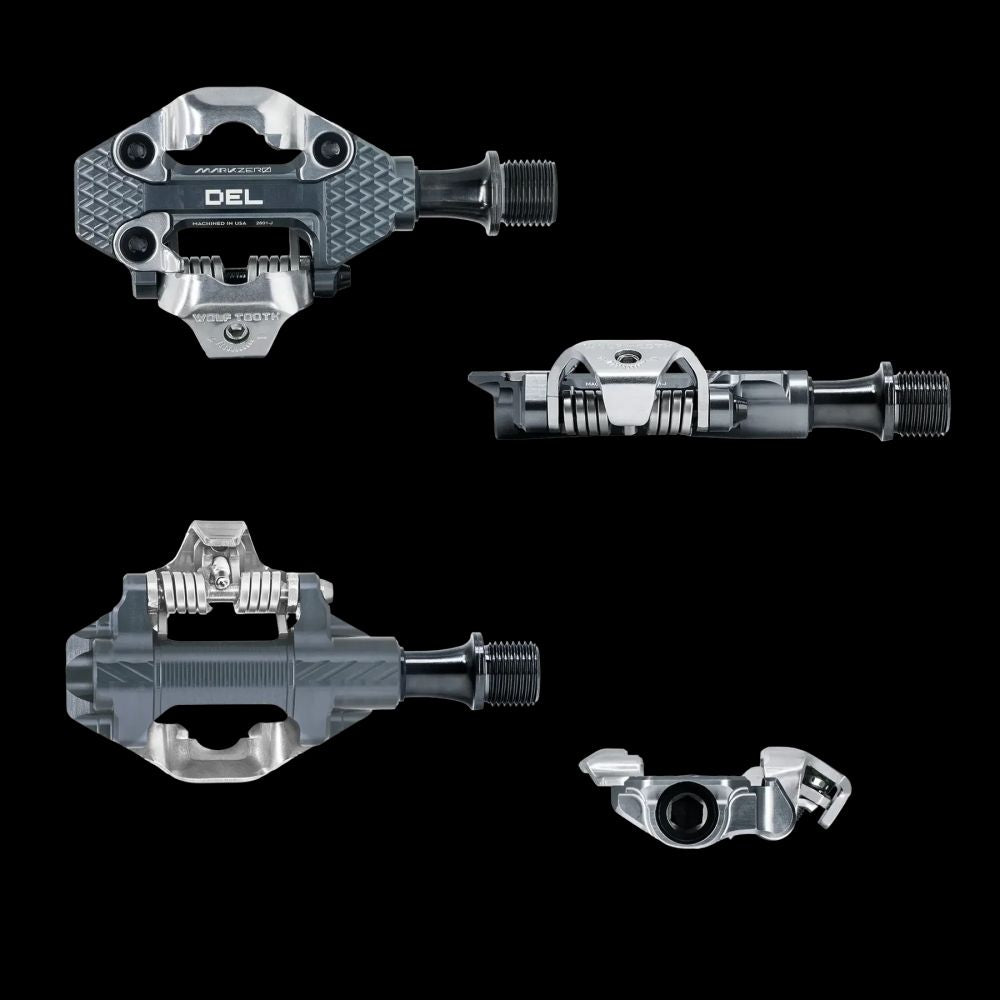

174-gram gravel race pedals

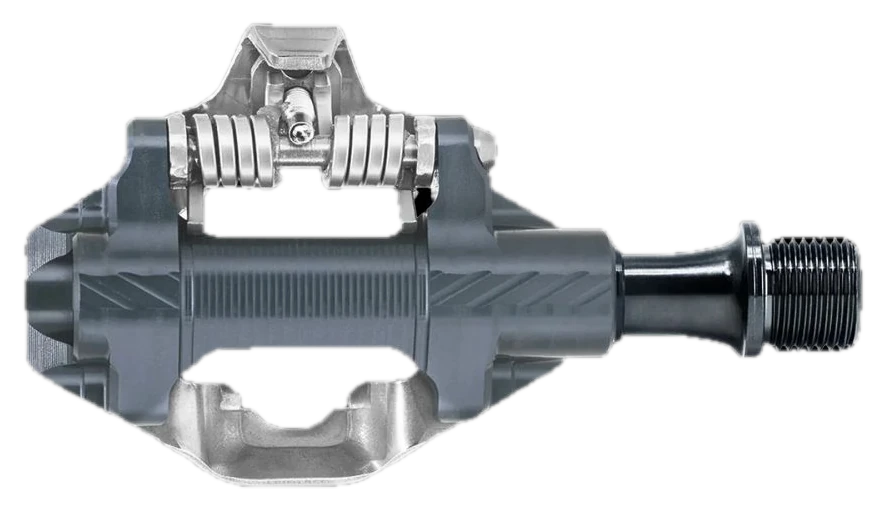

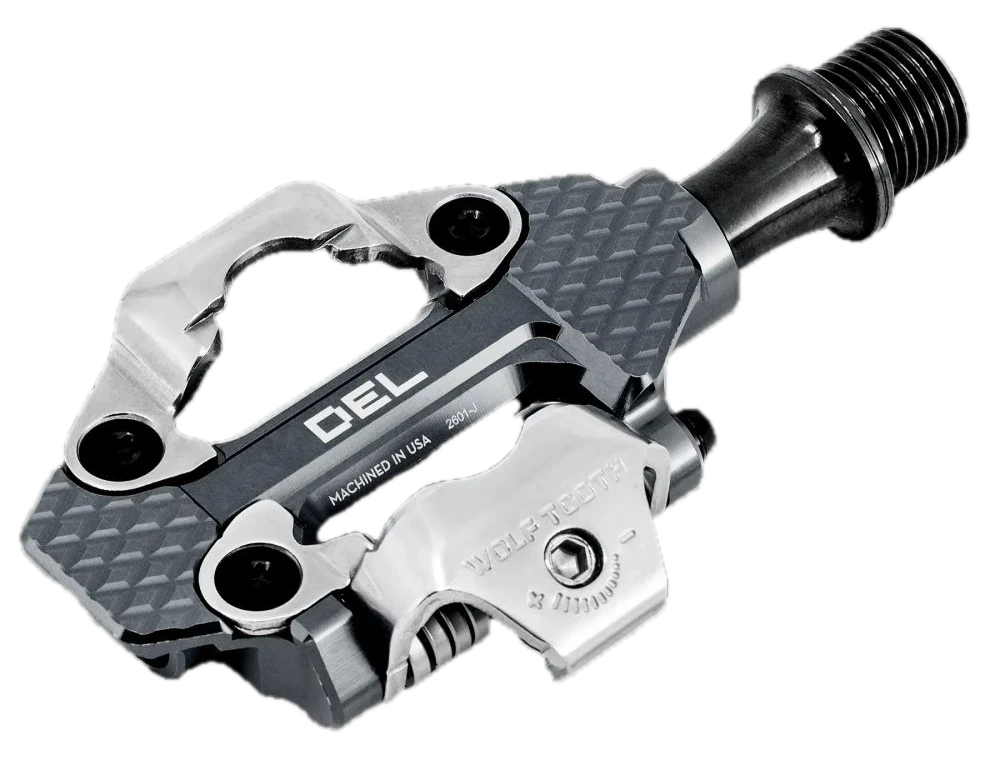

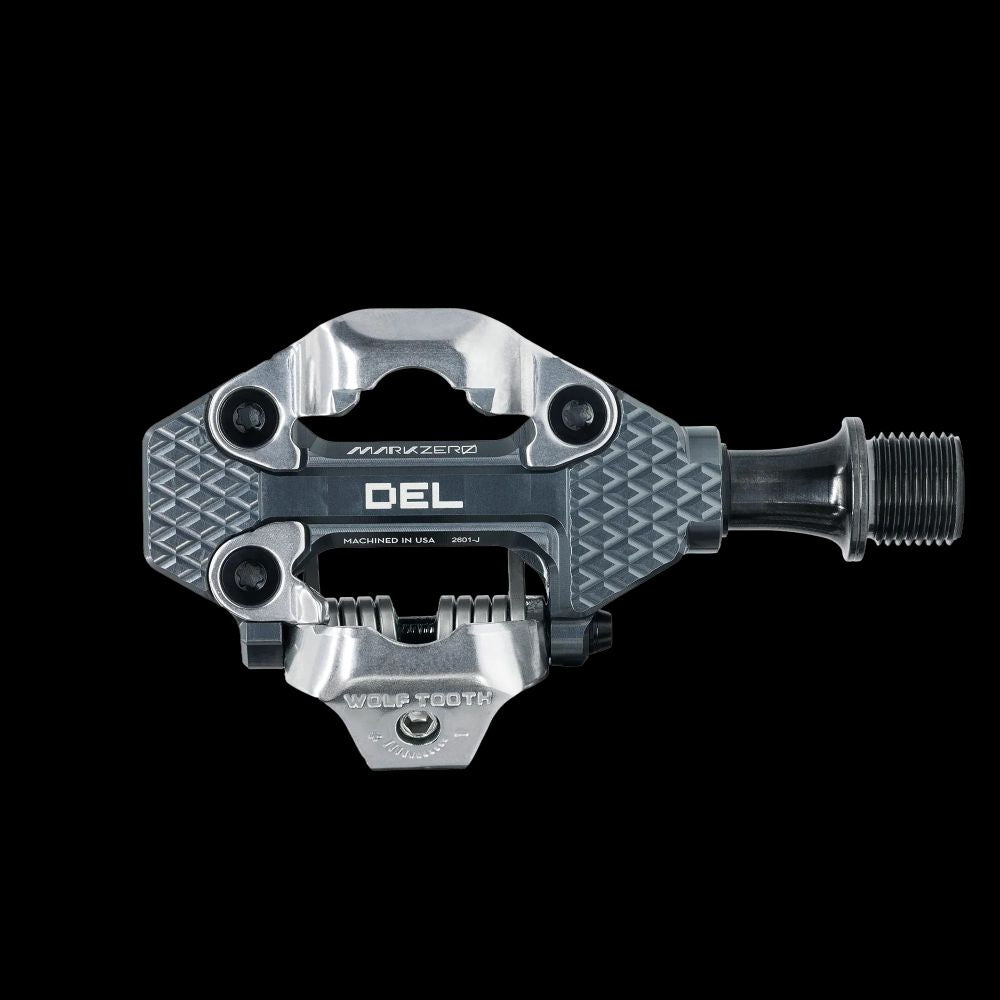

The Wolf Tooth MK0 DEL Gravel Race is an ultralight, single-sided, SPD-compatible clipless pedal for gravel racing and fast riding. Weighing just 174 grams per pair, with a low 14.5 mm profile and a large 559 mm² contact area, it combines the solid feel of a road pedal with a walkable 2-bolt SPD cleat system.
Titanium axle, large contact area and adjustable Q-factor

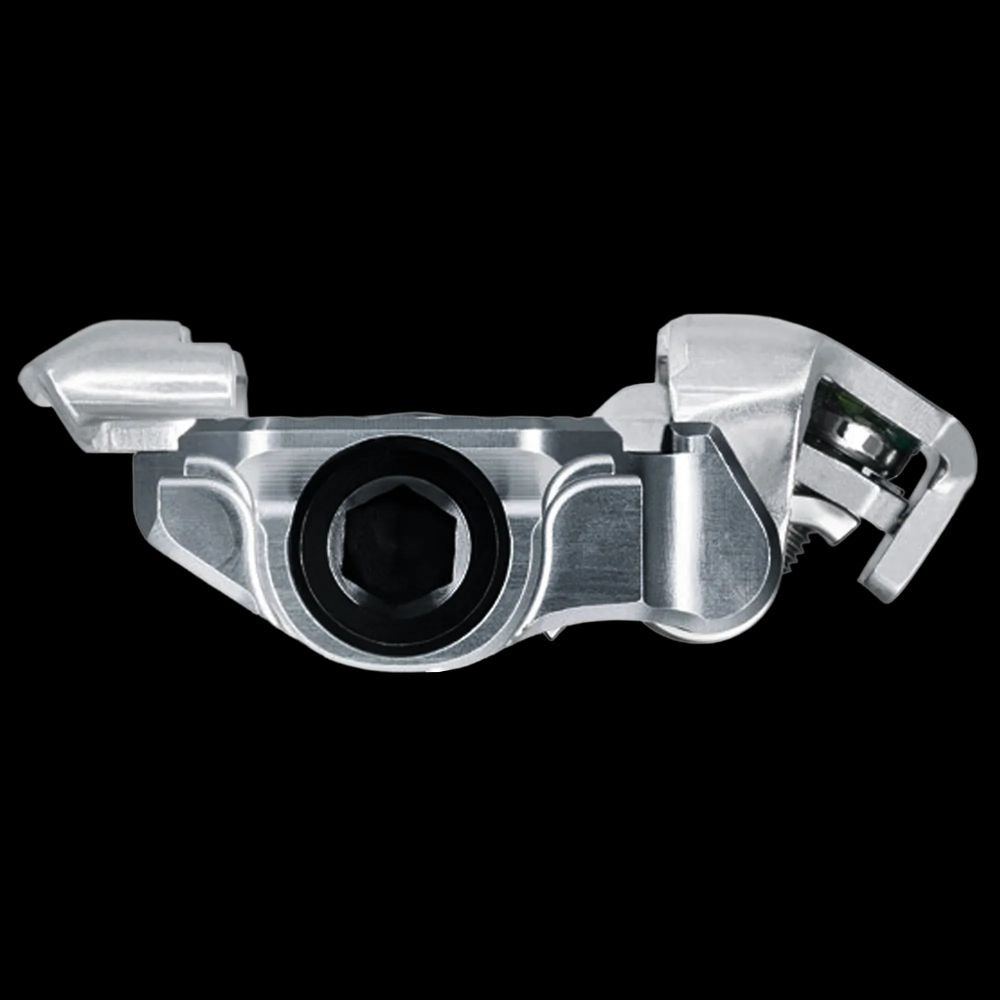

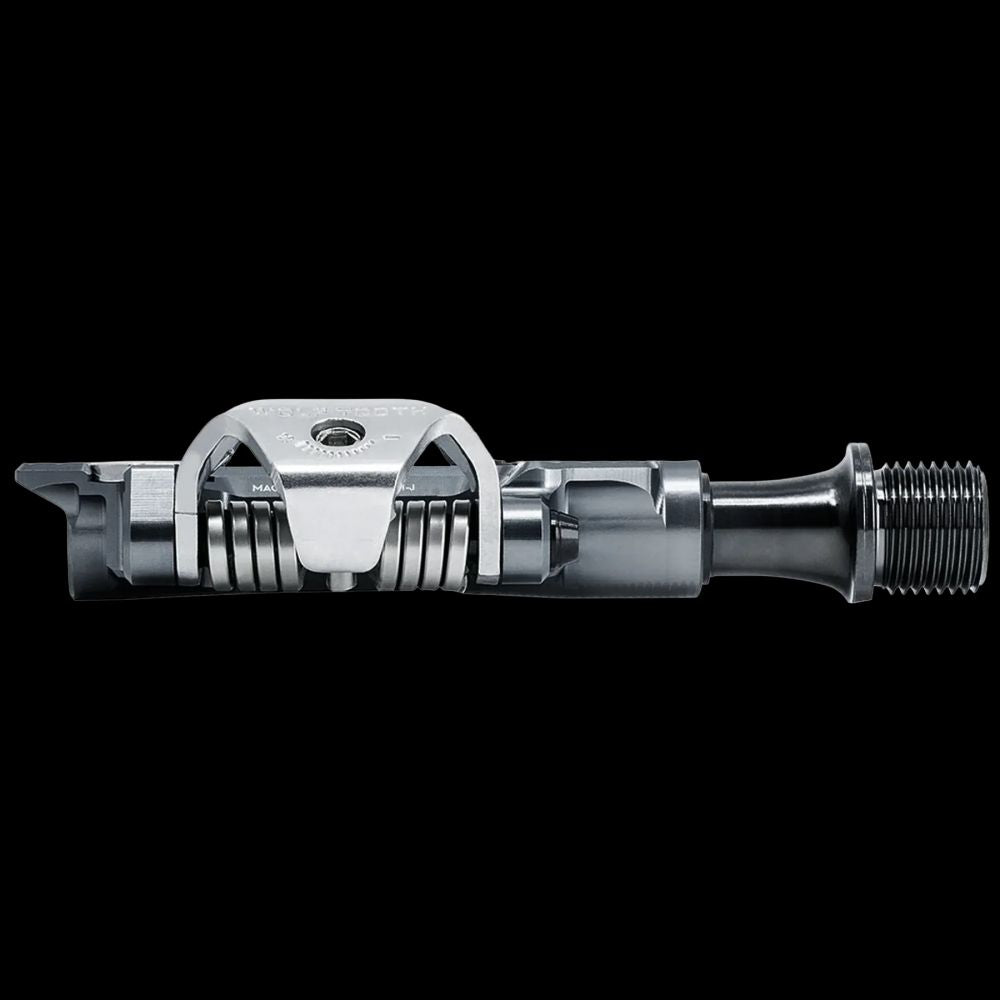

The MK0 version makes the Wolf Tooth DEL pedal as light as possible. A CNC-machined 6061-T6 aluminum body is combined with a DLC-coated 6Al-4V titanium axle, PVD-coated titanium parts and a stainless steel locking mechanism.
The 559 mm² contact area increases contact between the shoe and the pedal, while the open center helps mud and dirt fall away from the locking mechanism. The Q-factor can be adjusted to a width of 51, 55 or 59 mm, and the pedals come with a 55 mm setting. With separately available 2 mm spacers, 53 and 57 mm settings can also be used.

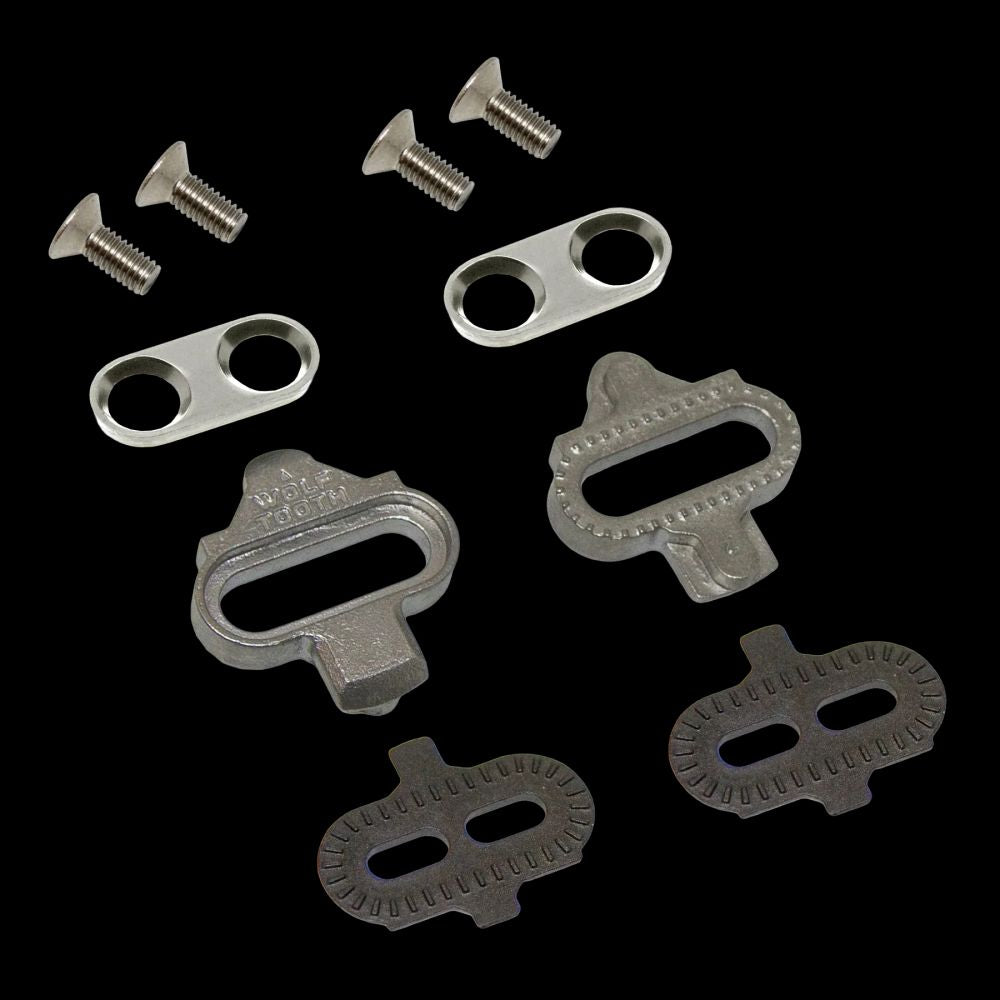

The pedals work with standard Shimano SPD-compatible 2-bolt cleats. Wolf Tooth stainless steel MK0 cleats are included.
Compatibility and technical specifications
Manufacturer: Wolf Tooth Components
Model: MK0 DEL Gravel Race Clipless Pedal
Product number: DEL-CLPS-MK0-SGR
EAN / GTIN: 810159403481

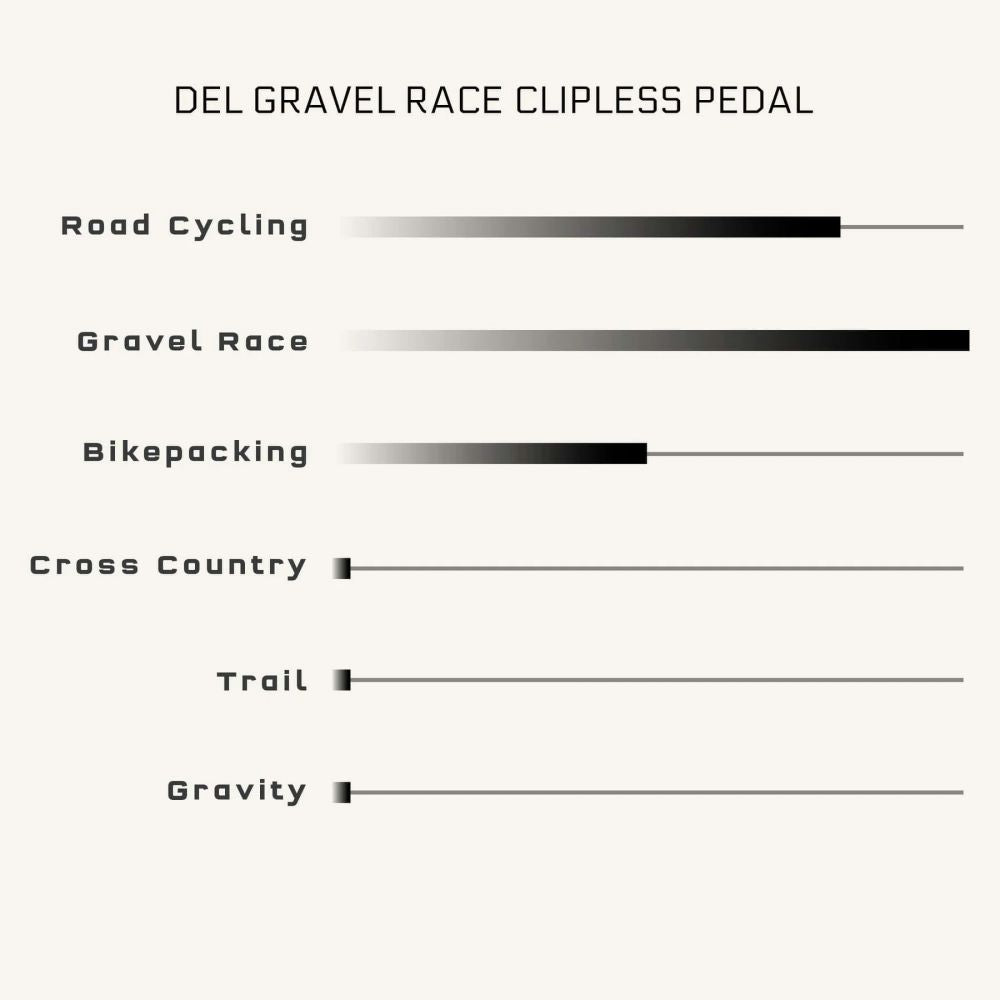

Intended use:
- gravel
- gravel race
- road
- bikepacking
Pedal type: single-sided clipless pedal
Cleat system: Shimano SPD-compatible, 2-bolt
Weight: 174 g / pair
Pedal thickness: 14.5 mm
Contact area: 559 mm²
Q-factor:
- 51 mm
- 55 mm
- 59 mm
Factory setting: 55 mm
With additional spacers:
- 53 mm
- 57 mm
Float / lateral foot movement: 5°
Release angle: 12°
Pedal body: CNC-machined 6061 aluminum
Axle: 6Al-4V titanium, DLC-coated
Locking mechanism: stainless steel
Mounting hardware: PVD-coated titanium
Bearings:
- 3 × cartridge bearings
- 1 × igus bushing
Pedal thread: 9/16"-20
Maximum rider weight: 90 kg
Color: Shadow Gray
Serviceable design: yes
Manufacturing: CNC-machined and assembled in Minnesota, USA
Warranty: 5 years against material and manufacturing defects.
Note: the maximum rider weight specified by the manufacturer is 90 kg.
Specifications
- Brand
- WolfTooth
Fit and specifications
- Manufacturer
- Wolf Tooth Components
- Model
- MK0 DEL Gravel Race Clipless Pedal
- Product number
- DEL-CLPS-MK0-SGR
- EAN / GTIN
- 810159403481
- Pedal type
- single-sided clipless pedal
- Cleat system
- Shimano SPD compatible, 2-bolt
- Weight
- 174 g / pair
- Pedal thickness
- 14.5 mm
- Support surface
- 559 mm²
- Factory setting
- 55 mm
- Float / lateral foot movement
- 5°
- Release angle
- 12°
- Pedal body
- CNC-machined 6061-T6 aluminium
- Axle
- 6Al-4V titanium, DLC-coated
- Locking mechanism
- stainless steel
- Mounting parts
- PVD-coated titanium
- Pedal thread
- 9/16"-20
- Maximum permitted rider weight
- 90 kg
- Colour
- Shadow Gray
- Serviceable design
- yes
- Manufacturing
- CNC-machined and assembled in Minnesota, USA
