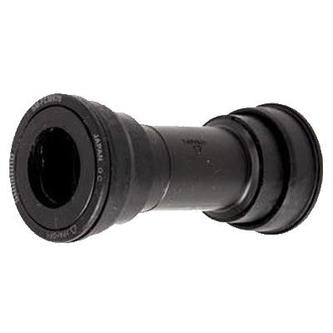

Shimano XTR SM-BB94-41A Press-fit Bottom Bracket
Prices include VAT.
Shimano XTR SM-BB94-41A is a lightweight Press-Fit Hollowtech II bottom bracket bearing for 89.5/92 mm MTB frames. Suitable for Shimano 24 mm crank axles.
Shipping
Delivery methods, shipping costs and the estimated delivery time are shown at checkout before you confirm your order. You will receive tracking details by email when your parcel is on its way. More about shipping
Store pickup
Choose pickup from our Pitäjänmäki store at checkout and pay no shipping costs. We email you when your order is ready for pickup at Konalantie 9, Helsinki.
Returns and exchanges
Online orders have a 14-day right of withdrawal from the day you receive the product. You may examine the product as you would in a store. Please return it in its original packaging if possible. Return instructions
Warranty and service
Products come with a manufacturer's or importer's warranty, which does not limit your rights under consumer protection law. We handle warranty claims for you: contact us or bring the product to our store. Our service work comes with a 3-month warranty.
Description
The Shimano XTR SM-BB94-41A is a lightweight, high-quality Press-Fit Hollowtech II bottom bracket for Shimano MTB cranksets with a 24 mm spindle. It is designed for 89.5/92 mm wide Press-Fit frames with a bottom bracket shell inner diameter of 41 mm. The XTR-level construction offers low weight, smooth rotation, and excellent sealing for the demanding conditions of mountain biking.
The SM-BB94-41A is the right choice when the bike uses a Press-Fit BB92 / PF41 MTB bottom bracket standard and a Shimano Hollowtech II compatible crankset. It fits, for example, many Shimano XTR, XT, SLX, and Deore MTB cranks, provided the crank spindle is 24 mm and the frame’s bottom bracket standard matches.
The Press-Fit design makes the bottom bracket a lightweight and clean solution for modern mountain bike frames. The bearing cups are pressed directly into the frame's bottom bracket shell using the correct installation tool. Improved sealing helps protect the bearings from dirt and moisture, and the XTR-level finish makes the bottom bracket a great choice for XC, trail, and light enduro use.
Shimano XTR SM-BB94-41A - technical specifications and compatibility
The Shimano SM-BB94-41A is a Press-Fit Hollowtech II bottom bracket designed for mountain bike use. It differs from the threaded BSA SM-BB93 bottom bracket in that the BB94-41A is not threaded into the frame, but rather the bearing cups are pressed into a Press-Fit bottom bracket shell.
The bottom bracket fits 89.5 mm and 92 mm wide Press-Fit MTB frames with a bottom bracket shell inner diameter of 41 mm. It is intended for Shimano’s 24 mm Hollowtech II crank spindles. Compatibility should always be checked according to the frame's bottom bracket standard and the crankset before installation.
Technical specifications
- Product: Shimano XTR SM-BB94-41A
- Product type: bottom bracket / Press-Fit bottom bracket
- Series: Shimano XTR
- Bottom bracket type: Hollowtech II
- Installation method: Press-Fit
- Bottom bracket standard: BB92 / PF41 MTB
- Bottom bracket shell width: 89.5 / 92 mm
- Bottom bracket shell inner diameter: 41 mm
- Crank spindle diameter: 24 mm
- Usage: MTB, XC, trail, mountain biking
- Bearing cup material: resin / composite
- Bearings: sealed bearings
- Color: black
- Weight: approx. 55–58 g
- Manufacturer code: ISMBB9441A
- EAN: 4524667997290
Specifications
- Brand
- Shimano
Specifications
- Product
- Shimano XTR SM-BB94-41A
- Product type
- bottom bracket / Press-Fit bottom bracket
- Series
- Shimano XTR
- Bottom bracket type
- Hollowtech II
- Mounting method
- Press-Fit
- Bottom bracket standard
- BB92 / PF41 MTB
- Bottom bracket shell width
- 89.5 / 92 mm
- Bottom bracket shell inner diameter
- 41 mm
- Crank axle diameter
- 24 mm
- Use
- MTB, XC, trail, mountain biking
- Bearing cup material
- resin / composite
- Bearings
- sealed bearings
- Colour
- black
- Weight
- approx. 55–58 g
- Manufacturer code
- ISMBB9441A
- EAN
- 4524667997290
