Shimano GRX ST-RX810-R 11-speed gravel bike rear derailleur/brake lever and brake caliper

Shimano GRX ST-RX810-R 11-speed gravel bike rear derailer and brake lever and brake caliper, right
Shimano GRX ST-RX810-R 2x11 brake/shift lever + brake caliper, right

• Complete right-hand shift lever and rear brake
• Right lever
• Brake hose 1700mm
• 11-speed
• Excellent heat dissipation properties (Ice Tech)
• Lever and ergonomics designed for gravel-type use
• Anti-slip brake lever
• Shifting is as smooth as in top-tier road systems

Shimano GRX ST-RX810 + BR-RX810 Hydraulic Disc Brake - Flat Mount - 11-speed - Set RW

Shimano GRX - Explore Beyond

Instead of telling gravel riders what they needed, Shimano asked them what they wanted for their offroad adventures. The result are the Shimano GRX components which represent the first series especially developed for riding on rough roads and through gravel. The Shimano GRX sets itself apart from the rest of the component world with its gravel specific ergonomics, optimized gearing options, rugged reliability as well as a quiet and stable drivetrain.

Shimano GRX shift/brake set consisting of the ST-RX810 STI lever with SERVOWAVEtechnology and the hydraulic BR-RX810 caliper with ceramic pistons for excellent braking performance.

Shimano GRX ST-RX810 shift/brake lever

The Shimano GRX ST-RX600 dual control lever provides Gravel inspired ergonomics both for the bracket design to accommodate every kind of drop bar and for the lever itself featuring a curved shape and an anti-slip coating for greater mixed-terrain control. In terms of shifting performance the 2x11-speed GRX STI levers are at the same high level like Shimano's top tier group's road bike shifters. In contrast the braking performance is optimized by the brake lever's rotary axle which is positioned 18 mm higher than usual and Shimano's SERVOWAVEtechnology improving the lever's modulation ability. In order to meet the individual needs of the driver, the hydraulic brake lever offers reach and free stroke adjustment as well.

SERVOWAVE

Because the brake lever absorbs a lot of braking distance right at the start of its movement, the brake pads have disc contact more quickly and it remains more lever travel to adjust braking force. That is why SERVO WAVE brake systems are characterized by faster response, higher performance and shorter idle travel.

Shimano GRX BR-RX810 disc brake caliper

Never hesitate to tackle rough surfaces with the hydraulic Shimano GRX BR-RX810 caliper. In doing so Ice Techensure excellent heat dissipation while the BR-RX810's 2 ceramic pistons guarantee excellent braking performance under all conditions. The Flat Mount system makes it possible to attach the disc brake caliper directly at frame or fork. Trouble-free and simple maintenance is provided by the proven One Way Bleedingconcept and the Easy Hose Joint Systemwhich simplifies brake hose exchanges (brake hose sold separately).

Ice Technologies

The fading which can occur to disc brake rotor and pad when braking on a long downhill ride for instance, has a negative impact on the braking performance. Shimano has adopted Ice-Tech disc brake rotor and brake pad to realize the cooling technology for consistent performance. The disc brake rotor blade which has a 3 layer-sandwich structure of stainless steel, aluminum and stainless steel, provides better radiation performance achieving a lower surface temperature. Aluminium cooling fins have been adopted the brake pad improving the radiation performance even further. In combination the disc brake rotor blade and the radiator fin provide long pad life, less noise, less fade and lightweight.

J-Kit (Easy Hose Joint System)

At brake systems with J-Kit hose joint the brake lever features an integrated olive what makes an easy brake hose installation and removal possible.

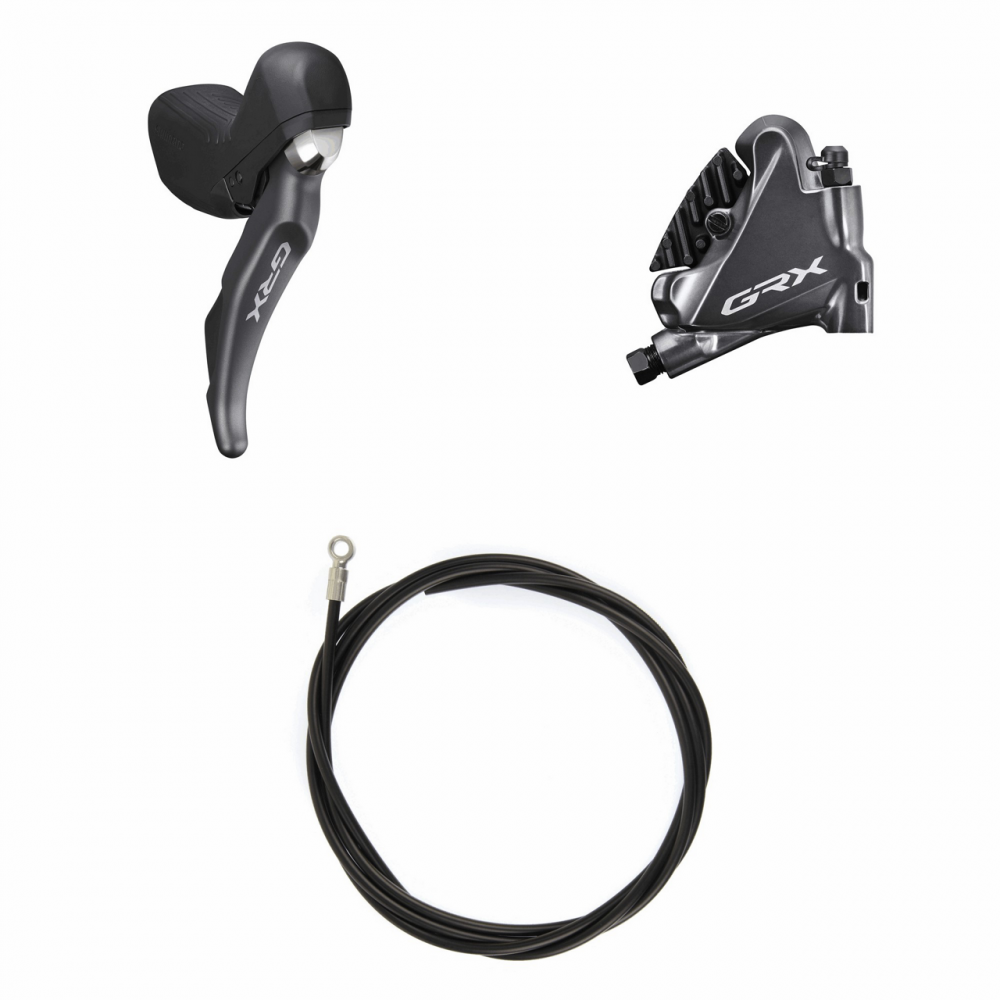

Included in delivery: right STI lever + rear caliper,
filled and bleed,
incl. shift cable, casing, SM-BH90-JK-SSR brake hose and L03A Resin brake pads with cooling fins
Material: STI housing: resin, steel
brake lever, caliper: aluminium (painted)
piston: ceramic
