Shimano GRX Di2 1x12s BR-RX825-L/BR-RX820-F Disc Brake Set Left/Front Brake

Shimano GRX 1x12s BR-RX825-L/BR-RX820-F Disc Brake Set Left/Front Brake

GRX Di2 – Gravel Goes Wireless.

GRX series, whose components are designed specifically for the 1x12 wireless shifting system.

Shimano GRX disc brake set, consisting of the BL-RX825 lever and hydraulic BR-RX820 caliper. The proven One Way Bleeding system ensures smooth and simple maintenance, and the Easy Hose Joint System makes changing the brake hose significantly easier.

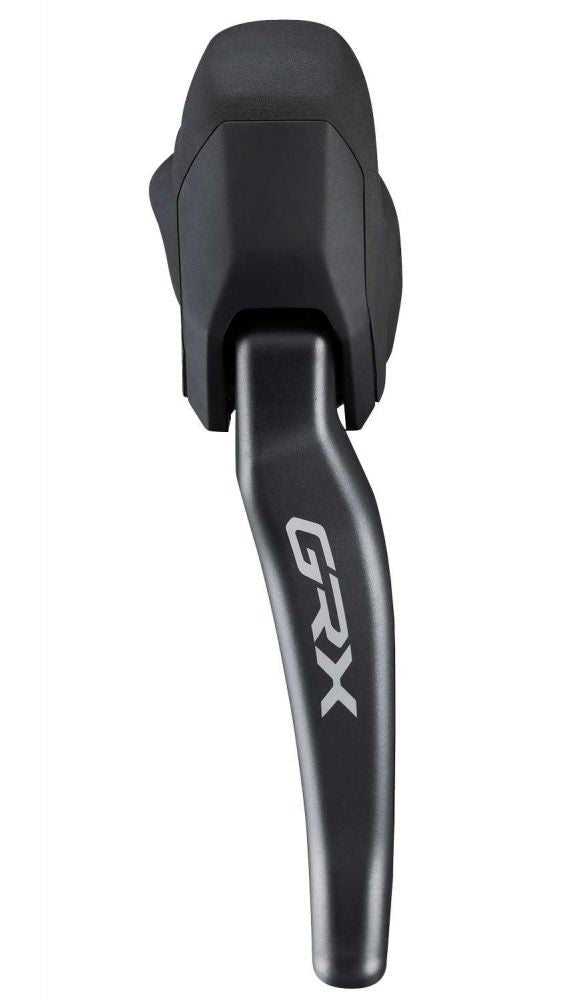

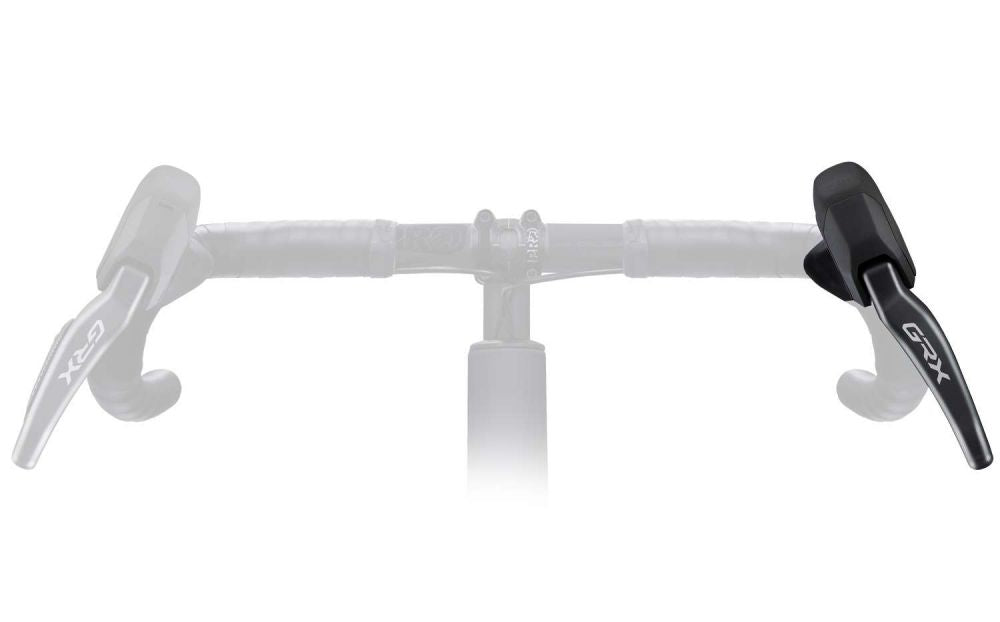

Shimano GRX BL-RX825-L Brake Lever

The hydraulic disc brake lever completes the GRX series' wireless lineup, which was introduced with the RD-RX827 rear derailleur and is tailored for 1x12 shifting. The lever designed exclusively for braking weighs 19.5 grams less than the Dual Control version. In addition, it offers the same ergonomic benefits as the ST-RX825 brake and shift levers, with ribbed surfaces and a non-slip lever. Like its counterpart equipped with shifting functionality, its design is particularly well suited for gravel handlebars with flare.

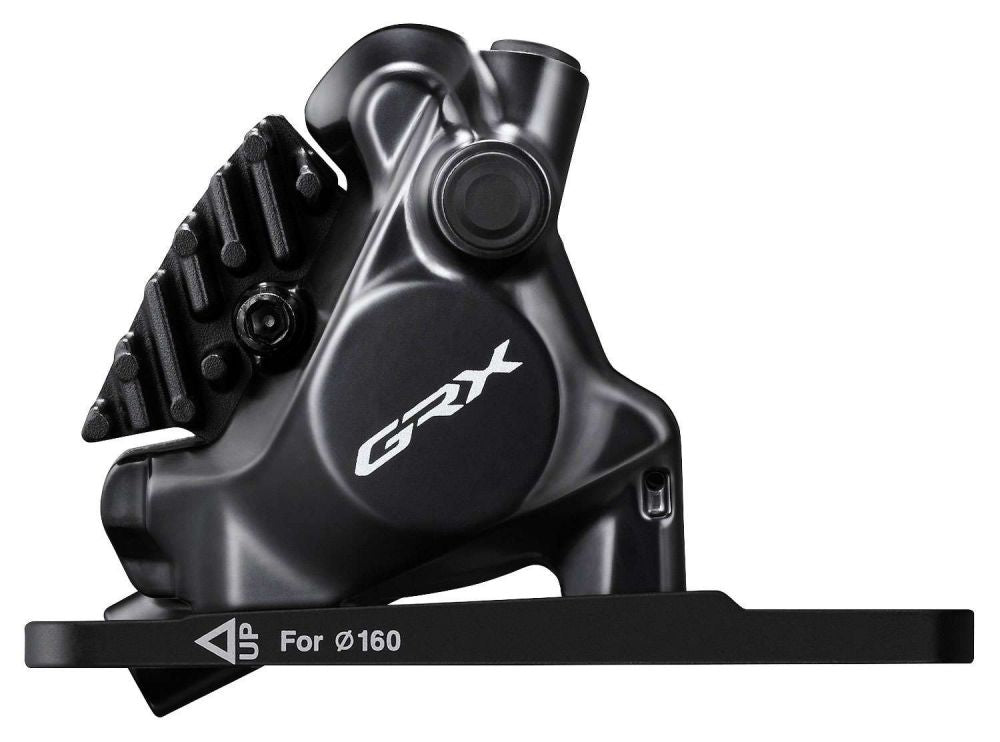

Shimano GRX BR-RX820-F Disc Brake Caliper

The hydraulic GRX BR-RX820 hydraulic brake caliper represents superior braking power in difficult terrain. Thanks to improved modulation and a faster-engaging pressure point, gravel riders experience a completely new sense of control. In addition, despite its flatter design, the Flatmount disc brake caliper is quieter and easier to maintain than ever before. The 10% increase in the gap between brake pads reduces noise, and the proven One Way Bleeding system makes maintenance easier.

SERVO WAVE | Because the brake lever dampens a large part of the braking stroke right at the beginning of its movement, the brake pads come into contact with the brake rotor faster, and more of the brake lever's movement is left for adjusting the braking force. Thus, SERVOWAVE brake systems are characterized by a faster response, better performance, and shorter freeplay.

J-Kit (Easy Hose Joint System) | In brake systems with a J-Kit brake hose connection, the brake lever has an integrated compression fitting (olive), which makes installing and removing the brake hose much easier overall.

Ice Technologies | To maintain high braking performance during prolonged continuous use, Shimano has developed Ice-Tech cooling technology for brake rotors and brake pads. Brake pads equipped with Ice Technologies technology have aluminum cooling fins that dissipate heat more effectively.

---

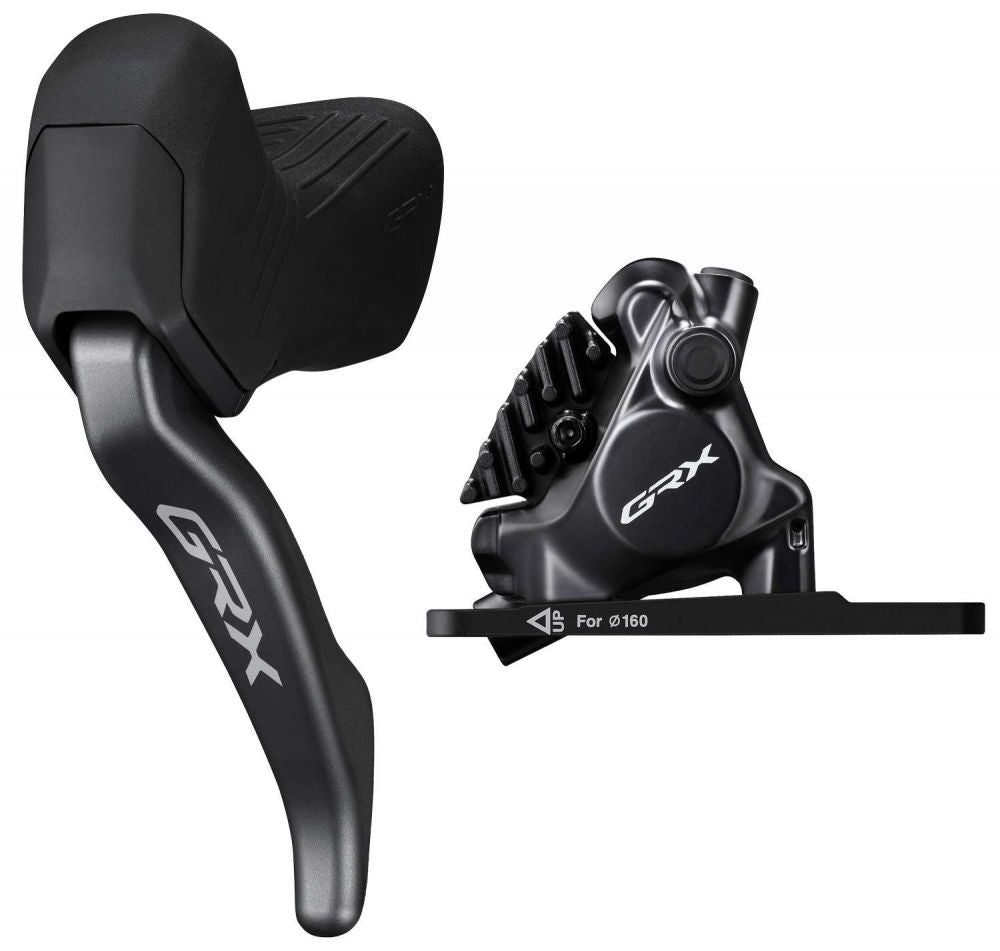

Shimano GRX BL-RX825+BR-RX820 Disc Brake front

New for the GRX 1 x 12-speed is the BL-RX825-L hydraulic brake lever in combination with the BR-RX820 flat-mount brake calliper for disc brakes. This brake-only lever delivers the same ergonomic excellence of SHIMANO’s RX825 DUAL CONTROL LEVERS, including raised hoods with ribbed surfaces and anti-slip brake levers, but foregoes any electronic shift buttons for a lighter, simpler 1x setup option.

For your riding freedom: the Gravel GRX BL-RX825-L + BR-RX820 disc brake from Shimano

Advanced Di2 Button Functions – Shifting Versatility Whether utilizing the new BL-RX825-L brake lever or sticking with a pair of GRX ST-RX825 DUAL CONTROL LEVERS, Shimano 1x12-speed GRX delivers a variety of shifting possibilities thanks to Di2’s customizable buttons as well as add-on accessory switches.
Carried over from previous generations, the GRX RX825 DUAL CONTROL LEVERS feature three Di2 buttons – two buttons are located on the shift paddles while a third button is found on the inside of the hood. The RX825 levers also allow for accessory shift buttons, which can be placed on the tops, drops, or aero bars for additional shifting options. Each Di2 button mentioned above can be assigned various functions, including shifting the rear derailleur, controlling compatible lights and cycle computers, or it can be used as a remote function button for the rear derailleur. With this last option, riders can make shifting trim adjustments on the fly without taking their hands off the handlebars.

SHIMANO marks its debut in the fully wireless drop bar segment with the new 1x12-speed GRX Di2 gravel-specific components. Leveraging the wireless cockpit introduced with SHIMANO’s 2x12 speed road and gravel groups and incorporating the completely wireless technology debuted on the M9200- series XTR rear derailleur, GRX RX827 features a fully wireless drivetrain designed for performance, durability, and versatility. With RX827, the GRX lineup now includes a comprehensive range of mechanical and electronic shifting options in both 1x12 and 2x12-speed configurations, allowing riders to tailor their drivetrains for their unique gravel riding demands.
GRX RX827 is designed to be close to the rider, offering the freedom to choose without being tied down. With no special frame requirements, it can be easily installed on any gravel bike you own. This allows you to upgrade your favorite bike with the latest technology and take it on even more adventures. Centered around the RD-RX827 wireless rear derailleur, GRX 1x12-speed brings unmatched chain management and precise shifting to gravel riders.
The new system is engineered for seamless performance across varied terrains, whether racing, exploring backroads, or embarking on all-day adventures.

• Fully Wireless Di2 Platform - Designed for ultimate reliability, the wireless Di2 system offers fast, precise shifting and compatibility with all SHIMANO 12-speed wireless shifters (GRX, DURA-ACE, ULTEGRA, SHIMANO 105 Di2 drop bar options, as well as XTR and DEORE XT flat bar Di2 models).
• Robust Gravel Drivetrain – Borrowing its design from SHIMANO’s MTB Di2 line, the RX827 rear derailleur features the same low-profile design, skid plate, protected battery, and automatic impact recovery function.
• Refined Ergonomics – Enhanced grip, clean cockpit design, and unparalleled customization for superior handling and comfort.
• Expanded Versatility – Added GRX component options allow riders to optimize performance based on terrain, style, and personal preferences.

The new GRX 1x12-speed drivetrain pairs the RD-RX827 wireless rear derailleur with SHIMANO’s existing RX825 Di2 DUAL CONTROL LEVERS, RX820 crankset, brakes, and XT 10-51T cassette. This combination delivers SHIMANO’s hallmark Di2 performance in a sleek, robust 1x12-speed package. Riders can choose between 40T or 42T chainrings and pair them with SHIMANO’s line of 10-51T MICRO SPLINE cassettes. Similarly, RX827 offers an electronic option for drop bar mountain/adventure bikes that utilize mountain bike crank standards. Whether climbing steep trails or cruising flat stretches, the GRX system adapts to any riding style or terrain.

---

Features - Shimano GRX BL-RX825-L + BR-RX820 Disc Brake front for Di2 1x12

• BL-RX825-L - Hydraulic Disc Brake Lever:
• 1x12-speed brake lever option
• Gravel-specific brake lever and bracket ergonomics
• Flared drop bar optimization
• Anti-slip coating on brake lever surface
• 19.5 grams lighter (188 grams for BL-RX825-L versus 207.5 grams for ST-RX825-L)
• Never hesitate to tackle rough surfaces
• Excellent heat dissipation
• ICE TECHNOLOGIES
• Flat mount
• Simple set up and maintenance
• Convenient tool access
• Easy hose joint system (J-kit)
• Simple wheel replacement
• Easy and clean bleeding system
• ONE WAY BLEEDING

Product features

• Use: Gravel, Cyclocross
• Group: GRX RX827
• Model: BL-RX825-L
• Type: Brake lever for Di2 1x12
• Handlebar mounting: left
• Lever reach adjust: Yes, with tool
• Handlebar diameter: 23.8mm/24.2mm
• Brake-type: Hydraulic Disc Brake
• Brake caliper: BR-RX820-L
• Brake mounting: Flat-Mount
• Brake pads: L05A-RF Resin with Fin
• Brake hose: SM-BH90-JK-SS front 1000mm (shortable)
• One-Way bleeding: Yes
• Brake fluid: Mineral oil
• Recommended brake rotor: SM-RT64, SM-RT70, SM-RT800

Material

• Lever: Aluminum
• Caliper: Aluminum

Color

• Series color

Weight

• approx. 188g/BL-RX825-L | 134g/BR-RX820 (manufacturer information)

---

Scope of delivery

• 1 x GRX BL-RX825-L Brake Lever
• 1 x GRX BR-RX820 Flat-Mount Brake Caliper
• 1 x Flat-Mount Adapter 140mm/160mm
• 1 x Brake Pads L05A-RF Resin with Fin
• 1 x Brake Hose SM-BH90-JK-SS 1000mm (shortable)
• 2 x Screw for brake caliper
• 1 x Tube Joint Kit
• J-Kit - The brake hose SM-BH90-JK-SS is filled with mineraloil and pre-mountedon on the caliper BR-RX820!
