Shimano Flat Mount Jarisaddle mounting screws
Prices include VAT.
Genuine Shimano Flat Mount brake caliper mounting bolts Type A, B, B2, C and C2. Select the correct bolt according to the brake caliper and frame.
Shipping
Delivery methods, shipping costs and the estimated delivery time are shown at checkout before you confirm your order. You will receive tracking details by email when your parcel is on its way. More about shipping
Store pickup
Choose pickup from our Pitäjänmäki store at checkout and pay no shipping costs. We email you when your order is ready for pickup at Konalantie 9, Helsinki.
Returns and exchanges
Online orders have a 14-day right of withdrawal from the day you receive the product. You may examine the product as you would in a store. Please return it in its original packaging if possible. Return instructions
Warranty and service
Products come with a manufacturer's or importer's warranty, which does not limit your rights under consumer protection law. We handle warranty claims for you: contact us or bring the product to our store. Our service work comes with a 3-month warranty.
Description
Original Shimano Flat Mount Mounting Screw
Original Shimano mounting screw for Flat Mount brake calipers and brake adapters. Available in Type A, B, C, and C2 versions for different mounting applications.
Select the screw based on how the brake caliper, adapter, and frame are mounted. For Type C and C2 options, the stated 20, 25, or 30 mm refers to the thickness of the frame's Flat Mount mounting point, not the overall length of the screw.
Types A, B, C, and C2 for Different Applications
Type A Y8N204000 mounts a front brake Flat Mount adapter to the fork.
Type B Y8N206000 is a brake caliper mounting screw for a Flat Mount adapter.
Types C and C2 are screws designed for rear brake Flat Mount mounting. The correct length depends on the thickness of the frame's mounting point.
Type C:
20 mm frame = 33 mm screw, Y8PU08010
25 mm frame = 38 mm screw, Y8PU08020
30 mm frame = 43 mm screw, Y8PU08030
Type C2:
20 mm frame = 29 mm screw, Y2HW08010
25 mm frame = 34 mm screw, Y2HW08020
30 mm frame = 39 mm screw, Y2HW08030
Types C and C2 are not the same screw. Check the screw type required by the brake caliper and frame before ordering.
Unit of sale: 1 original Shimano mounting screw.
Compatibility
Original Shimano Flat Mount brake caliper mounting screws for Shimano Flat Mount brake calipers on road, gravel, and cyclocross bikes.

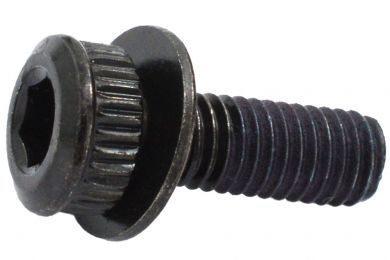

Type A – Y8N204000
Mounting screw for a front brake caliper Flat Mount mounting adapter. Used on, for example, Shimano Ultegra BR-R8170 / BR-R8070, 105 BR-R7170 / BR-R7070, and GRX BR-RX820 / BR-RX810 brakes.

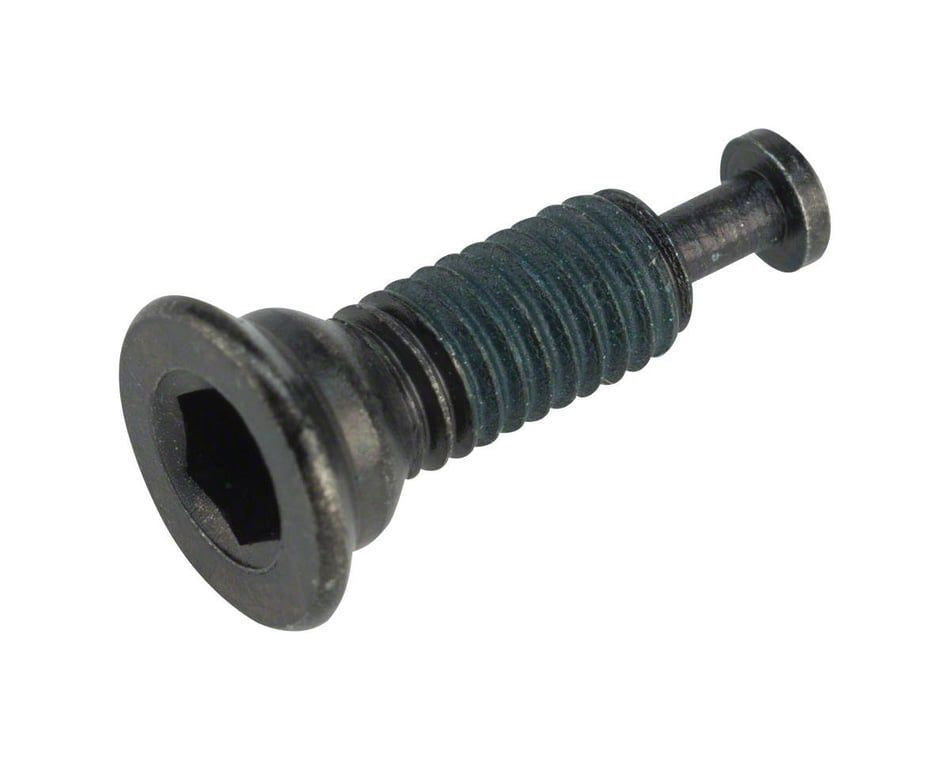

Type B – Y8N206000
Mounting screw for a front brake caliper to a Flat Mount adapter. Used on many Shimano Road and GRX Flat Mount brakes. Older calipers use Type B screws, while one of the mounting screws on newer models is Type B2.

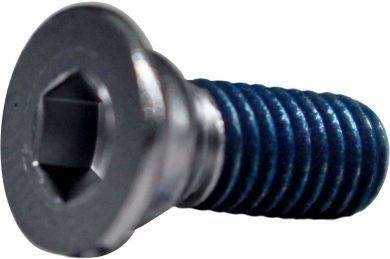

Type B2 – Y2HW06010
The second mounting screw for a newer generation front brake caliper. Compatible with, for example, Shimano Dura-Ace BR-R9270, Ultegra BR-R8170, 105 BR-R7170, and GRX BR-RX820 brake calipers. The B2 screw is used together with the correct Type B screw.

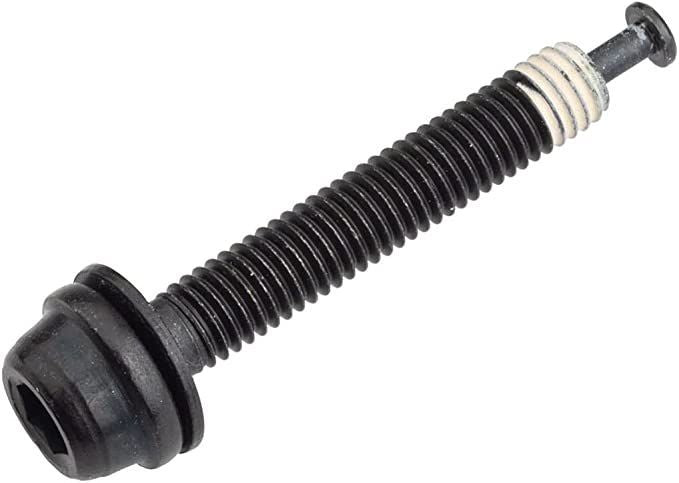

Type C – Y8PU08010 / Y8PU08020 / Y8PU08030
Rear brake caliper Flat Mount mounting screw. Select the appropriate length based on the thickness of the frame's Flat Mount mounting point.
20 mm frame – Y8PU08010 – 33 mm screw
25 mm frame – Y8PU08020 – 38 mm screw
30 mm frame – Y8PU08030 – 43 mm screw
Type C screws are used on Shimano Road and GRX Flat Mount rear brakes. In newer brake calipers, Type C is used together with a Type C2 screw. Older models, such as BR-R8070, BR-R7070, and BR-RX810, use Type C screws for rear mounting without a C2 version.

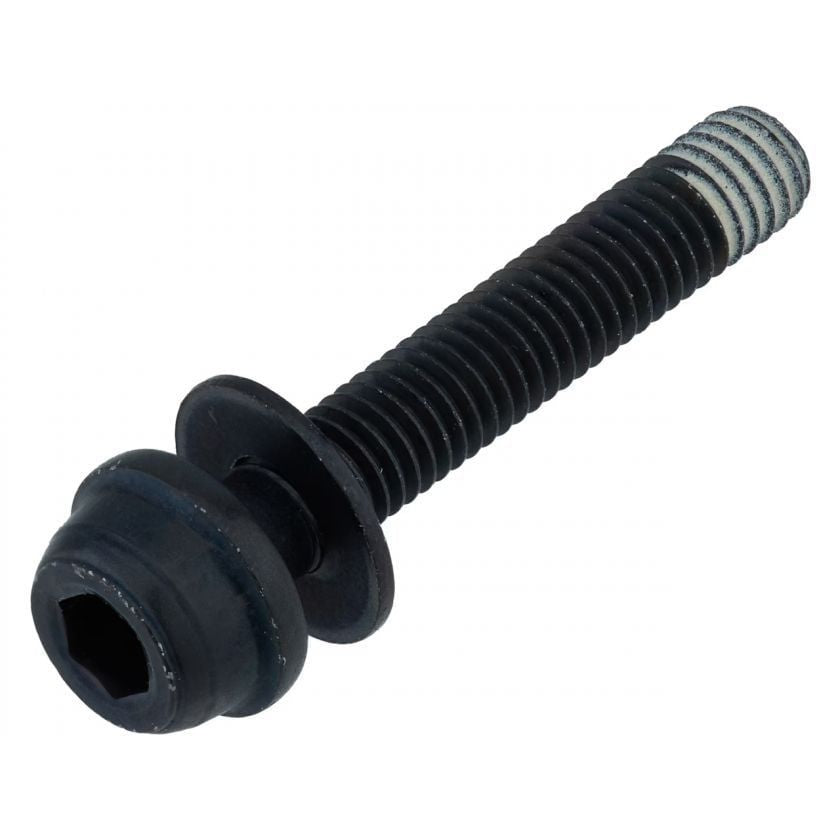

Type C2 – Y2HW08010 / Y2HW08020 / Y2HW08030
The second mounting screw for a newer generation Flat Mount rear brake caliper. Used together with the corresponding Type C screw on, for example, Shimano Dura-Ace BR-R9270, Ultegra BR-R8170, 105 BR-R7170, and GRX BR-RX820 brake calipers.
20 mm frame – Y2HW08010 – 29 mm screw
25 mm frame – Y2HW08020 – 34 mm screw
30 mm frame – Y2HW08030 – 39 mm screw
Note: For Type C and C2 options, the stated 20, 25, or 30 mm refers to the thickness of the frame's Flat Mount mounting point, not the overall length of the screw. Always check the correct screw type and frame mounting thickness before ordering.
Shimano Product Codes and EAN Codes
Type A
Y8N204000
EAN 4524667353676
Type B
Y8N206000
EAN 4524667353645
Type C 20 mm
Y8PU08010
EAN 4524667634768
Old Shimano code: Y8N208010
Type C 25 mm
Y8PU08020
EAN 4524667634775
Old Shimano code: Y8N208020
Type C 30 mm
Y8PU08030
EAN 4524667634782
Old Shimano code: Y8N208030
Type C2 20 mm
Y2HW08010
EAN 4550170150488
Old Shimano code: Y2J708010
Type C2 25 mm
Y2HW08020
EAN 4550170150495
Old Shimano code: Y2J708020
Type C2 30 mm
Y2HW08030
EAN 4550170150501
Old Shimano code: Y2J708030
Specifications
- Brand
- Shimano
Type A, B, C and C2 for different uses
- Sales unit
- 1 original Shimano mounting screw.
Compatibility
- Type A – Y8N204000
- Mounting bolt for the front caliper Flat Mount adapter. Used for example on Shimano Ultegra BR-R8170 / BR-R8070, 105 BR-R7170 / BR-R7070 and GRX BR-RX820 / BR-RX810 brakes.
- Type B – Y8N206000
- Mounting bolt for the front caliper to a Flat Mount adapter. Used on several Shimano Road and GRX Flat Mount brakes. Older calipers use Type B bolts, while on newer models one of the mounting bolts is a Type B2.
- Type B2 – Y2HW06010
- The second mounting bolt for newer-generation front calipers. Compatible with, for example, Shimano Dura-Ace BR-R9270, Ultegra BR-R8170, 105 BR-R7170 and GRX BR-RX820 calipers. The B2 bolt is used together with the correct Type B bolt.
Shimano product codes and EAN codes
- Old Shimano code
- Y8N208010
- Old Shimano code
- Y8N208020
- Old Shimano code
- Y8N208030
- Old Shimano code
- Y2J708010
- Old Shimano code
- Y2J708020
- Old Shimano code
- Y2J708030
