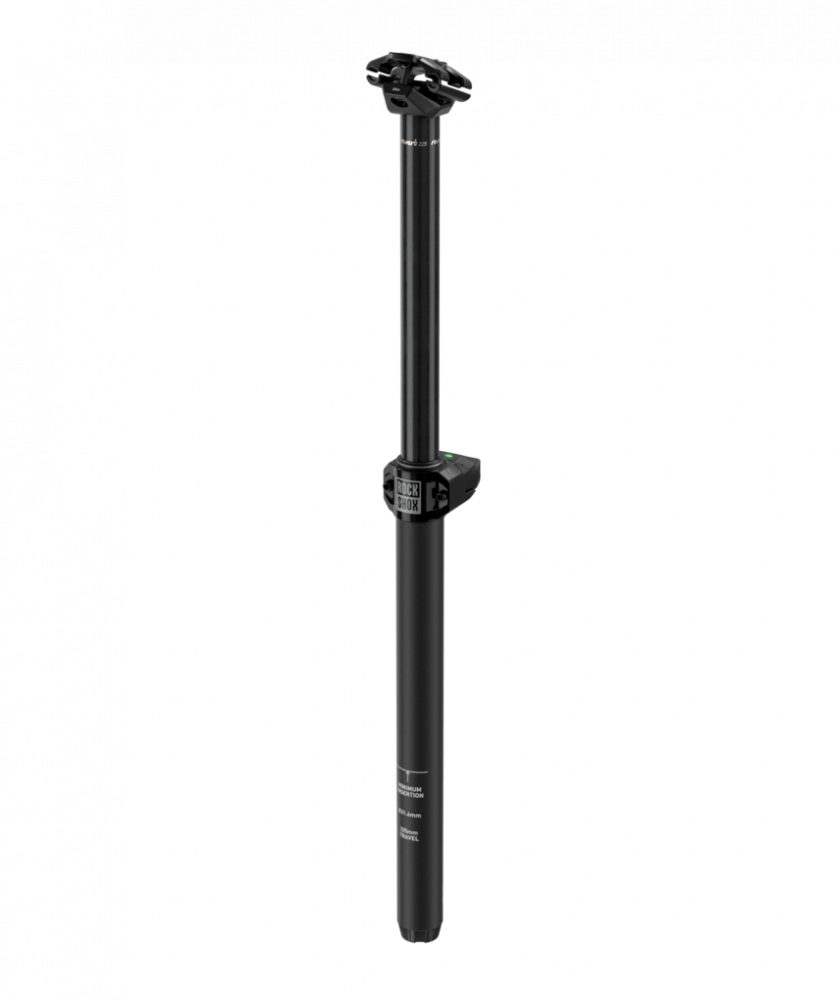

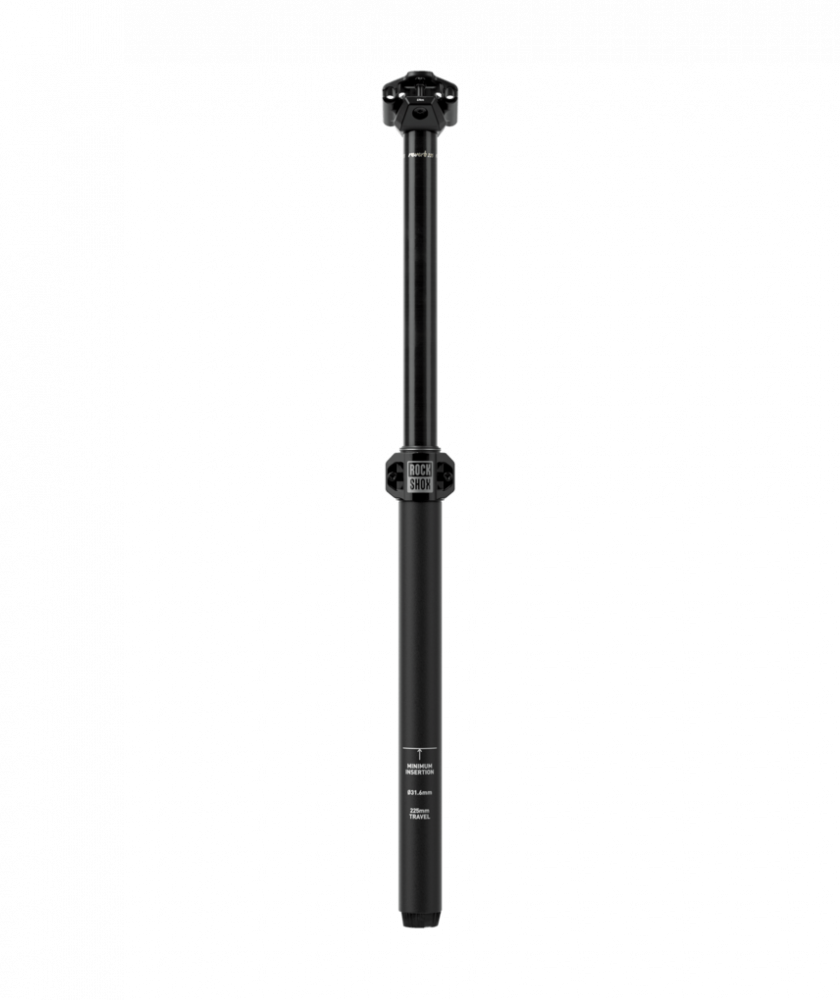

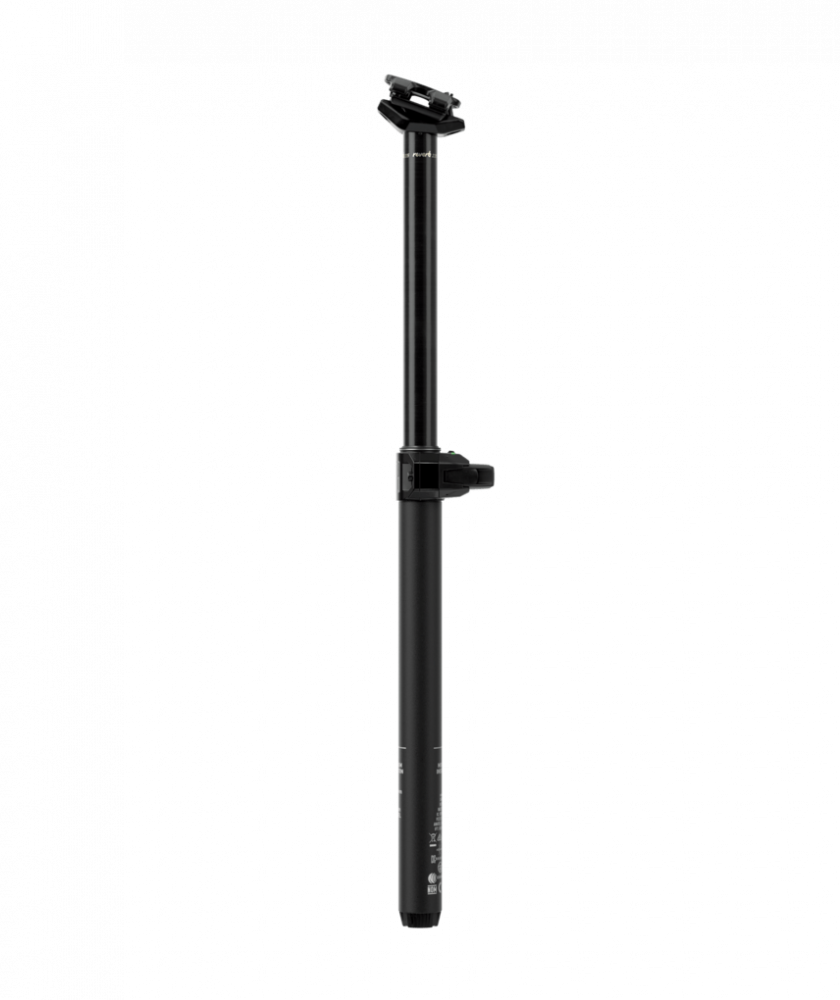

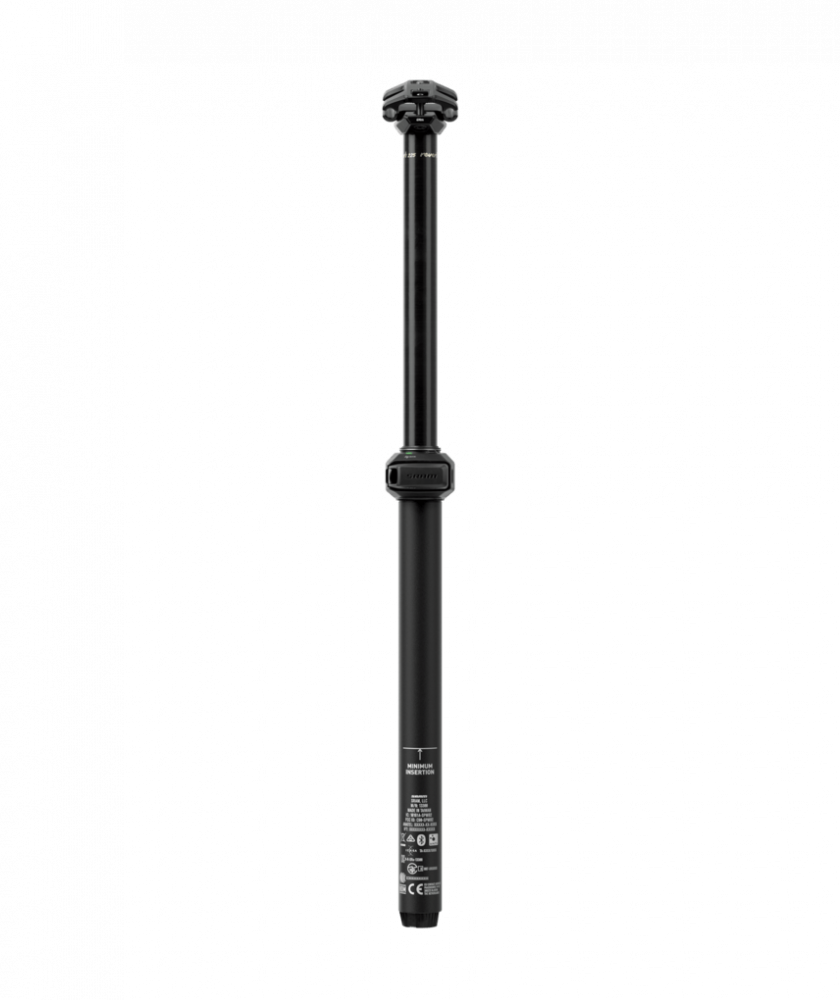

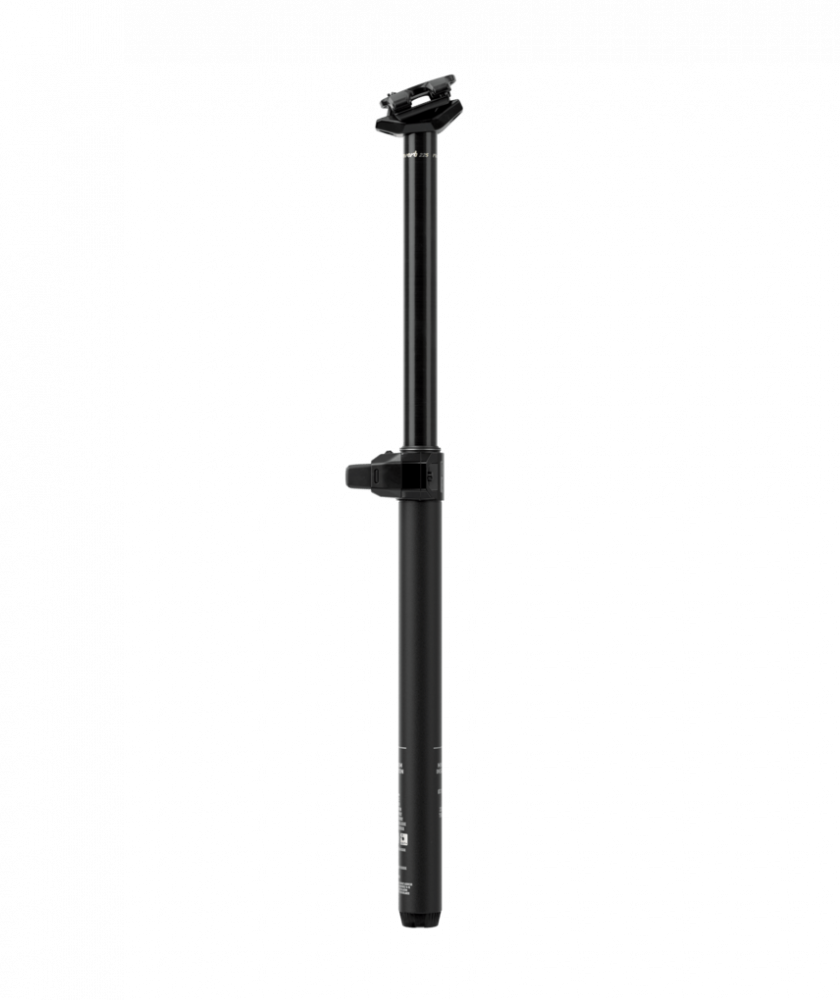

ROCKSHOX Reverb AXS Dropper Post 2025

RockShox Reverb AXS 2025 Dropper Post – Wireless MTB Dropper Post

RockShox has released the completely redesigned Reverb AXS dropper post for 2025, offering an even longer travel, improved construction, and wireless operation. ​

Key features:

• Travel and sizes: The new Reverb AXS is available with travel options of 100 mm, 125 mm, 150 mm, 175 mm, 200 mm, 225 mm, and 250 mm, making it the dropper post with the longest travel on the market. Diameter options are 30.9 mm, 31.6 mm, and 34.9 mm. ​

• Air-Over-Air construction: The post's fully air-powered "air-over-air" construction improves durability and makes maintenance easier. This design also enables ActiveRide™ functionality, which provides suspension at the saddle, improving comfort and control on technical climbs. ​

• Wireless AXS integration: The Reverb AXS integrates seamlessly into SRAM's AXS ecosystem, enabling wireless control and simplifying bike handling. A shared battery and charger with other AXS components reduce cabling and complexity. ​

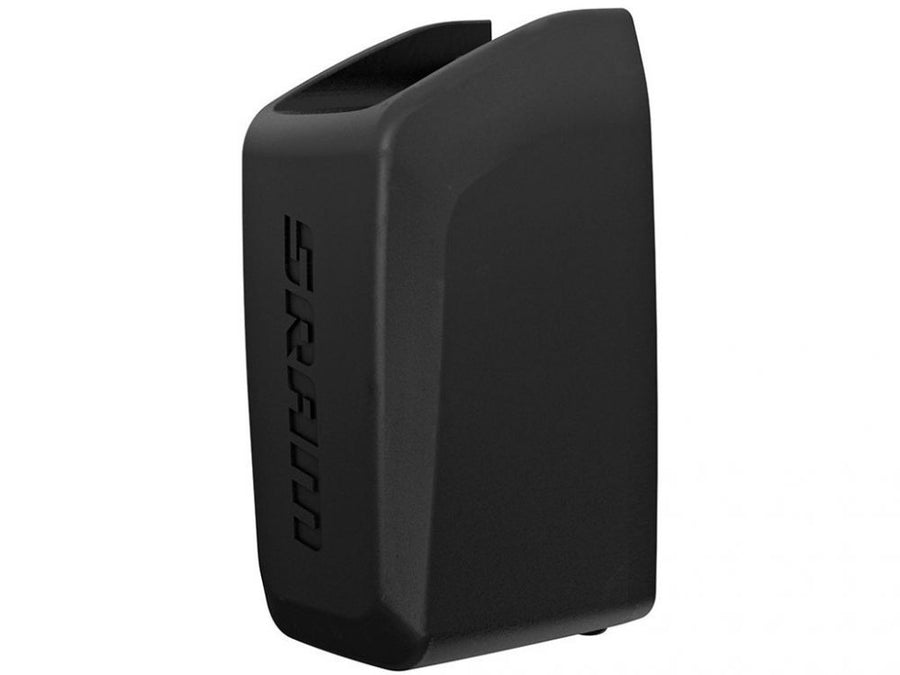

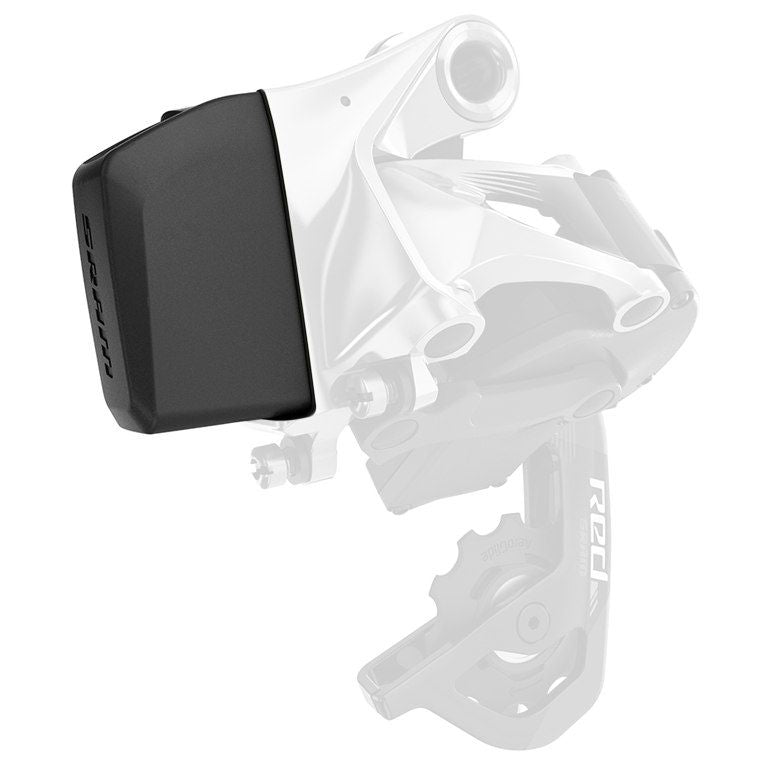

• Improved battery placement: Moving the battery and control unit closer to the seatpost collar reduces the risk of contact with the rear wheel and improves the battery's protection from dirt and moisture. ​

• Compatibility: The post is compatible with all AXS controls, but does not support wireless Blip buttons or communicate with the Flight Attendant suspension adjustment system. ​

The redesigned RockShox Reverb AXS offers top-tier performance and comfort for mountain bikers who value long travel, wireless functionality, and easy maintenance.​

Description

The Reverb AXS completes the AXS ecosystem by providing the rider with customizable controls, easy installation, and a battery, charger, and controller that are compatible with other AXS components. It is designed for GX, X0, and XX Series riders, and the Reverb AXS ensures smooth control and reliability for all users who use a dropper post ranging from 100 mm to 250 mm – with improved battery capacity.

Find the right travel

Finding the perfect dropper post length for your bike has never been easier. With just two quick measurements, the Reverb AXS Length Calculator calculates the right option for you. Try it yourself.

Features

• New air-over-air construction, which is even more durable and long-lasting

• ActiveRide provides a supple platform for technical e-bike climbs when the post is not fully extended

• Compatible with all seat rail types (7x7, 7x9, and 7x10)

  Technical specifications

• Post diameter: 30.9 mm, 31.6 mm, 34.9 mm

• Travel: 100 mm, 125 mm, 150 mm, 175 mm, 200 mm, 225 mm, 250 mm

• Total post length:
  348.2 mm, 352.8 mm, 398.2 mm, 402.8 mm,
  448.2 mm, 452.8 mm, 498.2 mm, 502.8 mm,
  548.2 mm, 552.8 mm, 598.2 mm, 602.8 mm,
  648.2 mm, 652.8 mm

• Controller: AXS controller sold separately

• Seat rail compatibility: Round / oval (7x9 & 7x10)

• E-bike compatible: Yes

• Minimum frame tube insertion depth: 80 mm, 110 mm, 120 mm, 160 mm

• Maximum frame tube insertion depth:
  185.7 mm, 188.6 mm, 210.7 mm, 213.6 mm,
  235.7 mm, 238.6 mm, 260.7 mm, 263.6 mm,
  285.7 mm, 288.6 mm, 310.7 mm, 313.6 mm,
  335.7 mm, 338.6 mm

• Minimum visible height:
  162.5 mm, 164.2 mm, 187.5 mm, 189.2 mm,
  212.5 mm, 214.2 mm, 237.5 mm, 239.2 mm,
  262.5 mm, 264.2 mm, 287.5 mm, 289.2 mm,
  312.5 mm, 314.2 mm

• Maximum visible height:
  268.2 mm, 272.8 mm, 318.2 mm, 322.8 mm,
  368.2 mm, 372.8 mm, 418.2 mm, 422.8 mm,
  438.2 mm, 442.8 mm, 478.2 mm, 482.8 mm,
  488.2 mm, 492.8 mm

• Weight: 712 g

• Weight based on: 200 mm / 31.6 mm without battery – Battery 25 g
