PIVOT VAULT TEAM FORCE XPLR AXS Reynolds Copper Comet

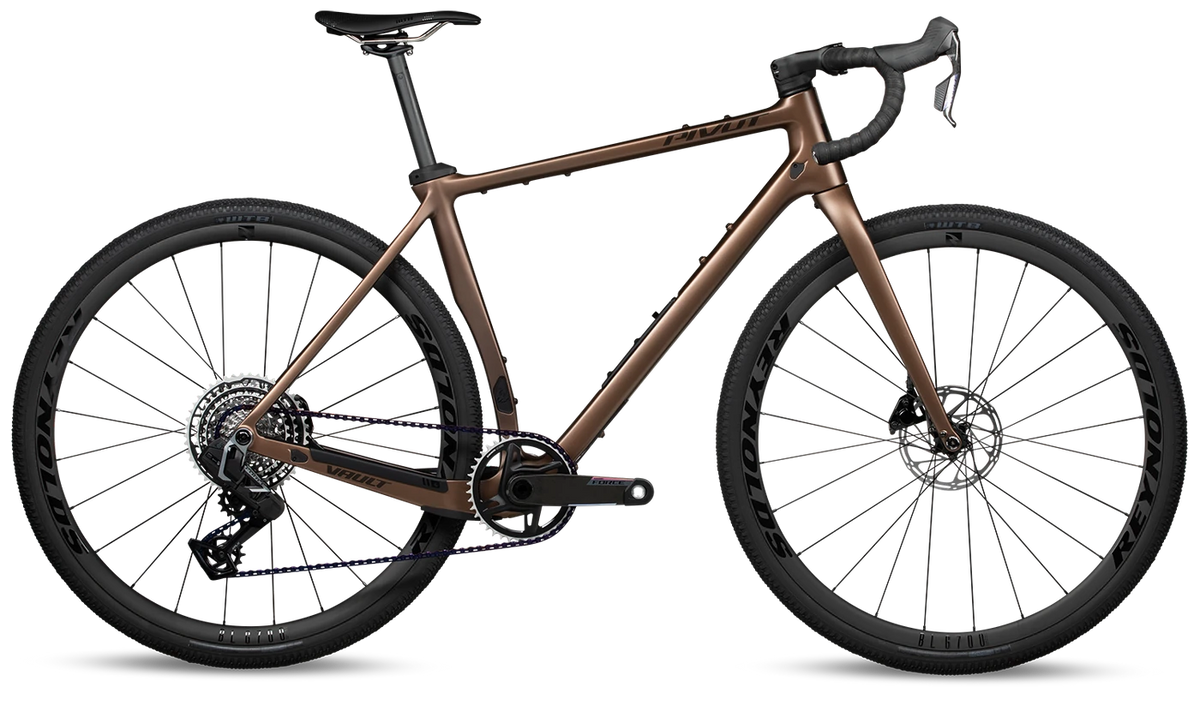

Pivot Vault Team Force XPLR AXS Reynolds G700 – Copper Comet

The Pivot Vault Team Force XPLR AXS Reynolds G700 is a top-tier carbon fiber gravel bike for riders who want to combine a lightweight frame, wireless drivetrain, and competitive carbon wheels into one highly performance-oriented package. The Vault is designed for fast gravel riding, long endurance rides, and versatile bikepacking, where the bike needs efficient power transfer, stability, and comfort on varied terrain.

Pivot's Hollow Core Carbon frame technology enables an extremely lightweight yet exceptionally stiff frame. This construction improves power transfer and makes the bike responsive during acceleration and efficient on long climbs. Modern gravel geometry adds stability on fast descents and provides precise handling on technical gravel trails.

The Vault offers ample tire clearance for wide gravel tires, which improves grip and comfort on uneven terrain. The bike is excellent for both gravel races and long expeditions.

The Copper Comet colorway completes the bike's striking appearance and highlights Pivot's meticulous finishing.

IsoFlex – comfort for long gravel rides

The Vault uses Pivot's IsoFlex comfort system, which improves the frame's ability to dampen vibration without traditional suspension. The elastomer construction of the seat post allows the seat post to flex in a controlled manner, reducing the strain caused by uneven terrain.

IsoFlex adds comfort on long gravel rides and bikepacking trips while maintaining the frame's lateral stiffness for efficient pedaling.

SRAM Force XPLR AXS – wireless gravel drivetrain

The Vault Team Force XPLR AXS is equipped with SRAM's wireless Force eTap AXS drivetrain. The XPLR series is designed specifically for gravel riding and 1x drivetrains, where a simple design and reliable operation are key features.

The 12-speed 10–44 range offers sufficiently light gears for steep climbs and efficient ratios for fast gravel riding. The wireless AXS system keeps the cockpit clean and reduces cabling.

Hydraulic SRAM Force disc brakes provide powerful and highly controllable braking feel in all riding conditions.

Reynolds G700 Carbon – carbon wheels designed for gravel riding

The bike is equipped with Reynolds G700 Carbon gravel wheels, designed for durable and fast gravel riding. The carbon rims offer high stiffness and low rotational mass, which improves acceleration and ride feel.

The 25 mm internal width supports wide gravel tires and improves tire shape and grip on gravel trails. This makes the bike stable and manageable even on uneven terrain.

Versatile gravel bike

The Pivot Vault Team Force XPLR AXS Reynolds G700 is designed for riders who want one bike for versatile use. It performs just as well in gravel races, long endurance rides, and bikepacking adventures.

Integrated mounting points on the frame allow for the installation of multiple bottle cages and accessories, making the bike extremely versatile for different uses.

Features

• Pivot Vault Hollow Core Carbon frame

• IsoFlex comfort system

• SRAM Force XPLR AXS wireless 12-speed drivetrain

• Reynolds G700 carbon wheels

• hydraulic disc brakes

• wide tire clearance for gravel tires

• modern gravel geometry

• multiple mounting points for accessories

36 MONTHS INTEREST-FREE PAYMENT WITH RESURS BANK BIKE LOAN

READ MORE ABOUT FINANCING BY CLICKING THE LINK:
Resurs Bank financing

Pivot Vault Team Force XPLR AXS Copper Comet

The new VAULT is not just a bike; it is an invitation to explore the world on your own terms. With its lightweight construction, inspiring finish, and greater number of frame sizes,
VAULT stands out among premium gravel bikes. It is designed for riders who demand versatility and performance without compromising on comfort.
So find your freedom and get lost in adventure with the Vault, a gravel bike designed without limits.

The Perfect Package

Frame
Pivot Vault Carbon

Fork
Pivot Full Carbon Gravel Fork

Bottom bracket
Pivot Precision Sealed Cartridge

Drivetrain
Shifters: SRAM Force eTap AXS HRD
Rear derailleur: SRAM Force XPLR eTap AXS
Crankset: SRAM Force 1 DUB 40T
Cassette: SRAM XG-1271 10–44
Chain: SRAM Force Flattop 12-speed

Brakes
Brakes: SRAM Force hydraulic disc brakes
Rotors: SRAM CenterLine CenterLock 160 mm

Wheels
Reynolds G700 Carbon

Rim internal width
25 mm

Tires
WTB Vulpine 700×40c TCS Light

Cockpit
Handlebar: Zipp XPLR 70 SL Carbon
Stem: Phoenix Team Stem

Saddle and seatpost
Seatpost: Phoenix Pro IsoFlex Carbon
Saddle: WTB Gravelier

Axles
12×100 mm front
12×142 mm rear

• SIZES | XXS, XS, SM, MD, LG, XL

• Can be custom-fitted as needed

What size bike should I buy?

To ensure the best fit, we recommend visiting one of our stores. However, we can provide general guidance on size selection.
Remember that VAULT geometry is designed for 60–70 mm stem lengths.
This allows you to size down and ride with a longer stem if you prefer a more traditional riding position.

XXS: 147–157 cm
X-Small: 152–163 cm
Small: 163–173 cm
Medium: 173–183 cm
Large: 183–188 cm
X-Large: 188–198 cm

GEOMETRY

FRAME SPECS

WEIGHT– 995g, (SM), no hardware
FORK WEIGHT– 428g full-length steerer tube
FORK DIMENSIONS– ATC 415mm, 1.125”-1.5” tapered FORK OFFSET– 52mm
BOTTOM BRACKET– compatible with 52mm integrated bearing systems
AXLES / HUBS– 12x100mm FRONT, 12x142mm REAR
MAX TIRE SIZE– 700x50mm
BOTTOM BRACKET MODEL– 386EVO Press FitMAX
MAX FRONT CHAINRING– 46T for 1x setups
SEATPOST DIAMETER– 27.2mm round
REAR DERAILLEUR TYPE– UDH

THE NEW Vault, NEXT-LEVEL GRAVEL PERFORMANCE

Redefines our beloved gravel bike, with the weight of its predecessor. More tire clearance and improved speed proven in competition,
with added comfort, while still delivering outstanding fast rideability. With a medium frame, the VAULT weighs from 8.25kg.

OPTIMIZED FIT AND LONG-DISTANCE COMFORT

The VAULT's raised cockpit heights create a higher and more comfortable

riding position for long distances. Stack increases by ~20 mm compared to the previous generation, across every frame size.

The fork features a longer 415 mm axle-to-crown measurement, optimized for impacts and allowing massive tire clearance.

Revised suspension geometry offers versatile fork options, regardless of terrain type.

A longer 52 mm fork offset and larger Trail measurements provide

the Vault with stable and predictable handling.

IMPROVED NEW GEOMETRY

The longer, slacker, and taller progressive gravel geometry not only provides stability on fast-rolling gravel, but also helps keep you calm on rougher sections. The goal was to achieve complete confidence on descents, while maintaining the correct front-wheel weight and precise cornering. The new VAULT allows you to shorten the stem by 1-2 sizes (10-20mm). Increased BB drop regardless of frame size helps provide the "bike-in-the-middle" feel familiar from mountain bikes, ensuring a stable and reliable ride feel. This is combined with shorter crank lengths and specified for all sizes. Compact frame dimensions allow for a lower standover height (~20 mm), expand the size range, and give the rider the option to size up or down according to their needs. You can choose a more aggressive or relaxed riding position depending on the intended use.

ISO FLEX

Our patented ISO-FLEX technology is a ride-smoothing damper that
provides tuned flex by creating a cushioned space between the seat tube and the frame. The ISO-FLEX insert, which slides into the frame, consists of tuned elastomer
and fiber-reinforced nylon.
The inner sleeve provides a secure interface, which adds compliance and dampens the ride over imperfect terrain.
The latest version of ISO-FLEX is designed to be felt, not seen. Its
clean integration creates a lighter, sleeker, and more hidden design. It is
also easier for a bike mechanic to service, as only hex
keys are needed for removal and maintenance.
Compatible with any round 27.2 mm seat post.
Allows the rider to choose between a comfortable carbon seatpost,
or if desired, you can choose a dropper post for the roughest terrain.
Or to bring comfort even to traffic lights =)
No option is ruled out.

EXPANDED DRIVETRAIN & CABLE ROUTING OPTIONS

Equipped with UDH and a clean, removable front derailleur mount, the Vault is compatible with the latest 1x and 2x drivetrains.
Our proven cable port system, combined with an oversized bottom bracket shell, means that the Vault is compatible with both fully integrated,
semi-integrated cable routing options, or combinations of the two. Durable rubber chain and lower tube guards keep the VAULT quiet.

TIRE CLEARANCE

Dropped chainstays and a shaped seat tube allow for massive tire clearance,
without compromising frame stiffness or efficiency.
The drive-side chainstay is optimized to allow the largest possible tire clearance,
while the bike can still be fitted with narrow-line road cranks.
The VAULT comes factory-equipped with 700x40c WTB Vulpine tires
Max tire clearance 700x50c

TOOLSHED IN-FRAME STORAGE

With the new Pivot Toolshed™ frame-integrated storage system, you can keep
your essentials within reach, reducing the clutter caused by bike bags
ideal for grab-n-go short trips or longer adventures with gear.
The Toolshed™ cover is a technical work of art that is easy to use and
the most secure locking system on the market. A built-in magnet
inside the cover keeps the chain locks in place and easily accessible. Attach your own
favorite tool or accessory to the inside of the cover with the integrated
Velcro strap. (strap not included)
Every Vault comes with two Toolshed™ bags,
designed to carry an extra inner tube,
essential tools, or even a little extra room for a snack.







LOTS OF MOUNTING POINTS

The VAULT is equipped with multiple mounting points, allowing for versatile
bottle and tool integration.
The front triangle can hold up to 5 water bottles, perfect for long adventures.
Thanks to the abundant mounting points, the VAULT is ready to carry all your gear on long adventures,
where extra storage is essential.
Hidden fender mounts make the VAULT suitable for year-round riding in all weather.
Also ideal for commuting use.










EXPANDED SIZE RANGE & FEATURES

In addition to the new progressive geometry, a sixth frame size has been added for smaller riders. The new XXS size allows riders measuring 147 cm to ride.
The XLarge size is suitable for riders up to 196 cm tall.
Like all Pivot frames, each carbon frame is individually tuned to the rider's size. This means the layup, tube sizes,
and shape are optimized to ensure the best ride feel for riders of all sizes.
Smaller riders don't have to suffer with an overly stiff frame, and larger riders don't have to deal with an overly slack frame.
Custom carbon frames scale stiffness across all sizes,
ensuring optimal ride characteristics for all rider profiles.
The strength-to-weight analysis of each frame enables consistent performance metrics.

Read more about this here Proprietary Ride Tuning

The PIVOT VAULT and gravel riding are straight-up NEXT LEVEL. This could be the start of a lifetime of enjoyable riding..
