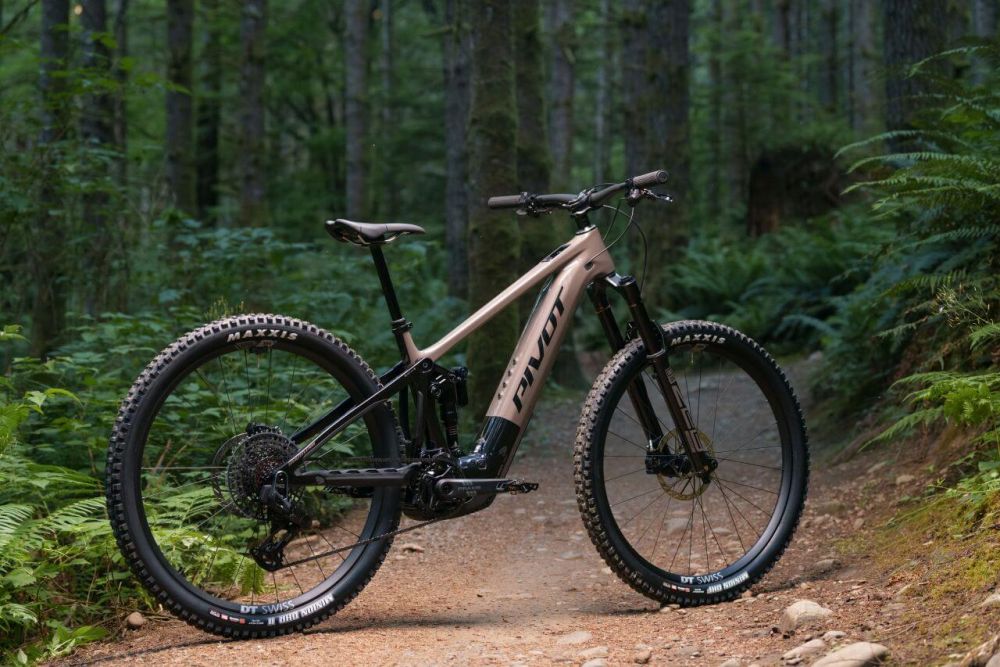

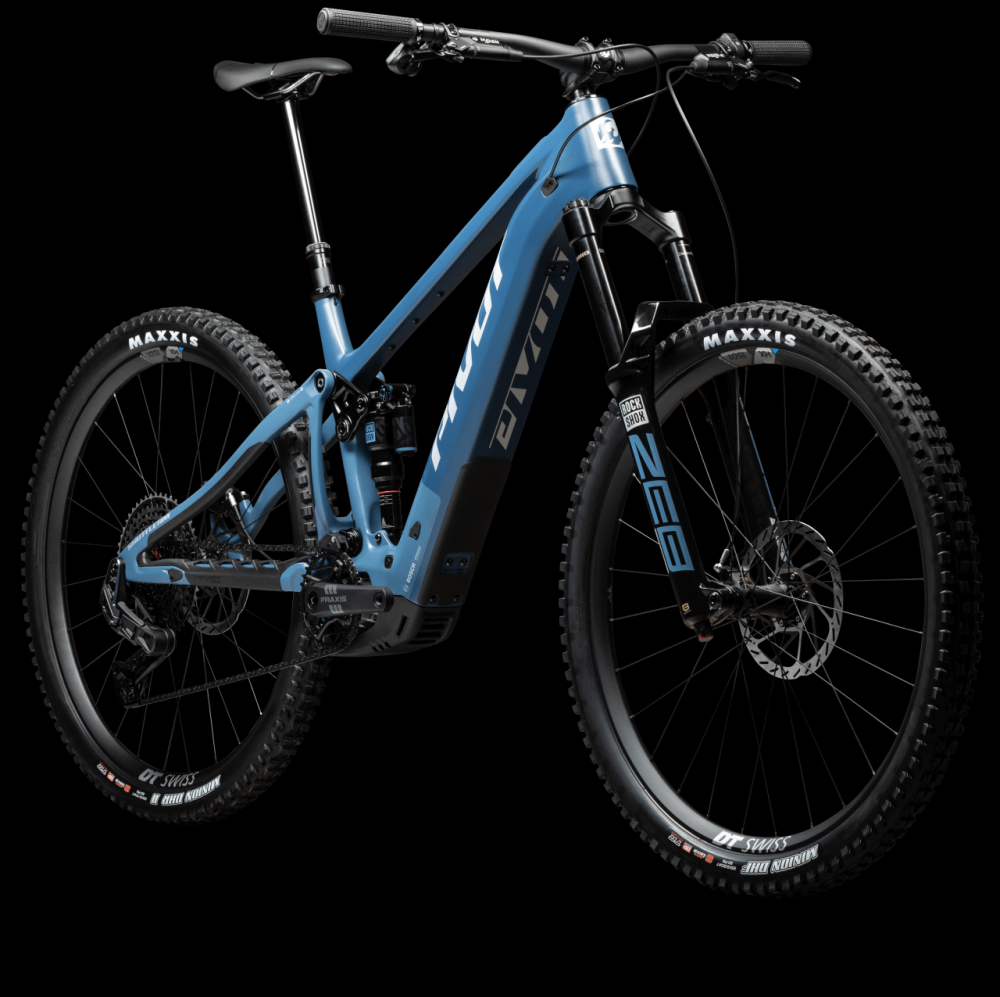

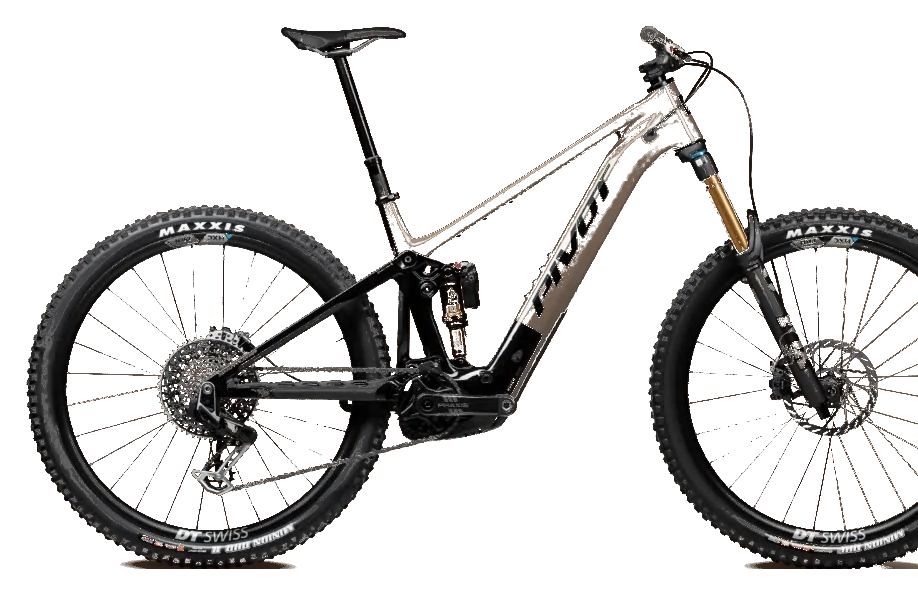

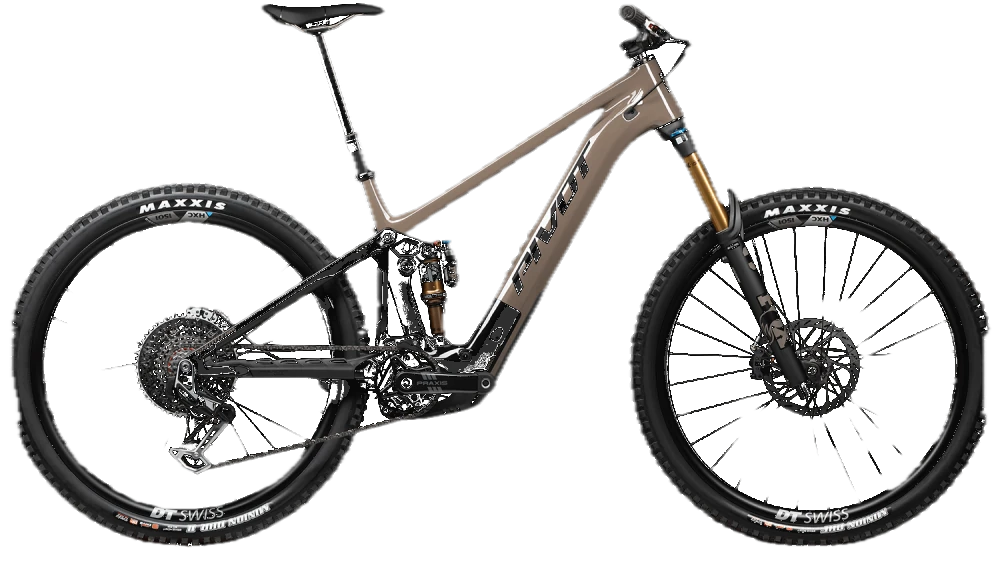

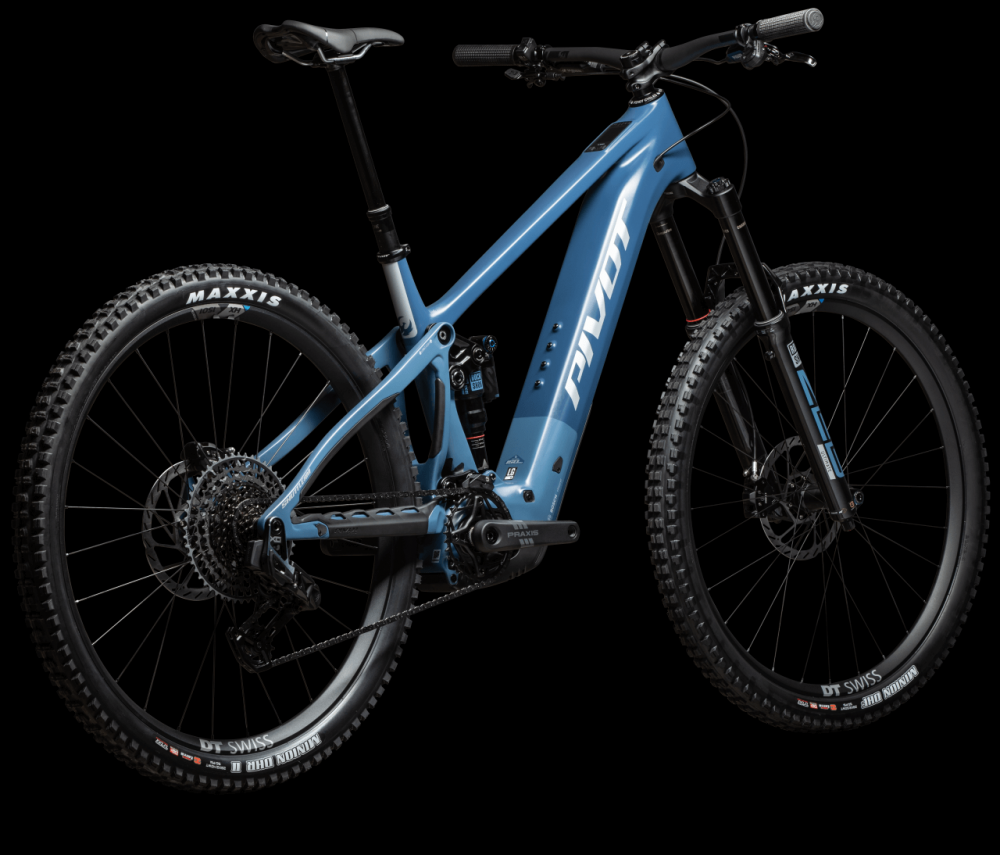

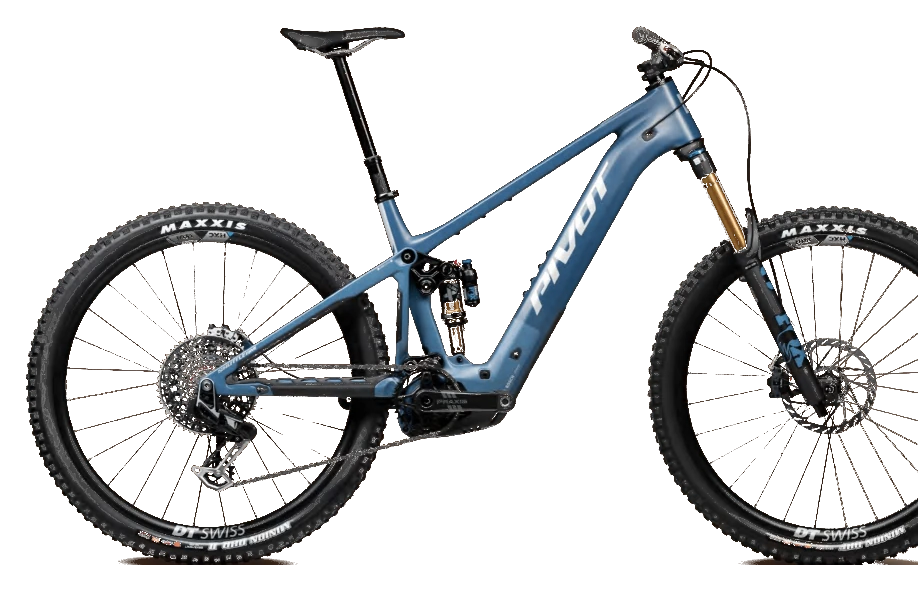

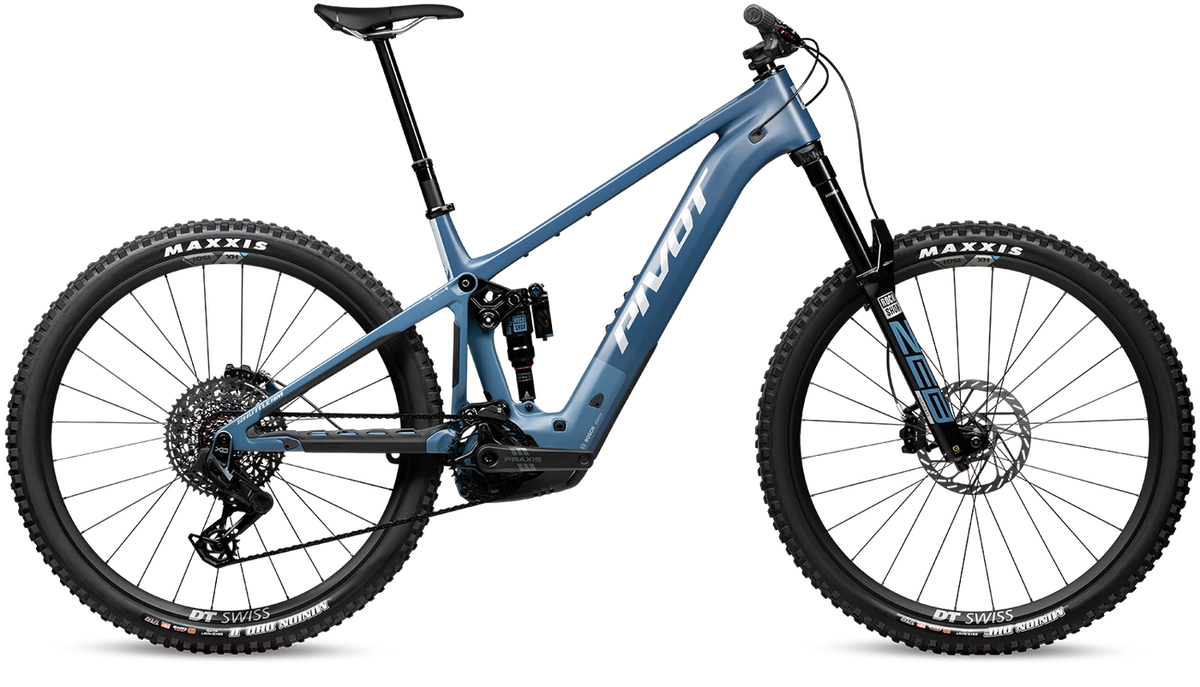

Pivot Shuttle AM Pro X0 Eagle Transmission 2026

You can also purchase this bike as a company bike.
Or via installment plan.

The all-new Pivot Shuttle AM is an e-bike in the sweet spot. When you want to beat yourself and your friends. Nab KOMs and win races or set your own personal records.
This bike will change your perception of e-bikes.
A platform and feel like a non-electric Pivot.
An authentic premium feel from start to finish.
More than enough power and looks that turn heads.
Invest in yourself and enjoy!

Shuttle AM Pro X0 Eagle Transmission in a nutshell:

• NEW Bosch Performance CX-R motor
• 100Nm torque and 750W power
• 800Wh integrated battery + optional 250Wh external battery
• Wheel size: 29"
• Rear travel: 150mm
• Front travel: 160mm
• 100% carbon fiber frame
• Sram Eagle X0 Transmission electronic shifting
• Sram MAVEN four-piston brakes
• Sizes: S - XL
• 64° head tube angle (low setting)
• 76.8° seat tube angle depending on size
• 642mm stack / 461mm reach (medium)
• 444mm chainstay
• Weight: approx. 22.5kg

To manufacturer's page

---

PIVOT SHUTTLE Pro X0 Eagle

COMPONENTS PIVOT SHUTTLE AM PRO X0 TRANSMISSION

• FRAME | Hollow Core Carbon Fibre, dw-link Suspension Design, 150mm travel
• FORK | RockShox Zeb Ultimate 29", 44mm offset, 160mm
• SHOCK | RockShox Super Deluxe Ultimate
• WHEELS | DT Swiss HX1501 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29"
  15x110 F/12x157 R
• TIRES | F - Maxxis Minion DHF 29” x 2.5” WT, TR, 3C, EXO+, MAXXTERRA | R - Maxxis Minion DHRII 29” x 2.4” WT, TR, 3C, EXO+, MAXXTERRA
• SHIFTER | Sram AXS Pod Controller
• REAR DERAILLEUR | Sram X0 Eagle Transmission 12-Speed
• CRANKS | Praxis Alloy eCranks E-MTB 34t - 160mm
• CHAIN | Sram X0 Eagle Transmission Flattop 12-Speed
• CASSETTE | Sram X0 1295 Eagle Transmission 10-52t
• BRAKES | Sram Maven Silver 4-piston / Sram HS2 Centerlock - 200mm
• HANDLEBAR | Phoenix Team Low Rise Carbon
• STEM | Phoenix Team Enduro / Trail
• GRIPS | Phoenix Factory Lock-On
• SEATPOST | OneUp Dropper V3 150mm (SM), 180mm (MD), 210mm (LG-XL)
• SADDLE | Pivot Pro E-Bike
• MOTOR | Bosch Gen 5 Performance Line CX Race Edition 100Nm / 750W
• BATTERY | BOSCH Powertube 800Wh
• Optional 250Wh external auxiliary battery

The All-Mountain standard taken to a new level

The new Shuttle AM takes all-mountain cycling to a whole new level. Equipped with Bosch’s 5th generation Performance Line CX and CX-R motors, the Shuttle AM transforms raw power into pure trail magic.

It climbs as if fighting gravity and descends like it has a bone to pick. The ride is smooth, responsive, and almost telepathic – a combination of torque, grip, and true trail tenacity.

More power, more control, and a ride feel that is both fun and high-performing – every ride becomes a story worth sharing.

Power, precision, and possibilities

The new Shuttle AM has received a significant power upgrade that you will feel with every pedal stroke. The Bosch 5th generation Performance Line CX motor produces up to 100 Nm of torque and 750 watts of peak power, and its settings are fully customizable via the eBike Flow app.

The motor offers faster response, more explosive acceleration, and seamless climbing even on challenging terrain. The new eMTB+ mode takes the experience even further – it adapts in real-time to your pedaling force and trail conditions, offering intuitive support exactly when you need it most.

The Team build weighs only 21.5 kg (47.5 lbs), making the Shuttle AM one of the lightest full-power e-mountain bikes in its class. The Pro and Team models also feature the Bosch CX-R motor, a race-tuned and 100-gram lighter version for those who demand even more efficiency and power with instant response.

All models are equipped with an 800 Wh battery, so the Shuttle AM is ready for longer trips, tougher trails, and everything in between.

'

Suspension and platform – top-tier performance

Team models feature a Fox Factory Float X rear shock, providing 150 mm of rear travel, paired with a Fox Factory 36 mm Grip X2 fork with 160 mm of travel.

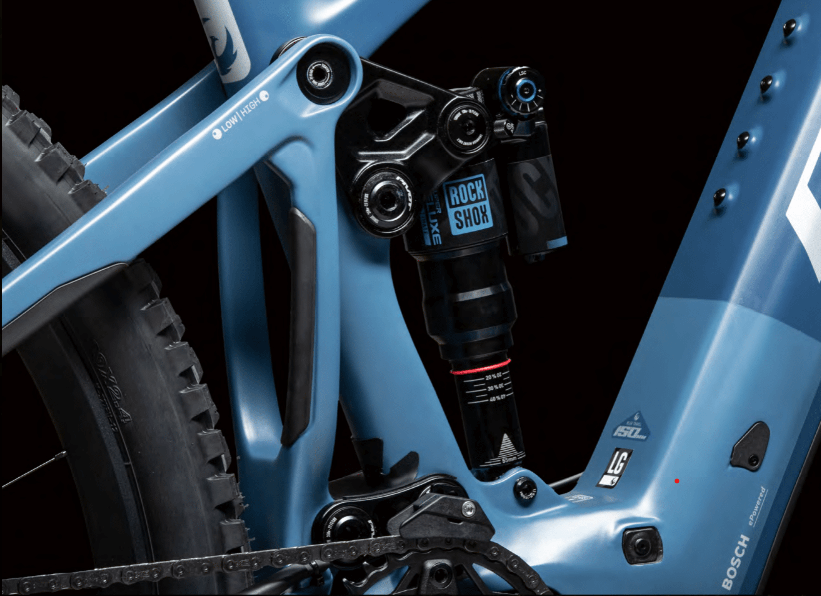

Pro models are equipped with a custom-tuned RockShox Super Deluxe Ultimate rear shock (150 mm) and a RockShox Zeb Ultimate fork (160 mm).

Ride models use a RockShox Super Deluxe Select rear shock (150 mm) and a RockShox Lyrik Select+ fork (160 mm), meaning the same travel at both ends as the flagship models.

Additionally, a Fox Neo Air rear shock upgrade is available for Team models, taking performance to a new level.

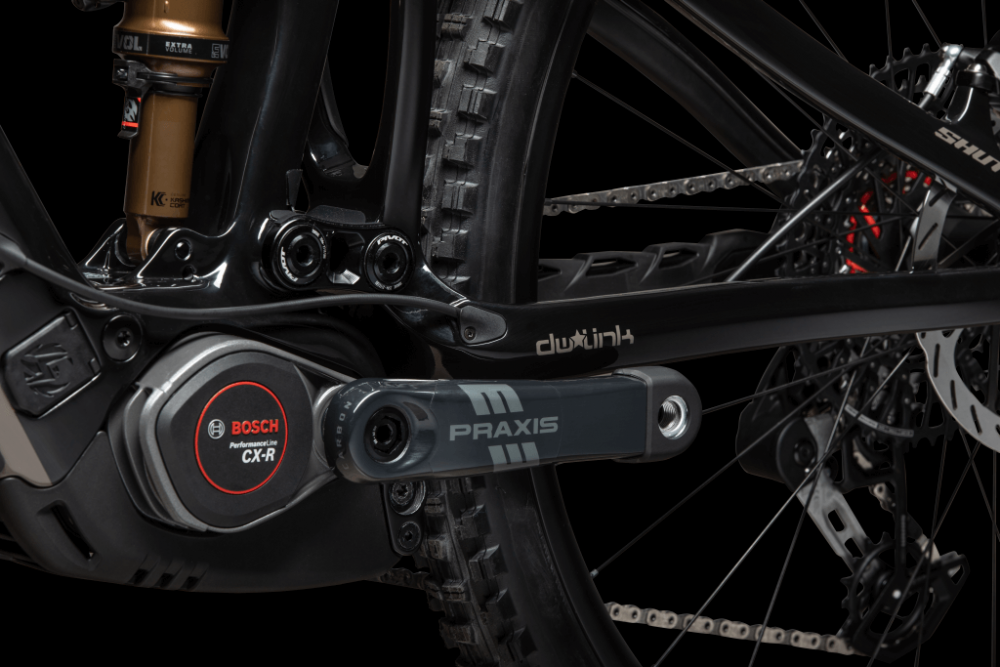

Bosch Performance Line CX-R motor

Pro and Team models utilize the Bosch CX-R motor – a race-tuned version that is 100 grams lighter and offers even faster and more aggressive power delivery.

The CX-R unit features a titanium crankshaft and ceramic bearings, combining lightness with durability. Additionally, the motor includes an exclusive Race mode, which provides aggressive, high-torque, and lightning-fast pedal response for the most demanding riding moments.

Ride models come standard with the Bosch Performance Line CX motor, which also offers reliable power on all terrains.

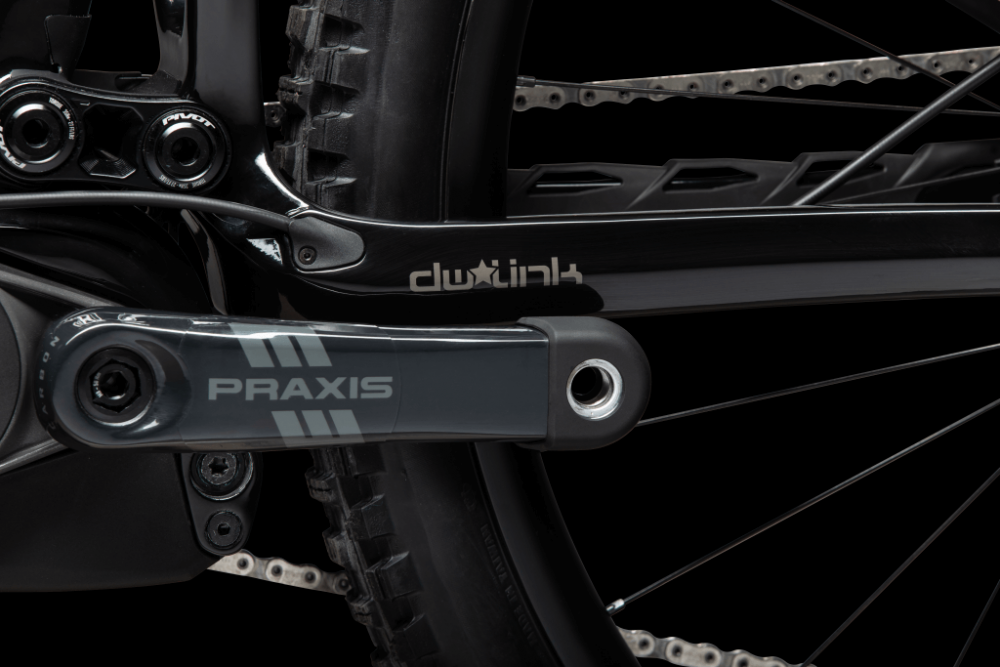

dw-link® suspension

The enhanced dw-link® suspension offers highly efficient pedal response, giving the Shuttle AM precision for climbing and stability for descents.

dw-link® is the perfect suspension platform for Pivot's eMTBs, as it provides an optimal amount of anti-squat, allowing the Shuttle AM (and all Pivot Shuttle models) to utilize the full power of the motor for maximum traction and incredible suspension performance.

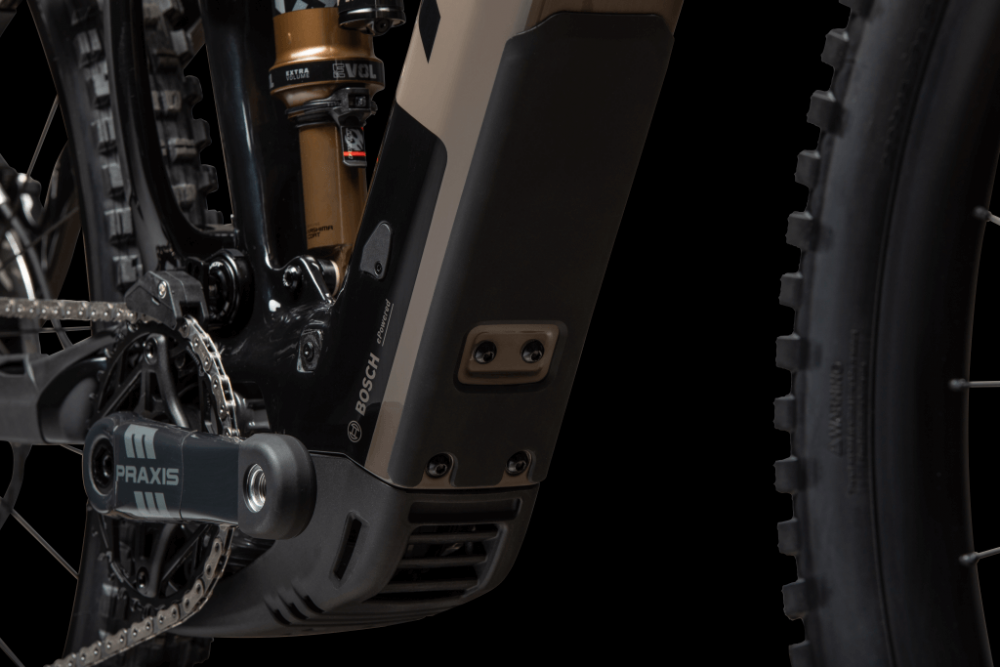

Durable battery – long-lasting power

The Shuttle AM is powered by a massive 800 Wh battery integrated into the downtube, providing support for all-day adventures.

Although the capacity has increased, the 800 Wh battery is still 408g lighter than the previous 750 Wh version. Furthermore, the battery is compatible with the Bosch PowerTube 250 Range Extender, enabling even longer rides.

'

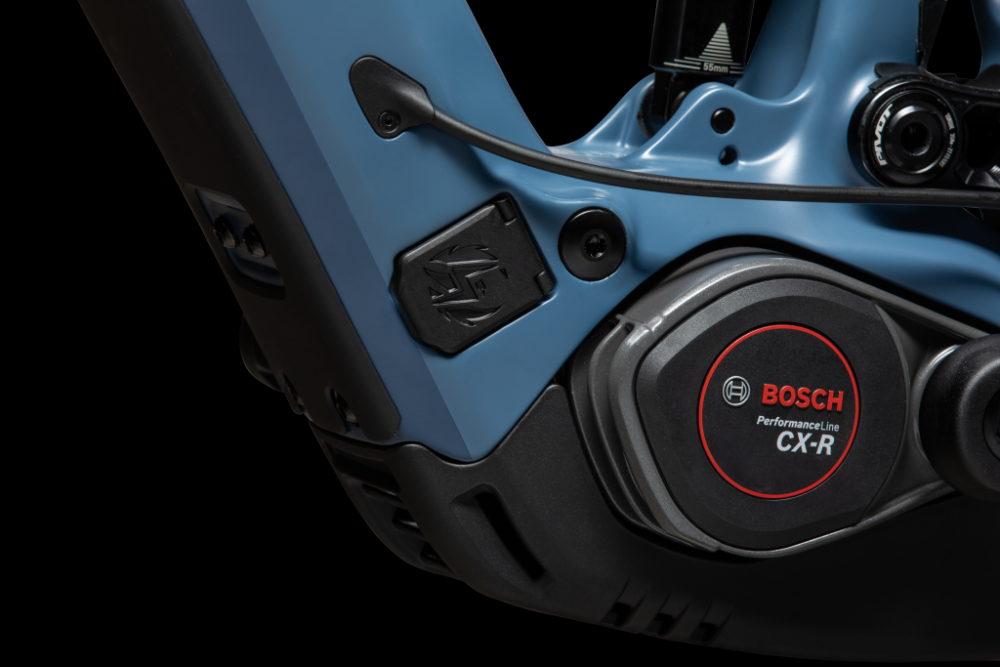

New charging port design

The new charging port cover is sleek, seamlessly integrated, and very easy to use, providing quick and effortless access to charging without compromising the aesthetics.

The cover is Pivot's own design, ensuring durability and a perfect fit. It offers better protection against weather conditions while maintaining the clean and premium look that riders expect.

The cover is designed to be compatible with the Bosch PowerTube 250 Range Extender and can be easily removed to enable longer rides.

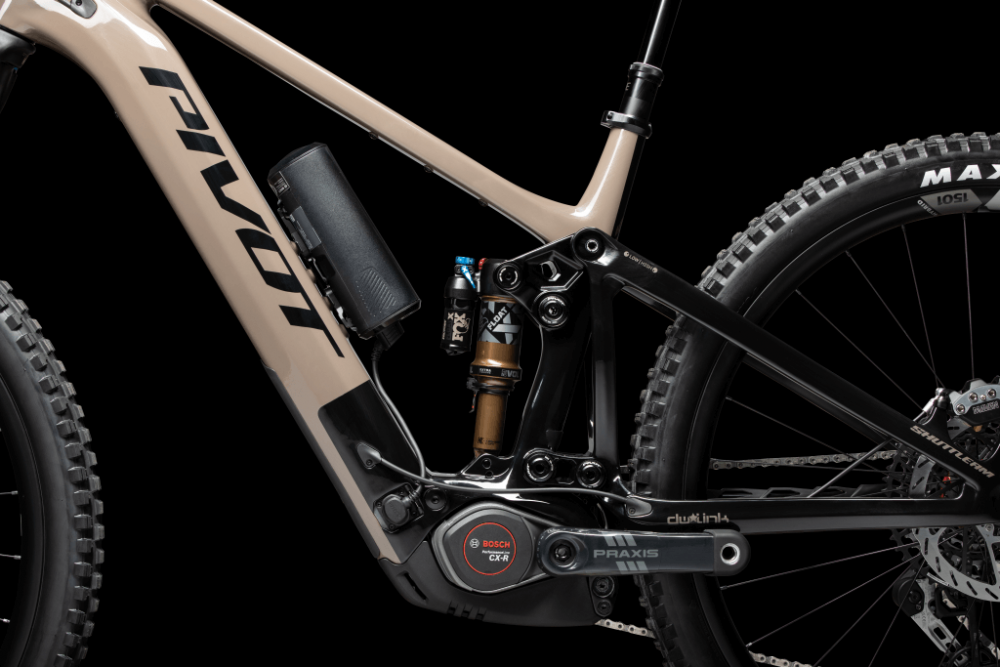

PowerMore 250 Range Extender – auxiliary battery for longer rides

The Bosch PowerMore 250 Range Extender (250 Wh) is a water bottle-sized auxiliary battery that provides extra power and range – perfect for that last lap or the final miles back to the car.

The PowerMore Range Extender is compatible with all Bosch-powered Shuttle models.
The auxiliary battery weighs only 1.5 kg, adding extra power without unnecessary weight.

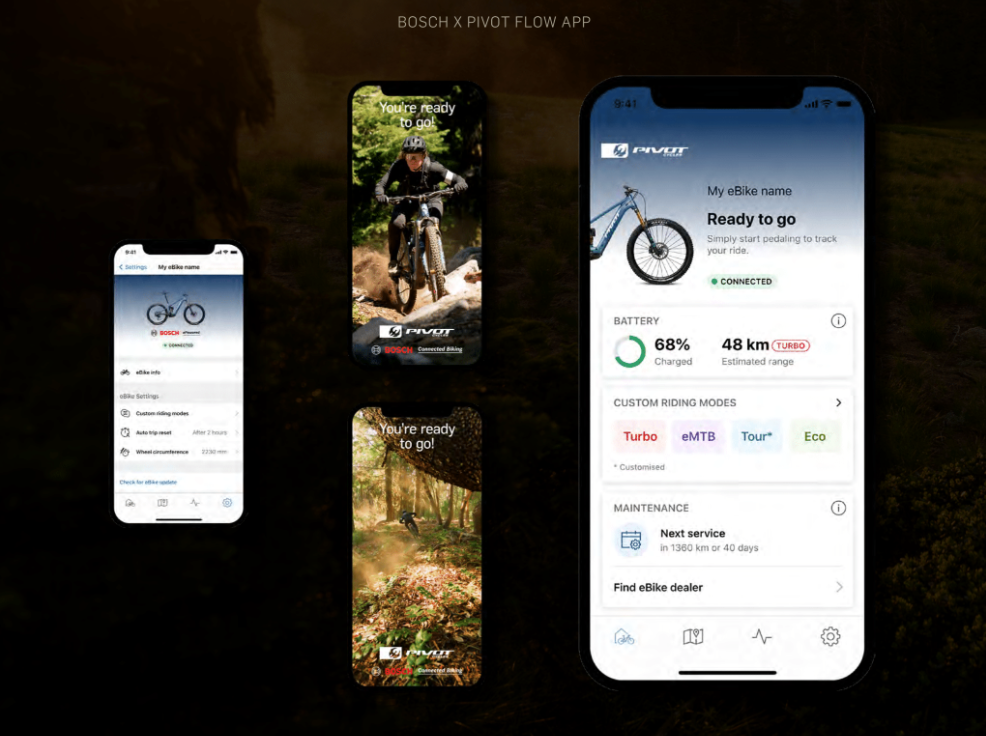

Bosch x Pivot Flow app

The custom Bosch x Pivot Cycles Flow app is a user-friendly mobile tool that offers seamless connectivity to Bosch-powered e-mountain bikes.

The app includes features such as:

• Recommended maintenance intervals based on mileage

• Locating the nearest Pivot or Bosch dealer

• Real-time battery levels and estimated range

Digitally manage up to six e-bikes with one account, making control and management easy and effortless.

You can also customize riding modes and fine-tune motor support to ensure the ride experience on the trail perfectly matches your preferences.

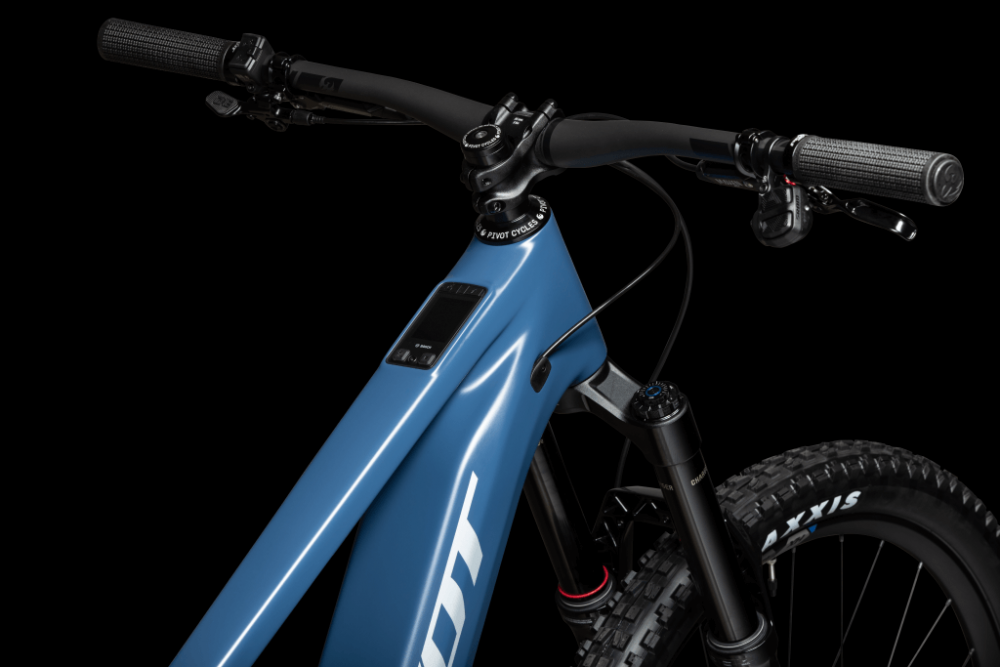

Ultra Clean Command Center – clean and top-of-the-line control point

Bosch's wireless controller, SRAM's wireless shifting (on Pro and Team models), and Phoenix Factory Lock-On grips, mounted on the Phoenix Factory Tuned-Flex carbon handlebar, turn the cockpit into an ultra-clean command center.

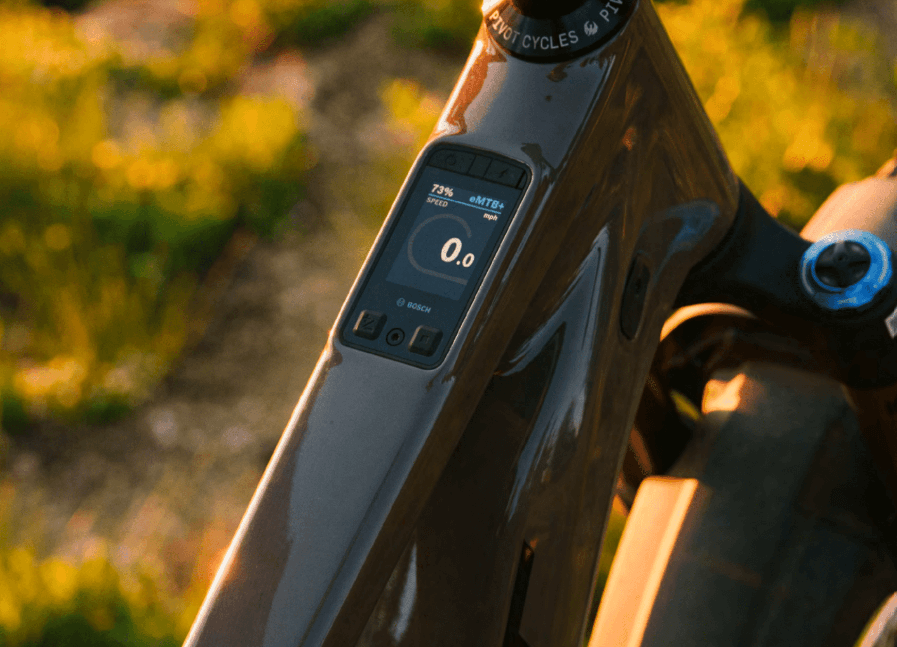

Pro and Team models also feature the new Bosch Kiox 400c display, which is larger, brighter, and easier to read than ever before, providing total control on the trails.

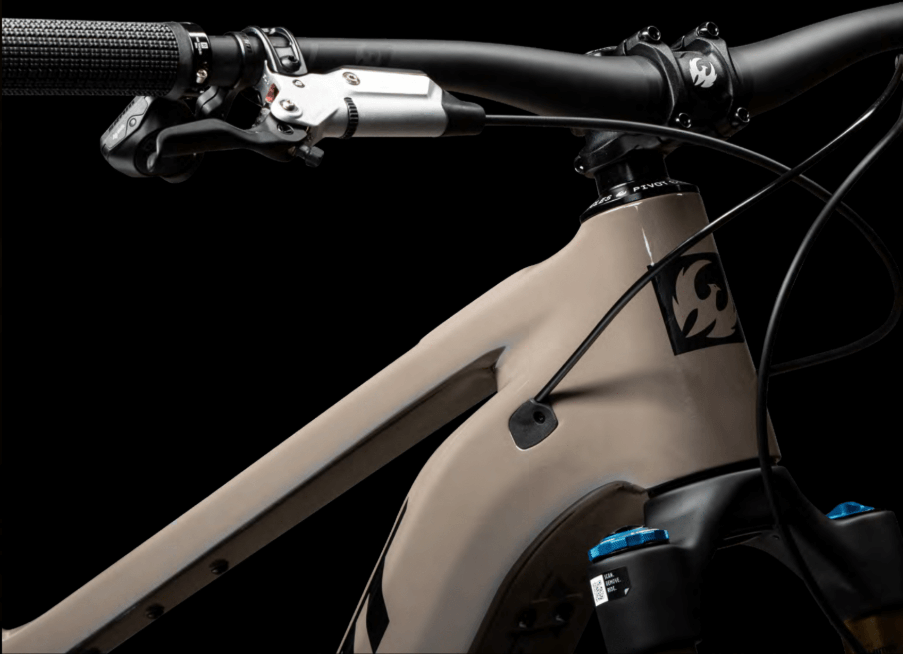

New cable port design

The dual cable port allows two lines to be routed through the same port, which simplifies cable management at the handlebar and frame area both visually and practically.

The larger opening makes cable installation easier and more efficient, while increasing versatility for custom configurations, including moto-style cabling.

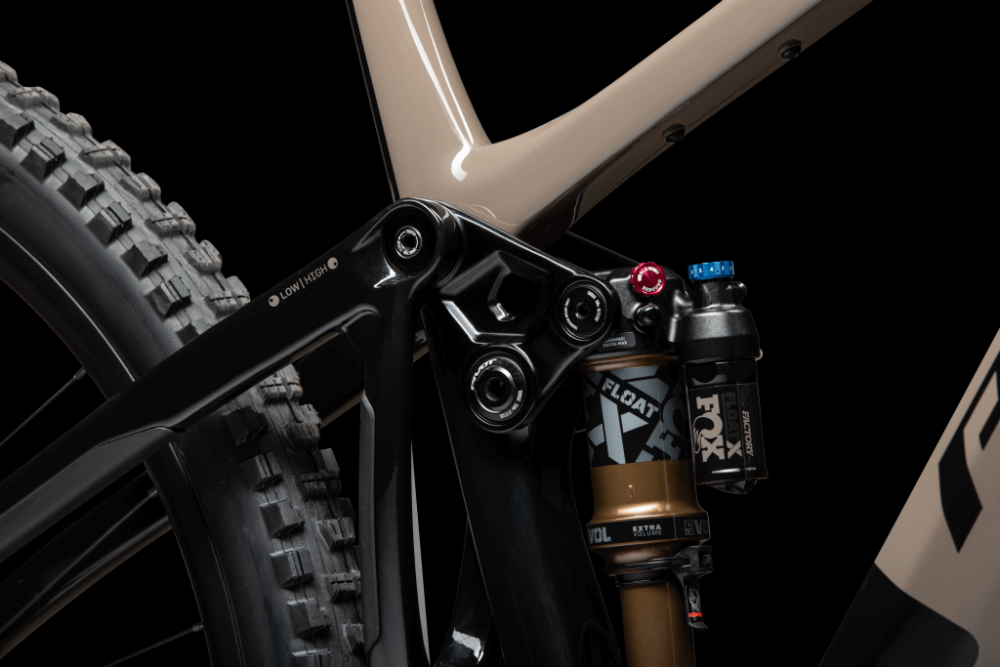

Geo Flip Chip adjustability

Tune your Shuttle AM perfectly for your riding style using the Pivot Flip Chip. Switch between geometry options:

• High – for challenging rocky and technical trails

• Low – for maximum speed and perfect control on descents

The high BB setting raises the bottom bracket height and steepens the head angle by 0.5°. It also allows for the use of a 27.5” rear wheel, making all sizes of the new Shuttle AM mixed-wheel compatible.

Proprietary Ride Tuning – manufacturer's own ride tuning

The Shuttle AM suits riders from 160–200 cm (5’3”–6’7”), with size options S–XL.

Every frame size undergoes an independent strength-to-weight analysis, ensuring consistent performance. Additionally, the custom carbon fiber layup adjusts the frame stiffness according to size, ensuring optimal ride feel for all riding profiles.

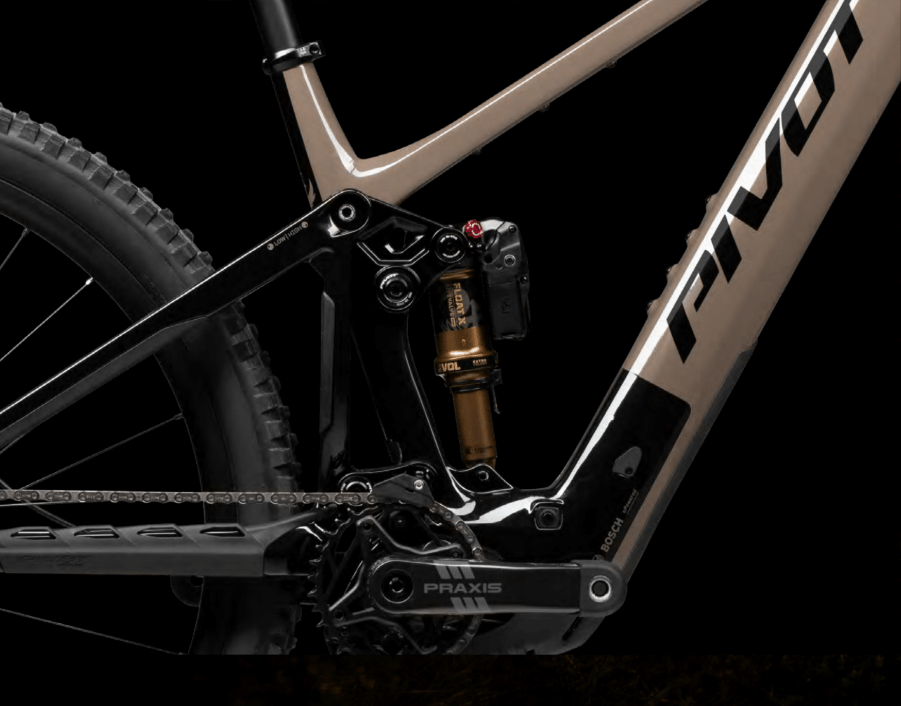

Live Valve Neo – real-time suspension management

Live Valve Neo takes the already effective dw-link® platform to the next level by providing real-time suspension management, ensuring a stable and confident ride feel.

Built on the Neo protocol, the fastest wireless protocol in cycling, Live Valve Neo reacts 100 times faster than Bluetooth, offering real-time suspension performance on all trails.

• Firm mode provides a supportive feel for climbing and transitions, and opens instantly when the trail becomes demanding.

• Available on Team models.

Frame and technical specifications – Shuttle AM

• Travel: front 160 mm / rear 150 mm

• Total weight: 21.5 kg (47.5 lbs, Team XX Eagle Transmission build)

• Available sizes: SM, MD, LG, XL

• Headset: ZS49/56

• Rear spacing: 12x157 mm

Motors and performance:

• Ride: Bosch Performance Line CX | Max power 750 W | Max torque 100 Nm

• Pro & Team: Bosch Performance Line CX-R | Max power 750 W | Max torque 100 Nm

Battery: 800 Wh

Ride systems:

• Performance CX: Tour+, EMTB, EMTB+, Turbo

• CX-R: Tour+, EMTB+, Turbo, Race

Factory wheel setup: 29” front and rear
Max tire size: 29” x 2.5” | 27.5” x 2.6”

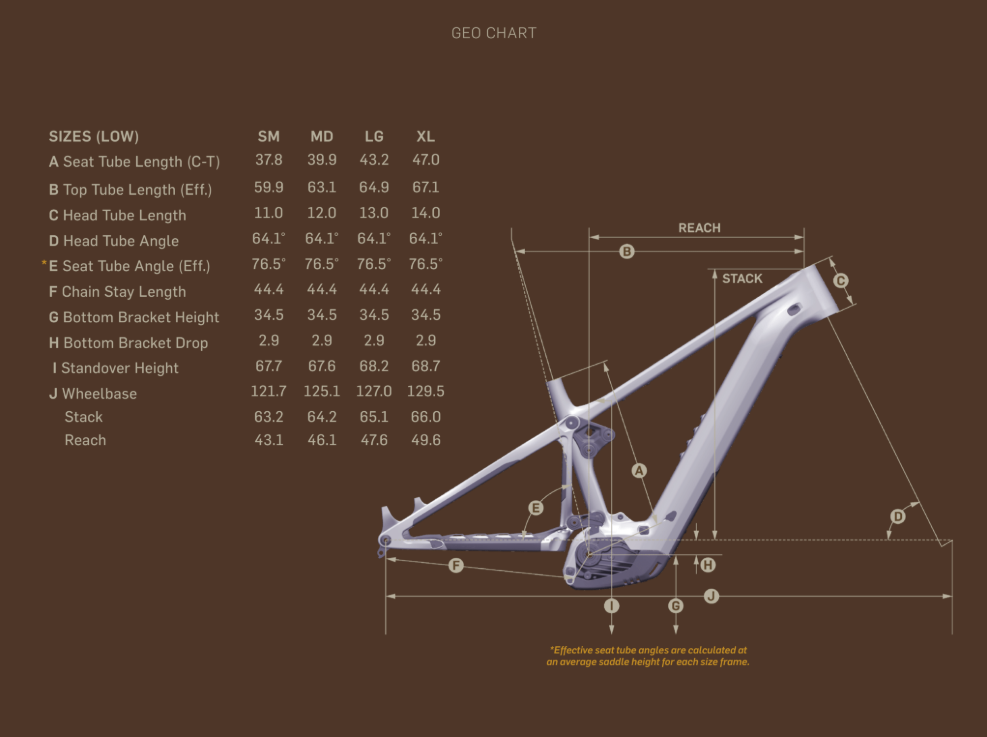

GEOMETRY IN LOW SETTING

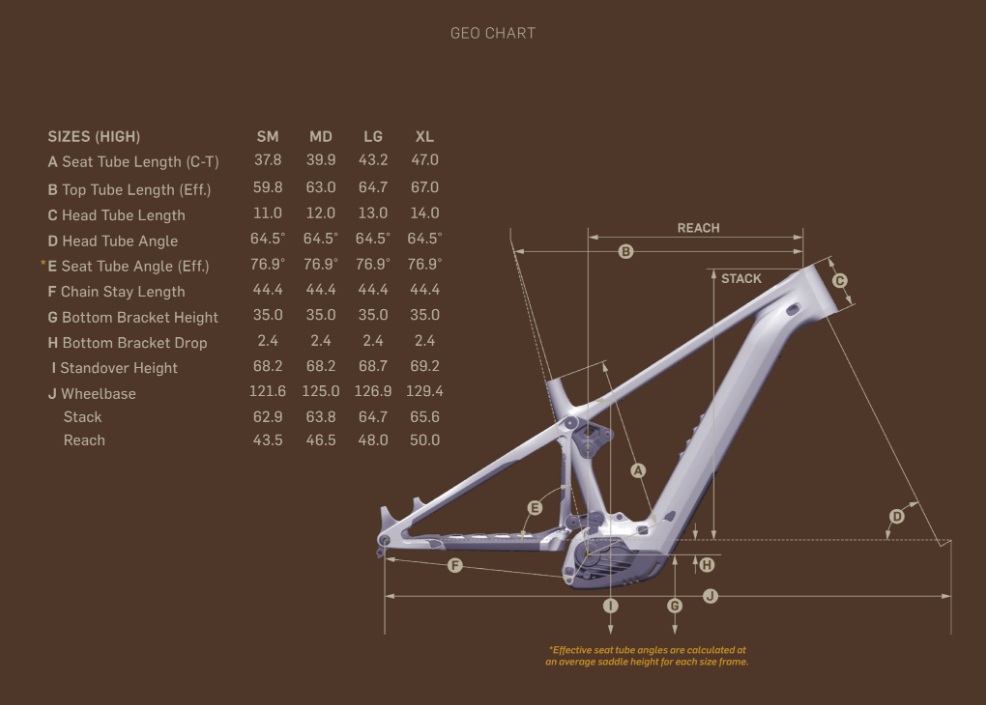

GEOMETRY IN HI SETTING

Build Updates – Shuttle AM

• Fox Live Valve Neo Air rear shock available as an upgrade for the Team model for €1,300.

• Bosch 250 Wh PowerMore Range Extender available as an accessory for all models for €500, providing extra power and longer range.
