Ortlieb Quick Rack L luggage rack
Prices include VAT.

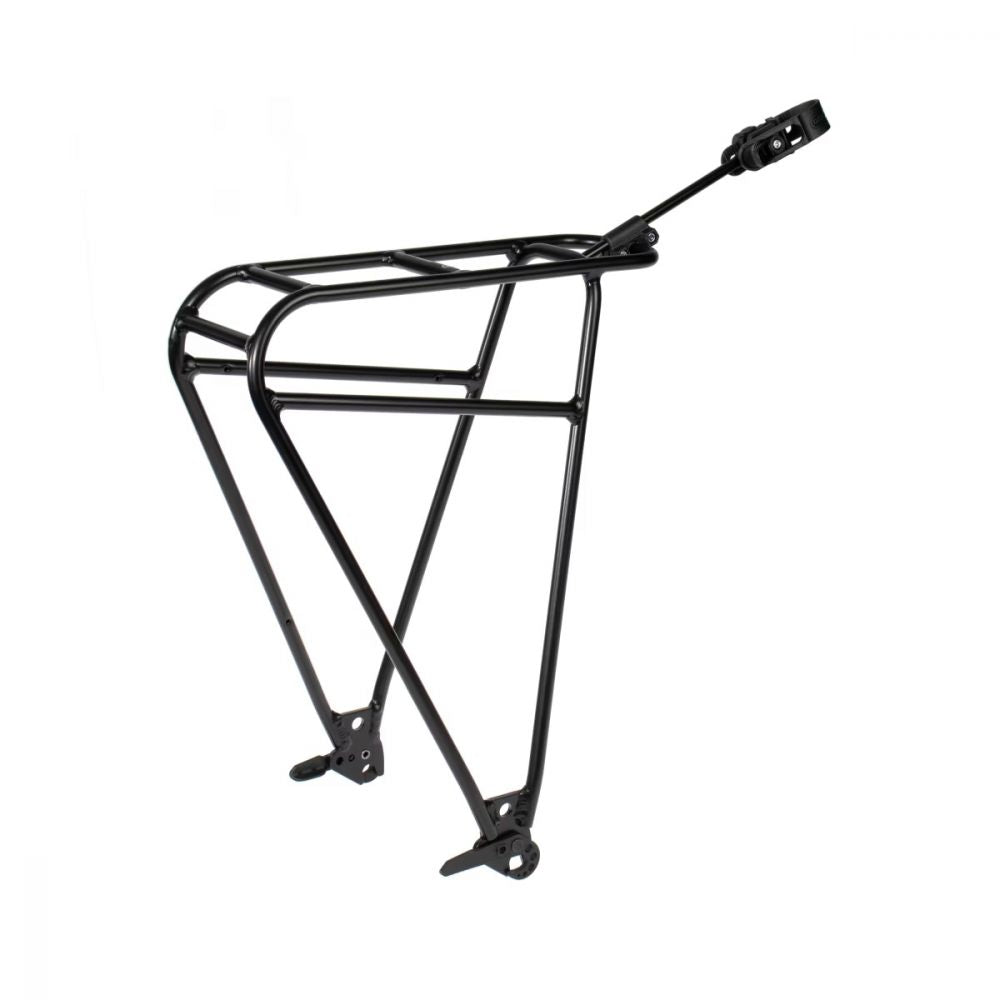

ORTLIEB Quick Rack L removable luggage rack for gravel and touring bikes. 20 kg load capacity, weighs just 605 g, and fits tires up to 29 × 3.0.
Shipping
Delivery methods, shipping costs and the estimated delivery time are shown at checkout before you confirm your order. You will receive tracking details by email when your parcel is on its way. More about shipping
Store pickup
Choose pickup from our Pitäjänmäki store at checkout and pay no shipping costs. We email you when your order is ready for pickup at Konalantie 9, Helsinki.
Returns and exchanges
Online orders have a 14-day right of withdrawal from the day you receive the product. You may examine the product as you would in a store. Please return it in its original packaging if possible. Return instructions
Warranty and service
Products come with a manufacturer's or importer's warranty, which does not limit your rights under consumer protection law. We handle warranty claims for you: contact us or bring the product to our store. Our service work comes with a 3-month warranty.
Description
Removable luggage rack for gravel and trekking bikes

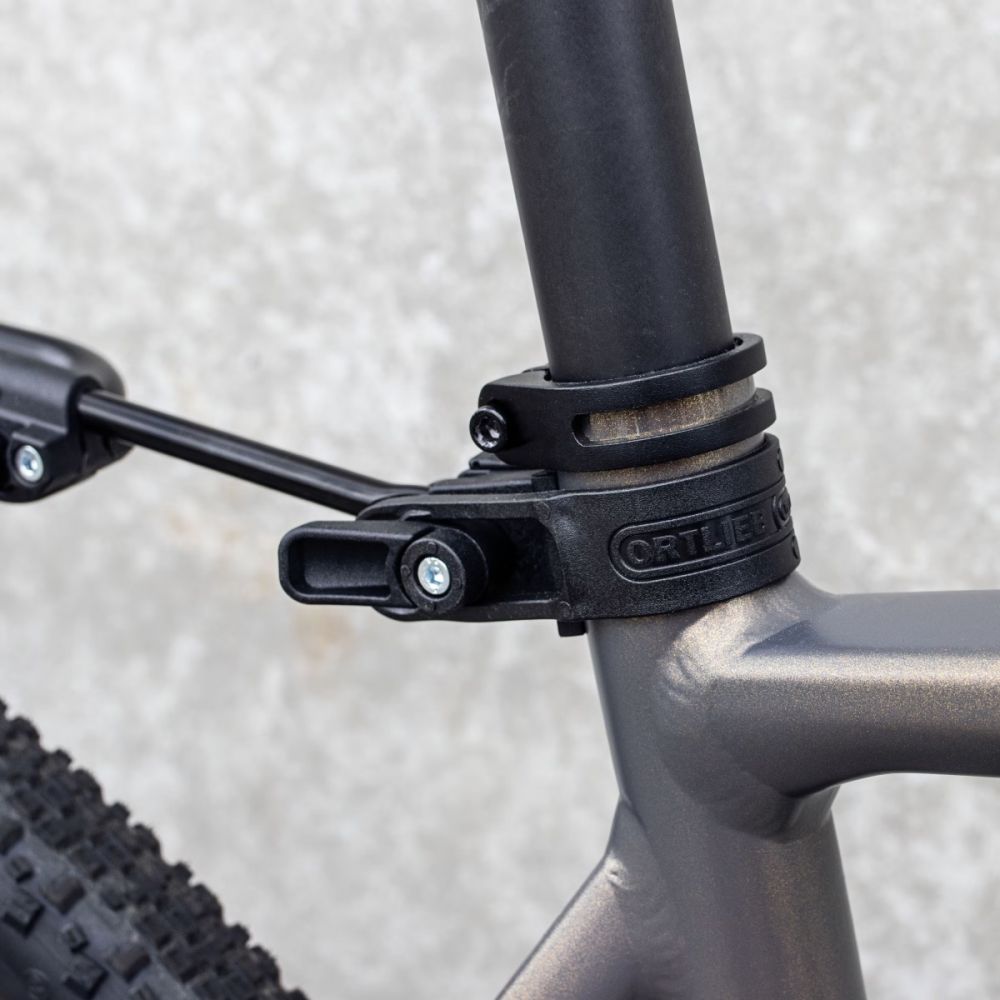

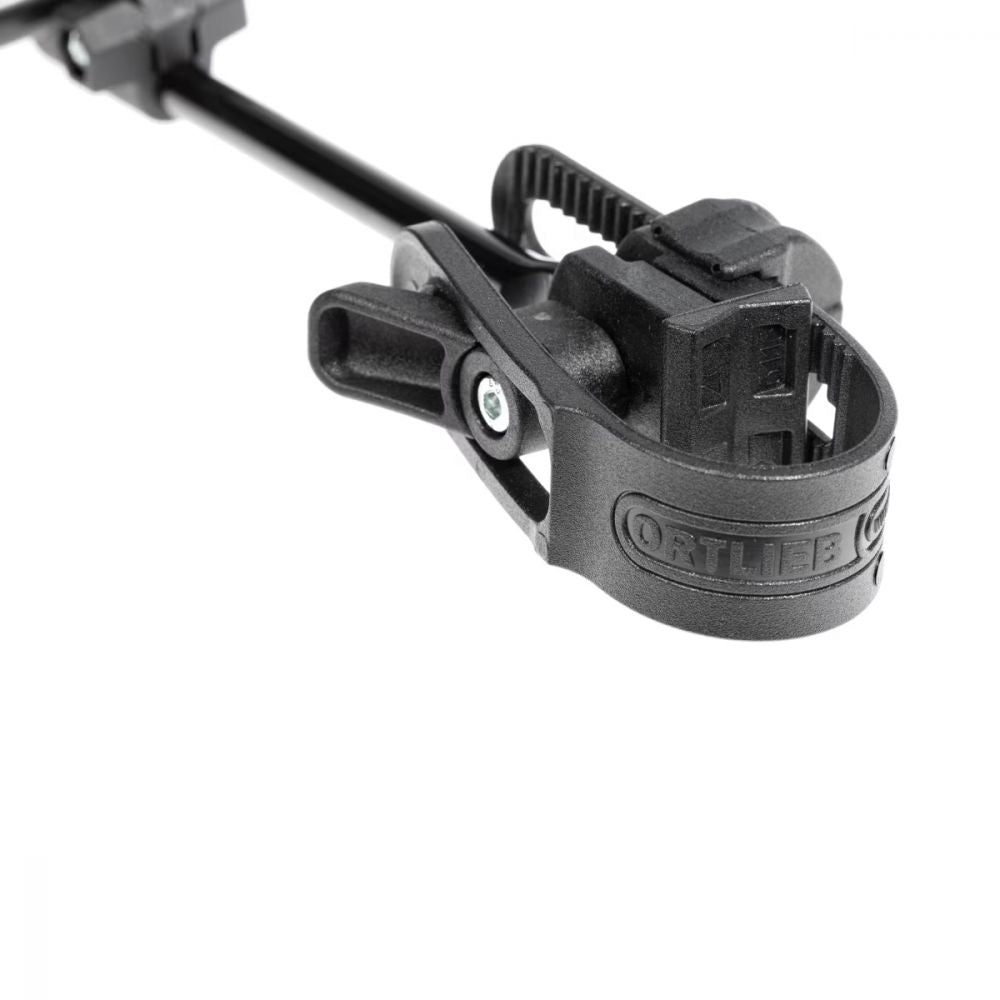

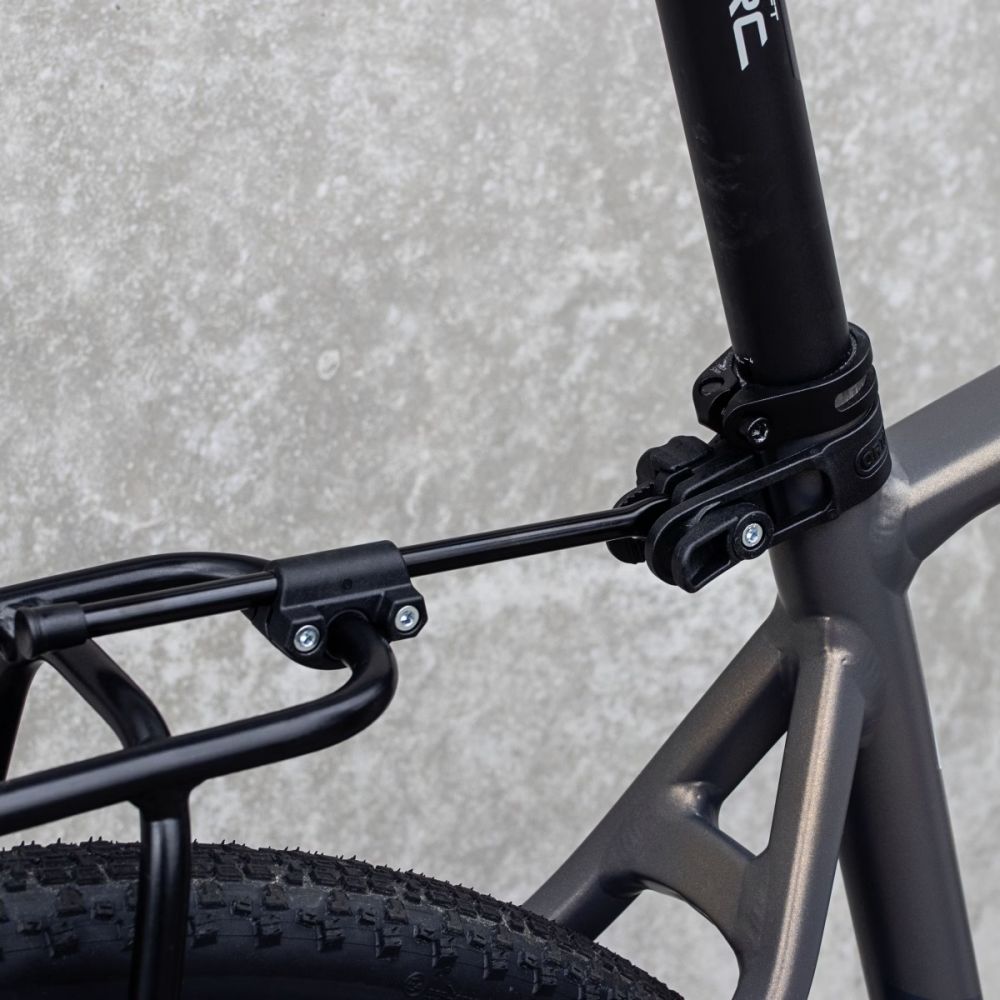

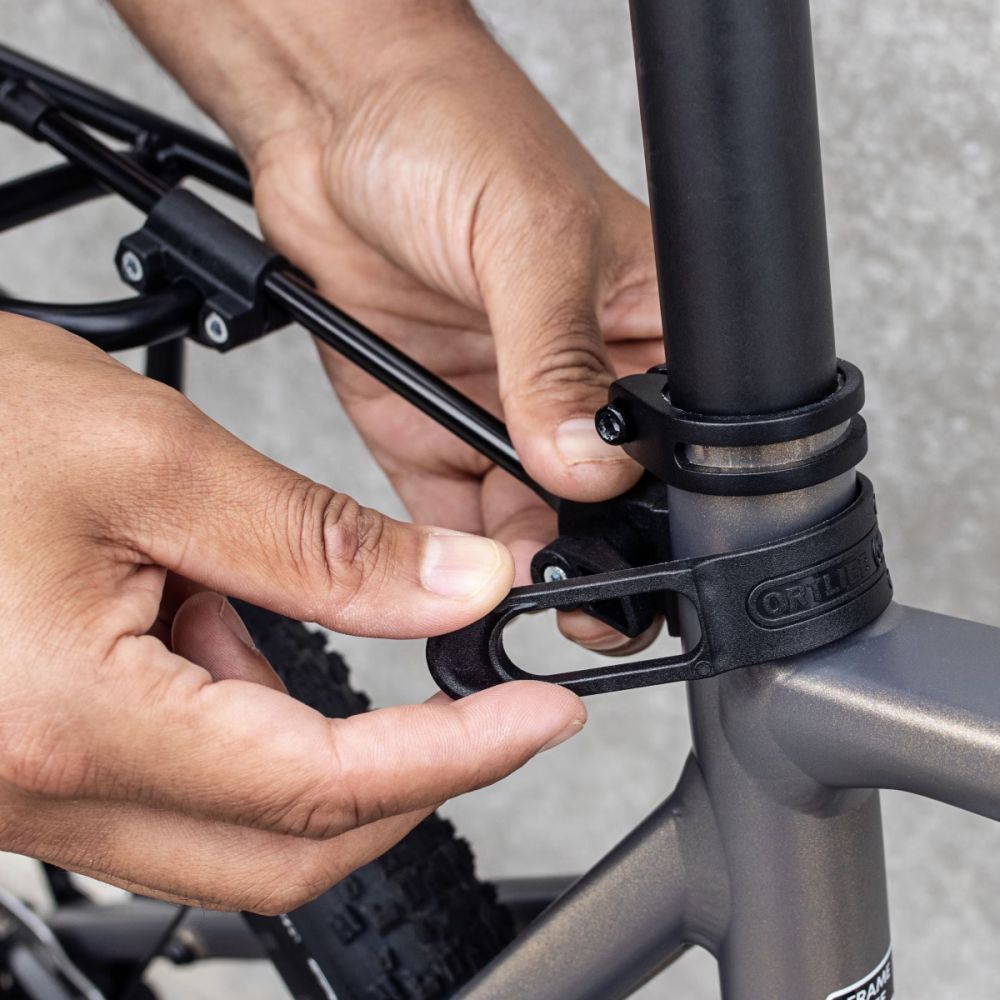

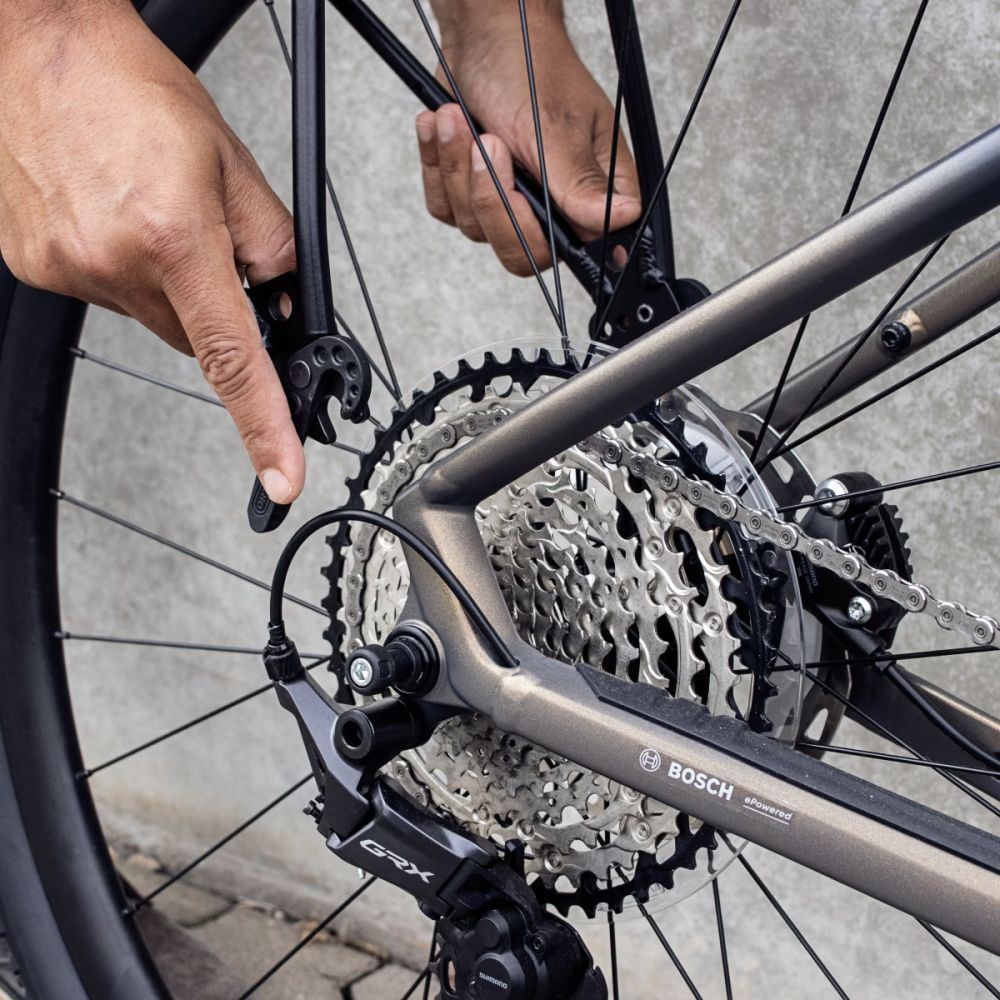

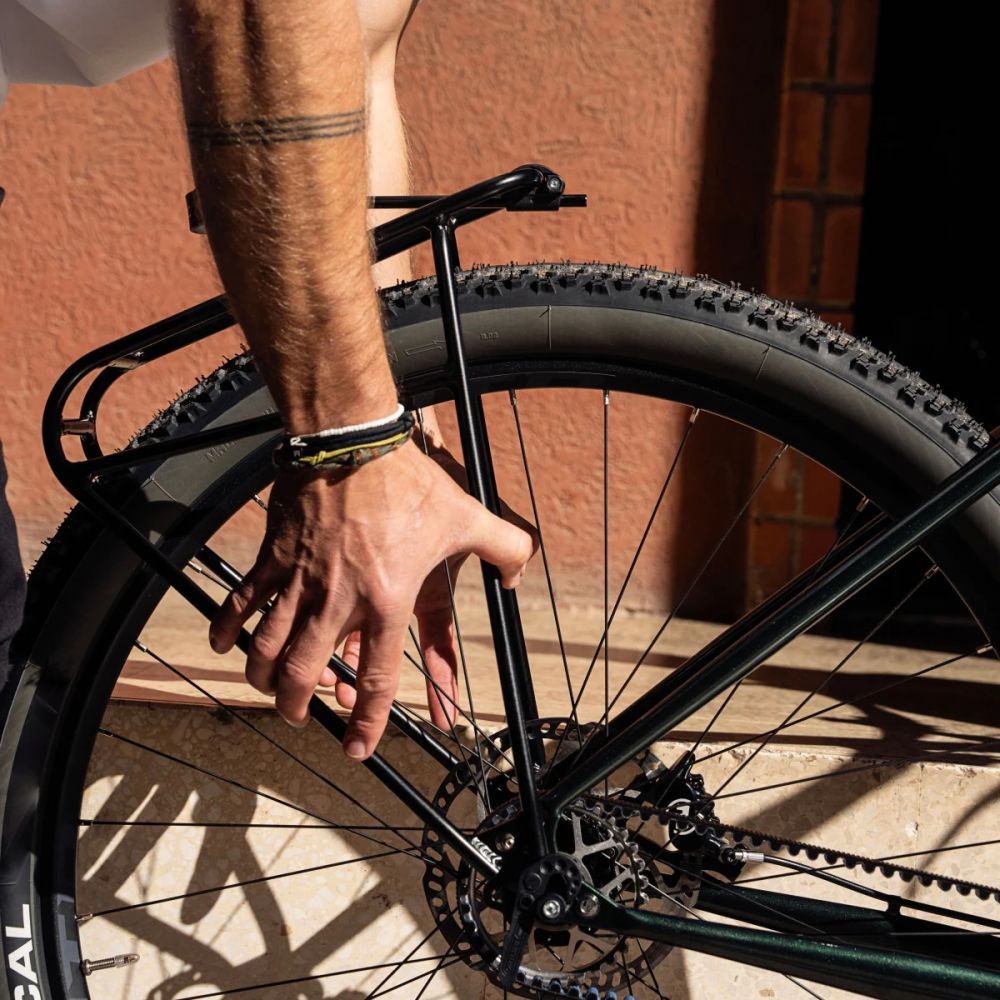

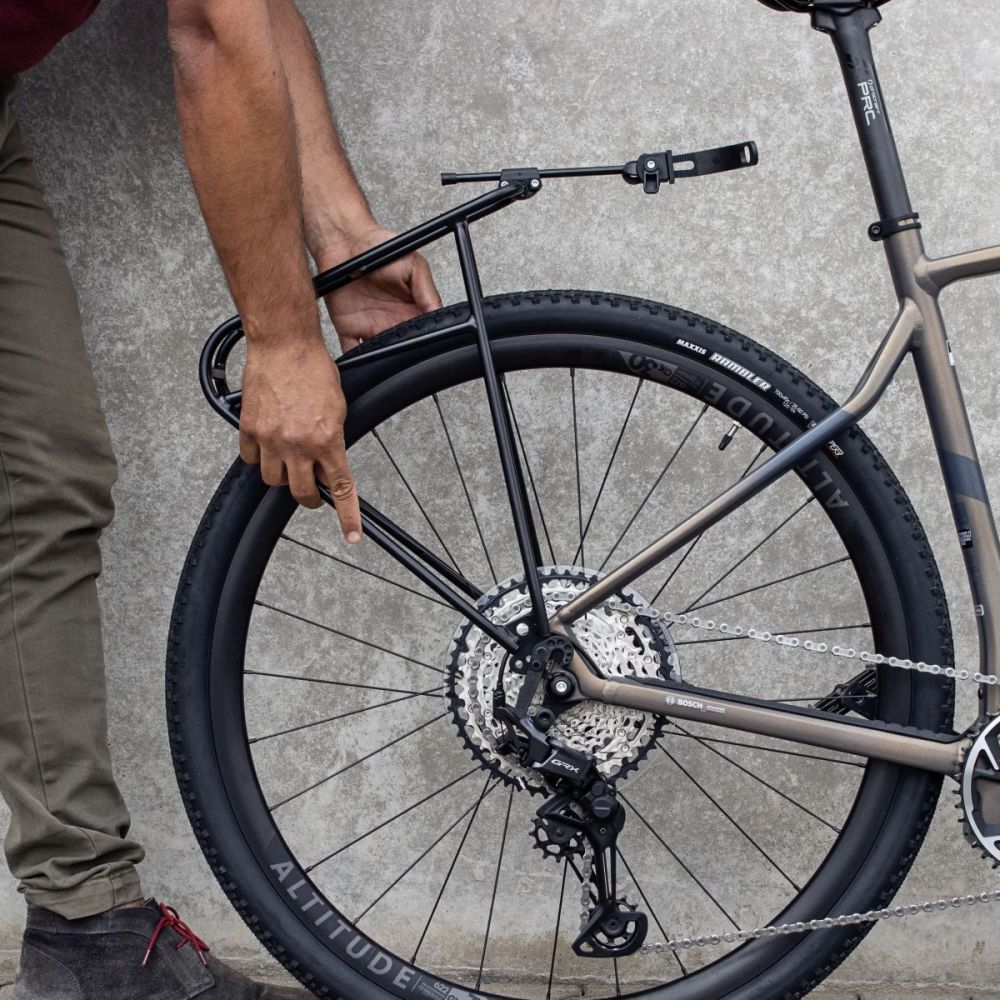

The ORTLIEB Quick Rack L quickly converts your bike into a cargo carrier without the need for a permanently installed luggage rack. After initial installation, the rack can be attached in approximately 15 seconds and removed in approximately 5 seconds. The L version is designed specifically for gravel and trekking bikes, as well as for thru-axle mounting.
20 kg load capacity and space for wider tires

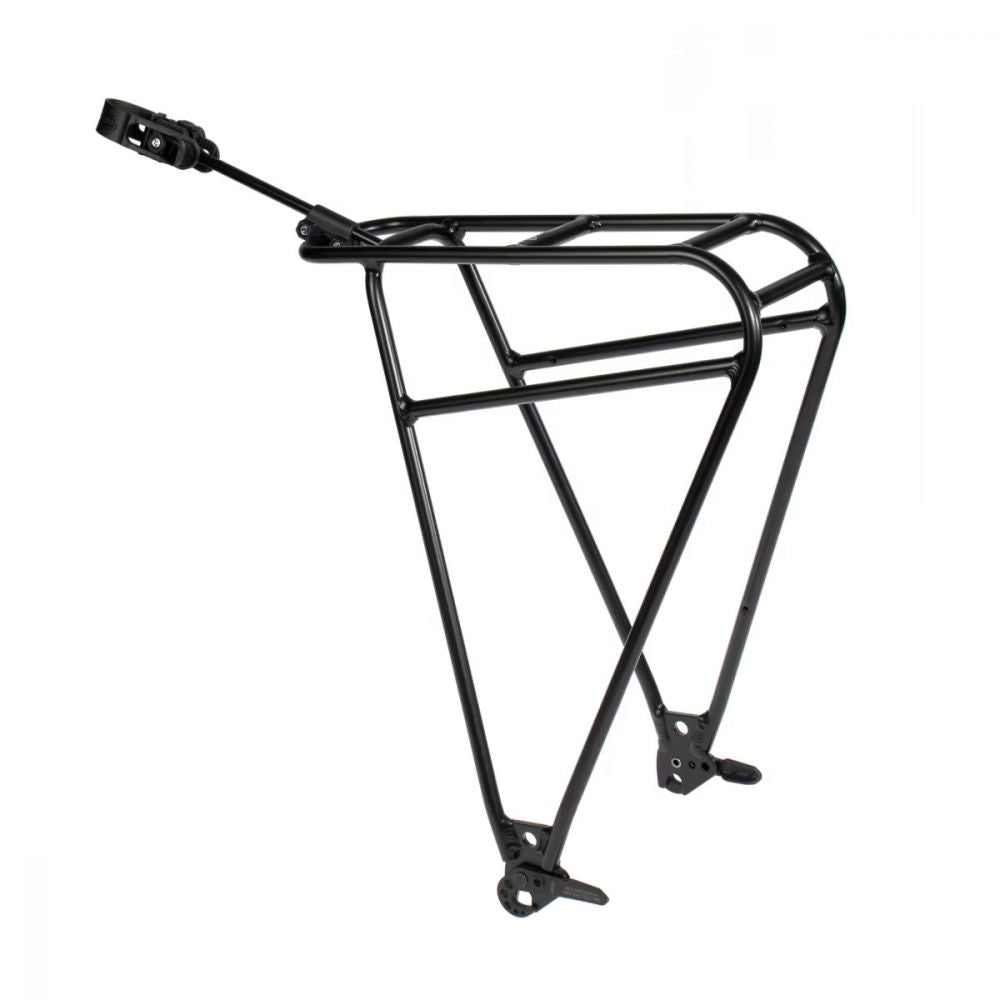

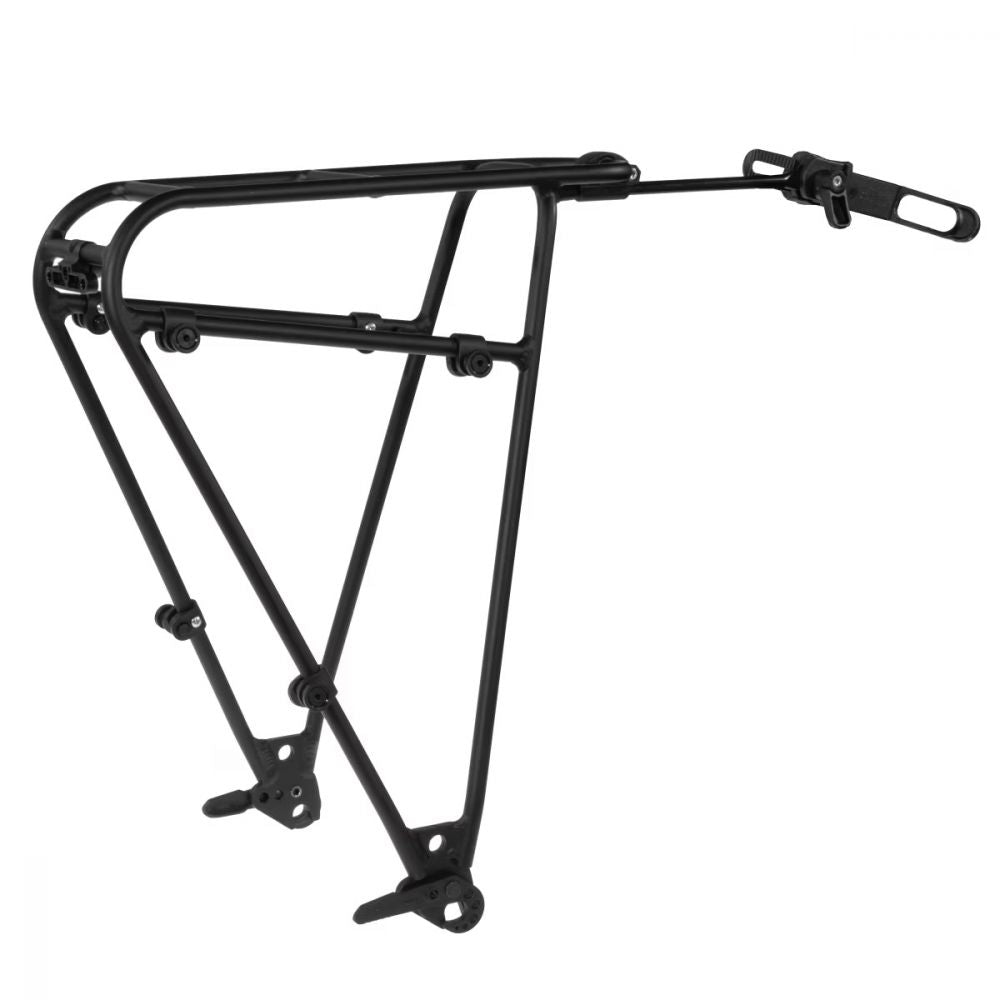

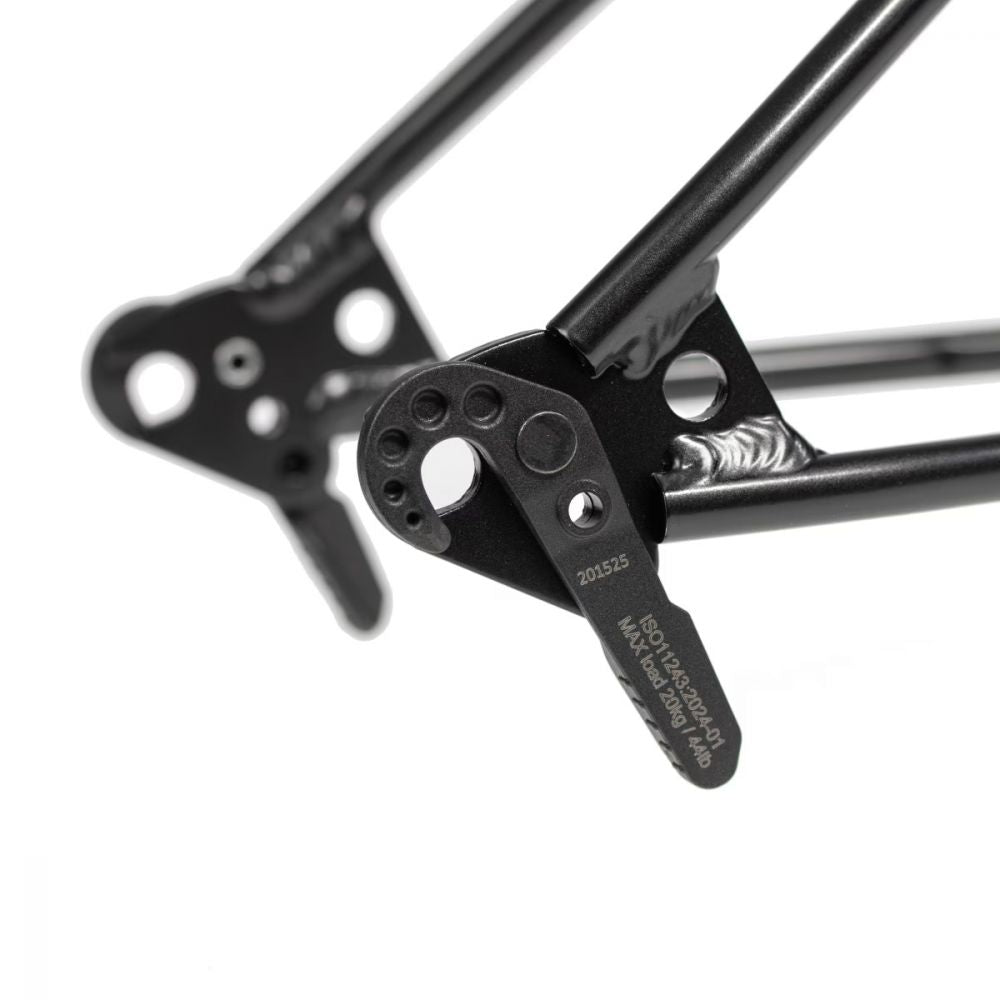

The Quick Rack L's aluminum construction carries up to 20 kg, yet the rack weighs only about 605 g. Mounted directly to the frame's M5/M6 mounting points or with the Seat Stay Adapter, the rack accommodates tires up to 29 × 3.0". With the ORTLIEB Thru Axle M6-Connector thru-axle, the tire clearance is up to 28 × 50 mm.

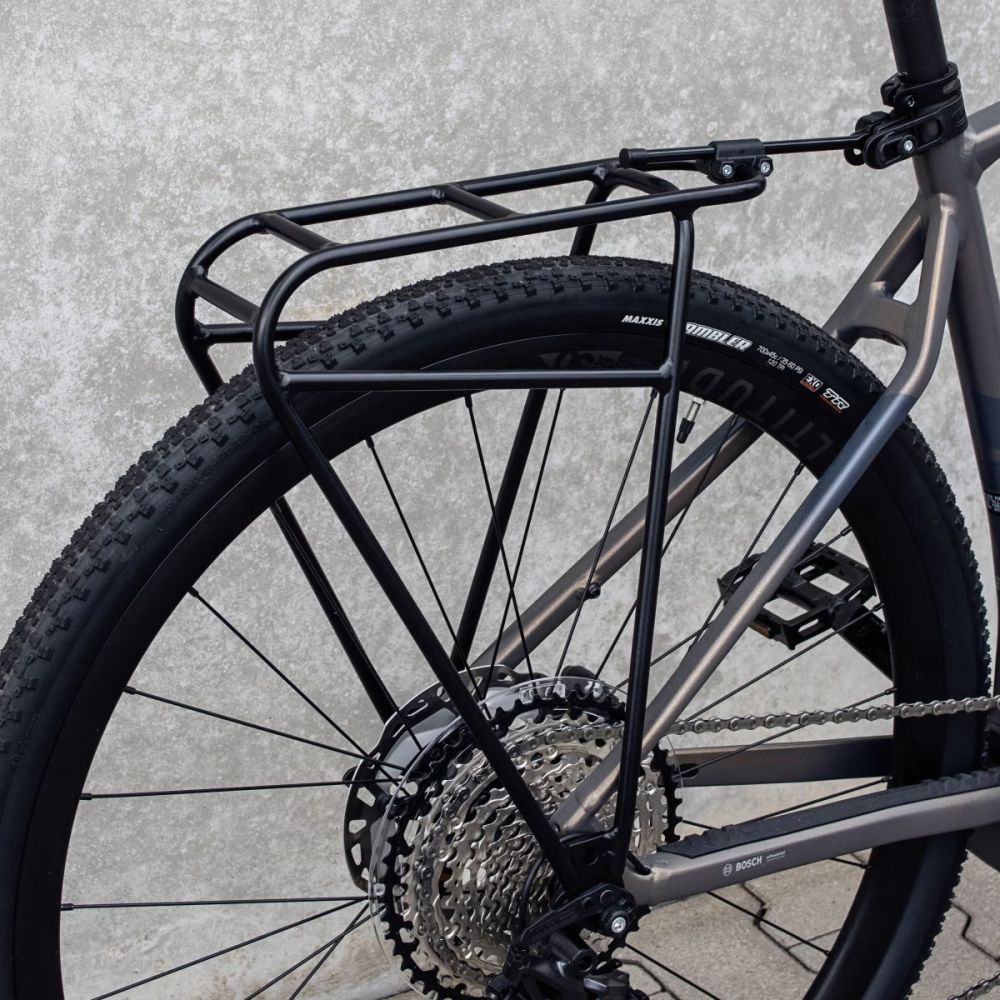

The rack is compatible with ORTLIEB Quick-Lock pannier systems, and the included QL3/QL3.1 fasteners also allow for the direct mounting of these panniers. The luggage rack can also be fitted with panniers from other manufacturers, provided the hooks fit a 10 mm tube.
Compatibility and technical specifications
Manufacturer: ORTLIEB
Model: Quick Rack L
Product number: F78110
EAN / GTIN: 4013051059404
Product type: removable rear luggage rack
Material: aluminum
Color: black
Weight: approximately 605 g
Maximum load: 20 kg
Tube diameter for panniers: 10 mm
Maximum tire size with direct mounting or Seat Stay Adapter: 29 × 3.0"
Maximum tire size with Thru Axle M6-Connector: 28 × 50 mm
Recommended use: gravel, trekking / touring
Mounting options:

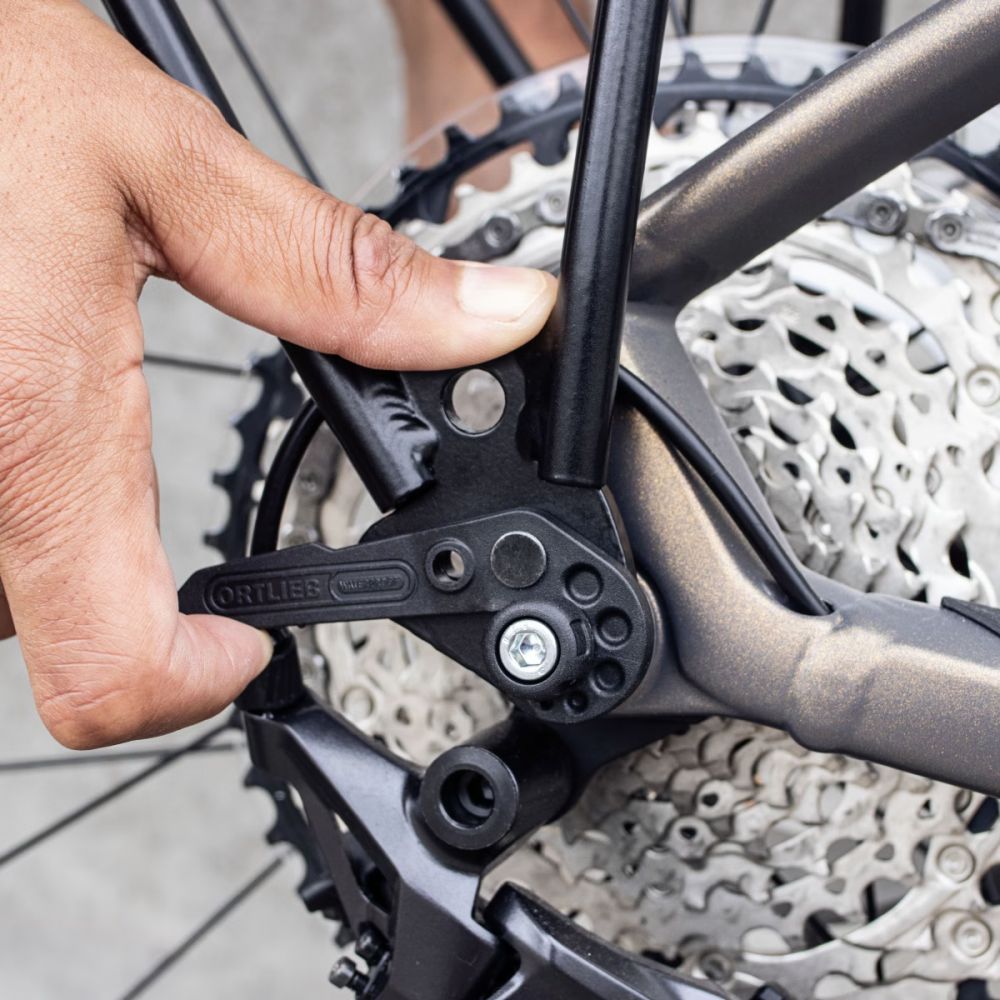

- to frame M5 or M6 threads
- with the ORTLIEB Quick Rack Seat Stay Adapter
- with the ORTLIEB Thru Axle M6-Connector thru-axle
Compatibility: ORTLIEB Quick-Lock panniers and other panniers equipped with compatible hooks.

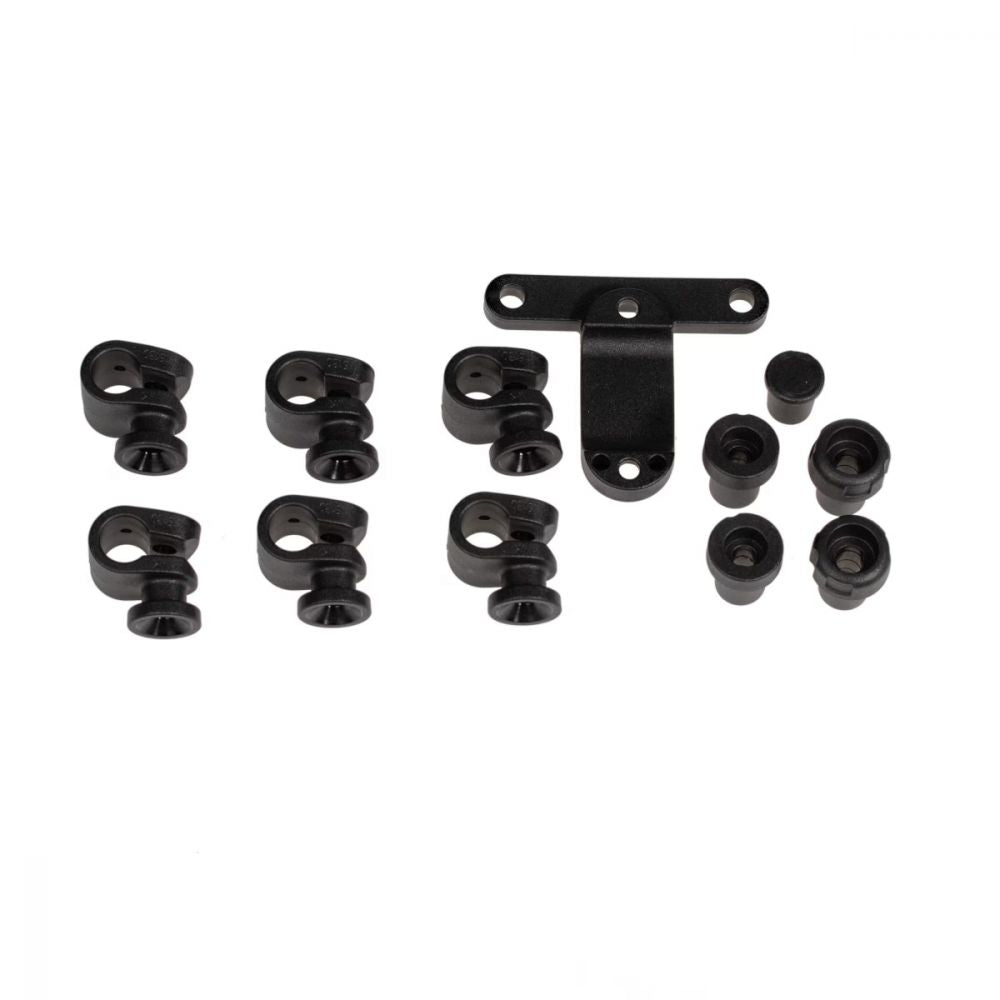

QL3 / QL3.1 fasteners: yes, included with the rack.
Installation time after initial setup: approximately 15 s
Removal time: approximately 5 s
Specifications
- Brand
- Ortlieb
Fit and specifications
- Manufacturer
- ORTLIEB
- Model
- Quick Rack L
- Product number
- F78110
- EAN / GTIN
- 4013051059404
- Product type
- removable rear rack
- Material
- aluminium
- Colour
- black
- Weight
- approx. 605 g
- Maximum load
- 20 kg
- Tube diameter for bags
- 10 mm
- Recommended use
- gravel, trekking / touring
- Compatibility
- ORTLIEB Quick-Lock panniers and other bags with compatible hooks.
- QL3 / QL3.1 mounts
- yes, included in the rack.
- Installation time after initial setup
- approx. 15 s
- Removal time
- approx. 5 s
