Oneup Clip Pedals Locking Pedals

Oneup clipless pedals

OneUp's highly anticipated clipless pedals, your new favorite pedals! Light enough for XC riding and durable enough for DH, so they work for all types of riding. Extremely thin, light, durable, and supportive. Compatible with Shimano cleats. Each pedal has 8 removable/replaceable pins. The pedals are easy to maintain yourself.

Body / Platform Material: aluminum
Axle Material: steel (Crmo)
Bearings: triple-sealed industrial bearings, DU bushings
Height: 14.4 mm (pedal body), 26.8 mm (cage)
Dimensions (L x W): 80 x 90 mm
Float: 5°
Release Angle: 12°
Number of Pins per Pedal: 8

Oneup Clip Pedals

Light enough for cross country and durable enough for downhill. OneUp Clip Pedals are an ultra thin, super light pedal with a large platform and a secure feel that you can fine tune. They’re SPD™ compatible and available in 8 colours.

These are your new favourite pedals.

Weight: 410g with pins (4 pins per side)

Thickness: 14.4mm (body), 26.8mm (binding)

Size: 80mm x 90mm (W x L)

Stance width: 57.5mm (center of clip to outside of crank face)

Float: 5° (12° release angle)

Cleats: SPD™ Compatible (includes 1mm cleat spacers for shoe fit tuning )

Bearing configuration: Inboard igus® Bushing and 3x outboard sealed cartridge bearings

Axle: Chromoly Steel with Black ED coating

Pins: Hollow M5x8mm threaded pins (self cleaning hex through hole)

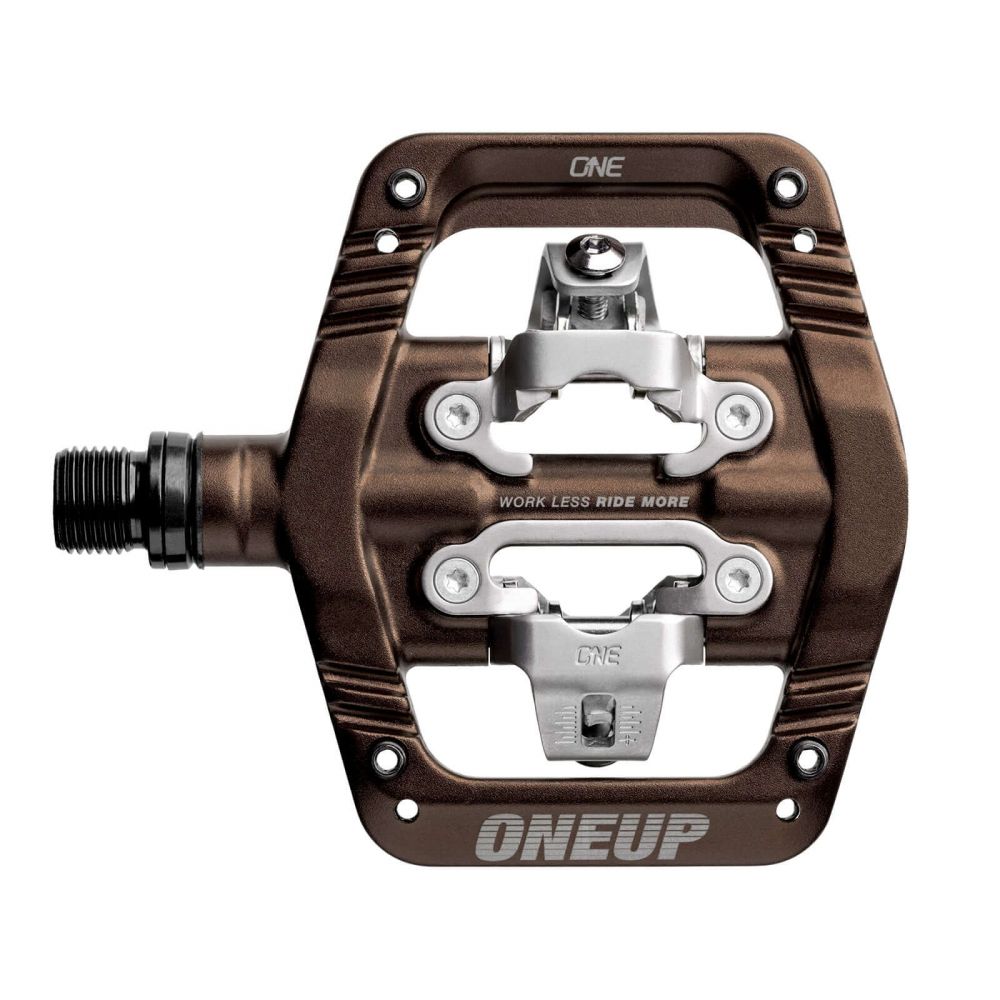

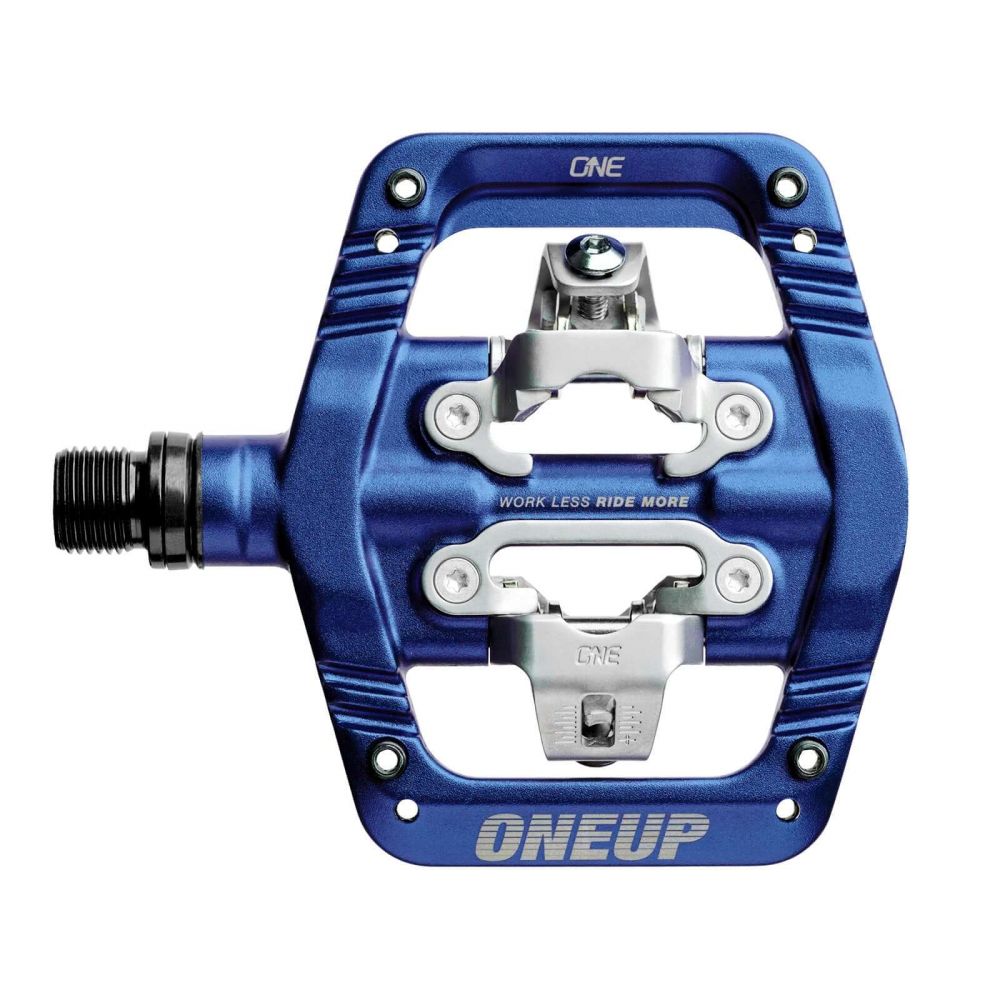

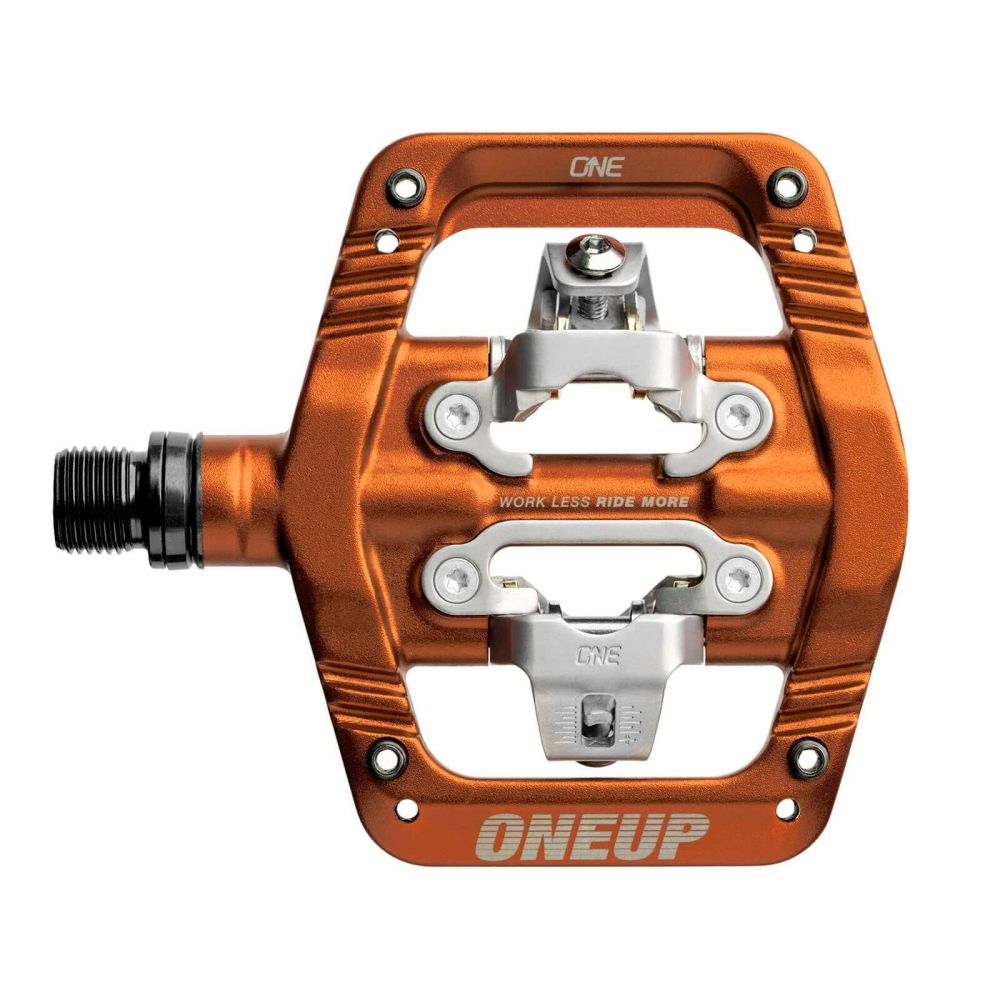

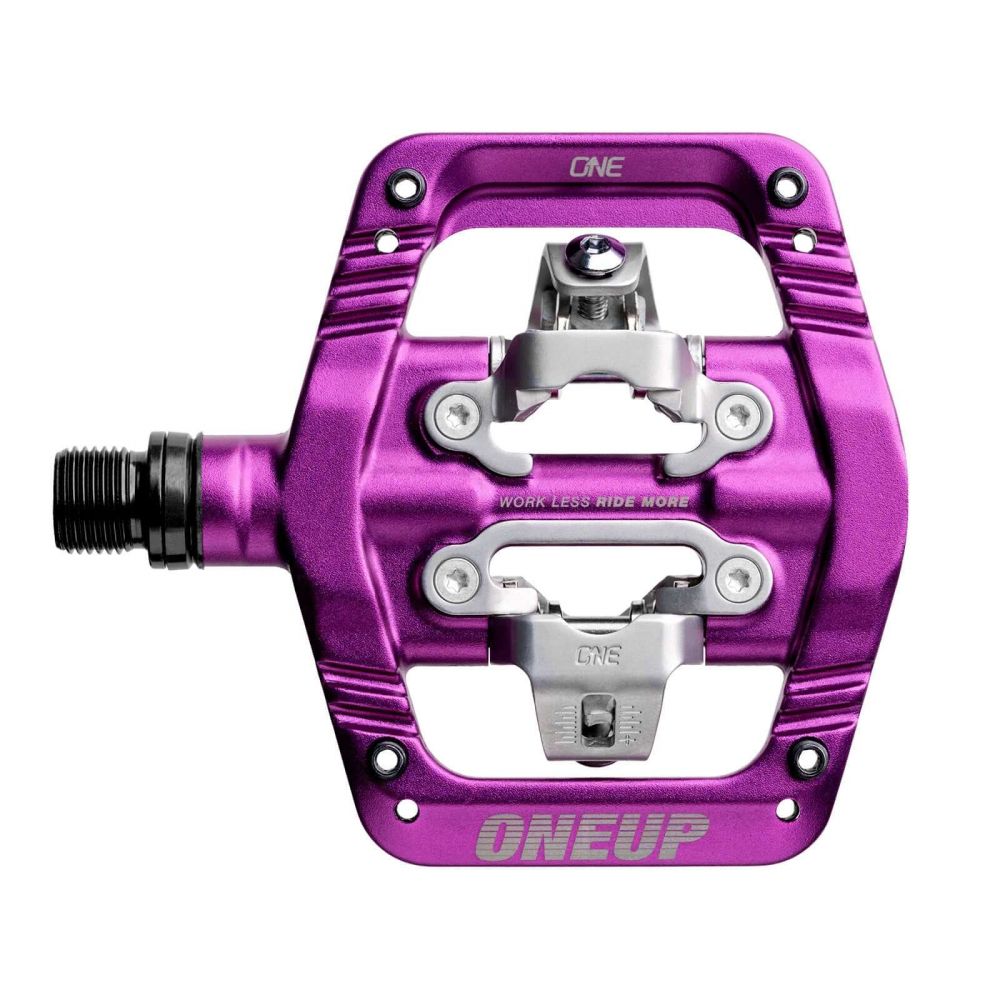

Colours: Black, Red, Green, Blue, Orange, Purple, Grey, Bronze

2x Clip Pedals (1x Left, 1x Right)

4x Installed hollow threaded pins per side (16x pins total)

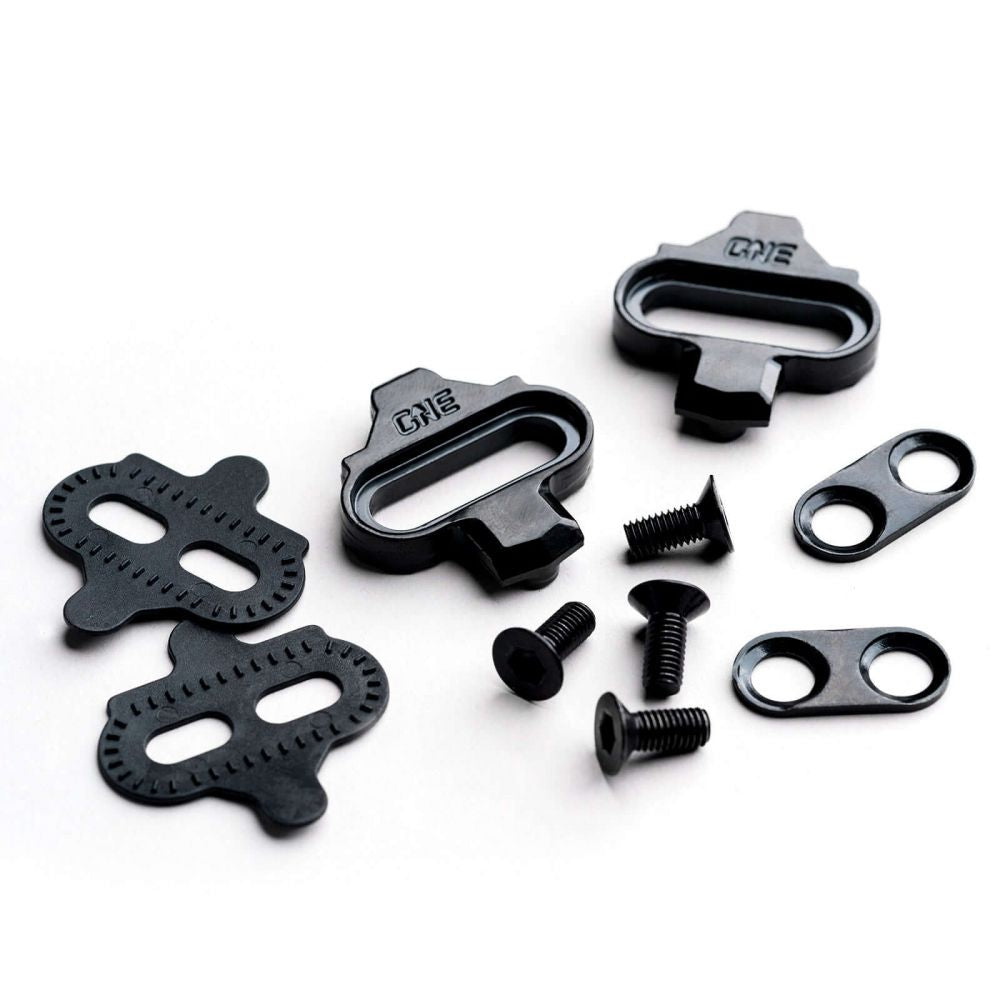

2x OneUp Cleats with included hardware

2x Cleat Spacers

1x Pedal Bearing Nut Tool

• Comes with SPD™ compatible cleats and 1mm cleat spacers for shoe fit tuning.
• Hollow, removable traction pins offer fine-tuning of grip and support, with a mud-clearing design that can be installed or removed from either side of the pedal.
• Included Pedal Bearing Nut Tool allows you to easily disassemble, clean, and grease your axle system.
• Custom, Stainless Steel, SPD™ Compatible Binding offers a locked-in feel with no unwanted play, and works with OneUp's own cleats and Shimano SPD™ cleats.
• 5 degrees of float and 12 degree release angle.
• 1 year manufacturer warranty.
• Wide-range release tension adjustability is secure enough for racers, yet forgiving enough for beginners, with an indicator to easily match the tension on all four bindings.

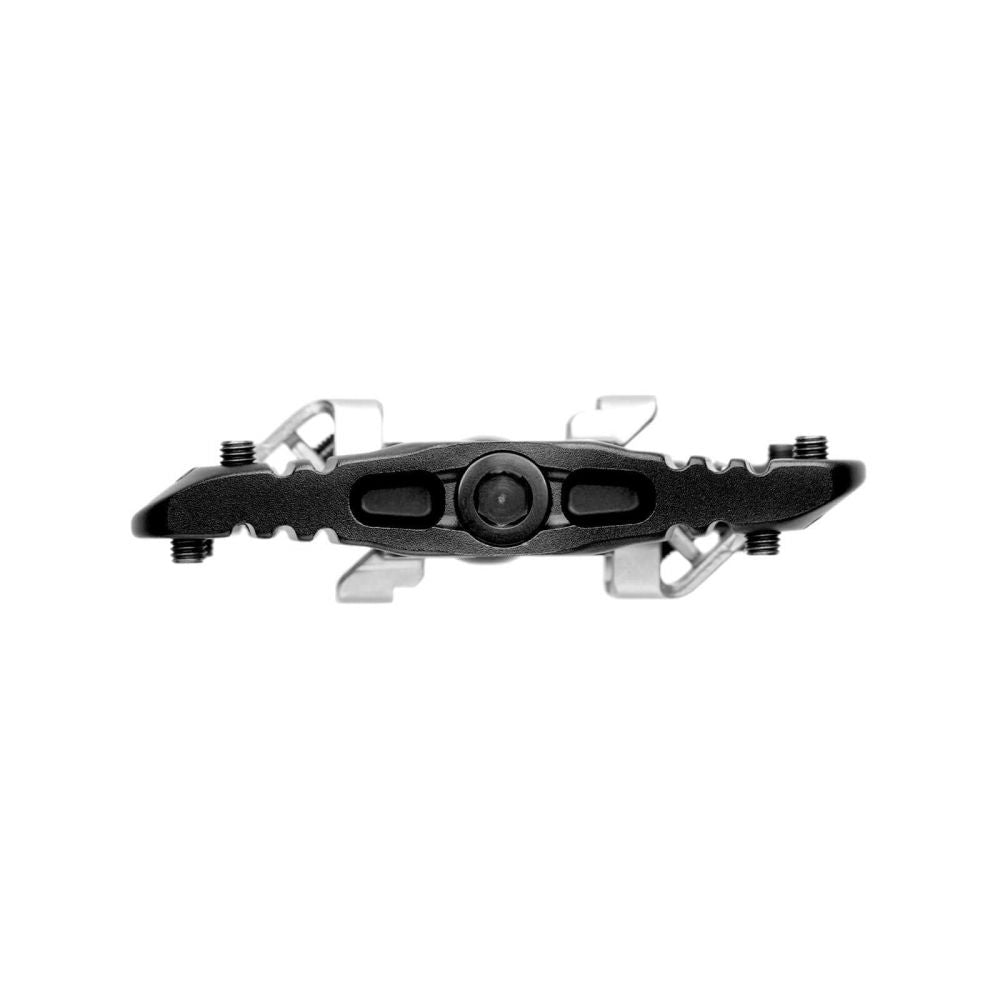

Ultra Thin.

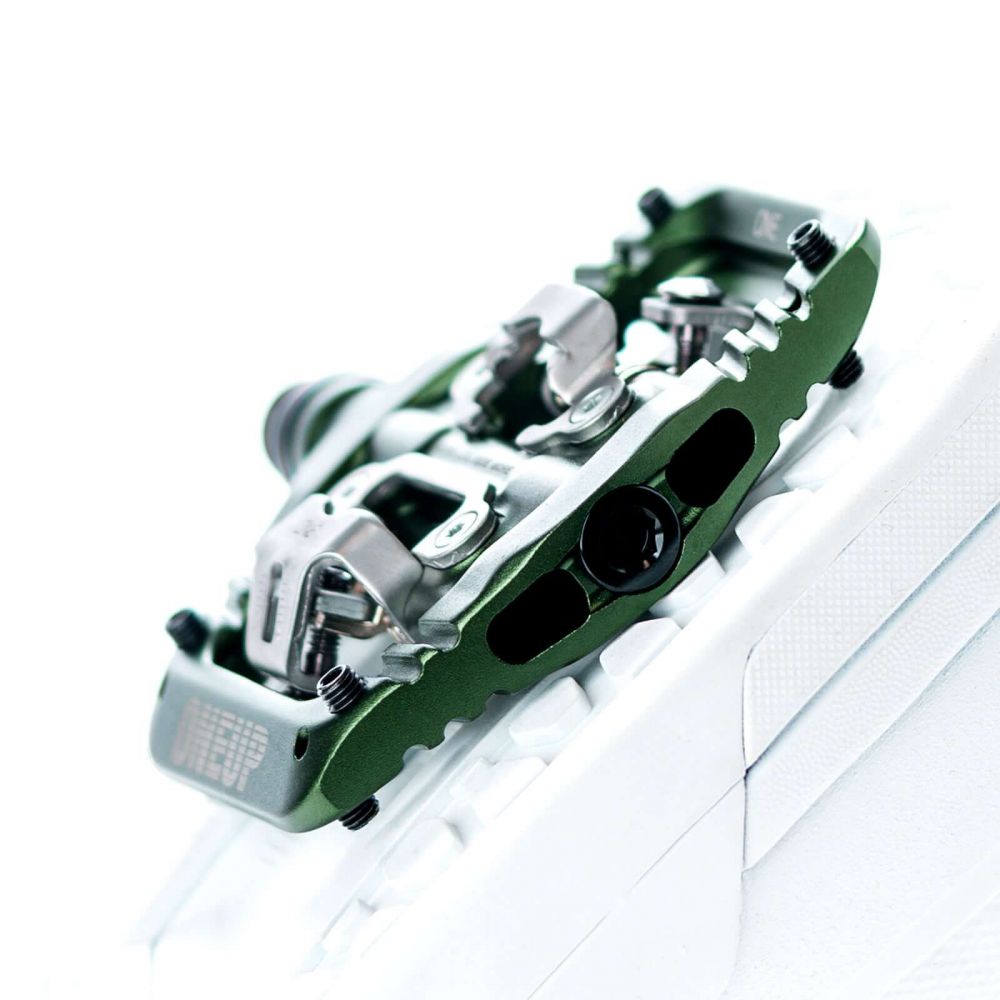

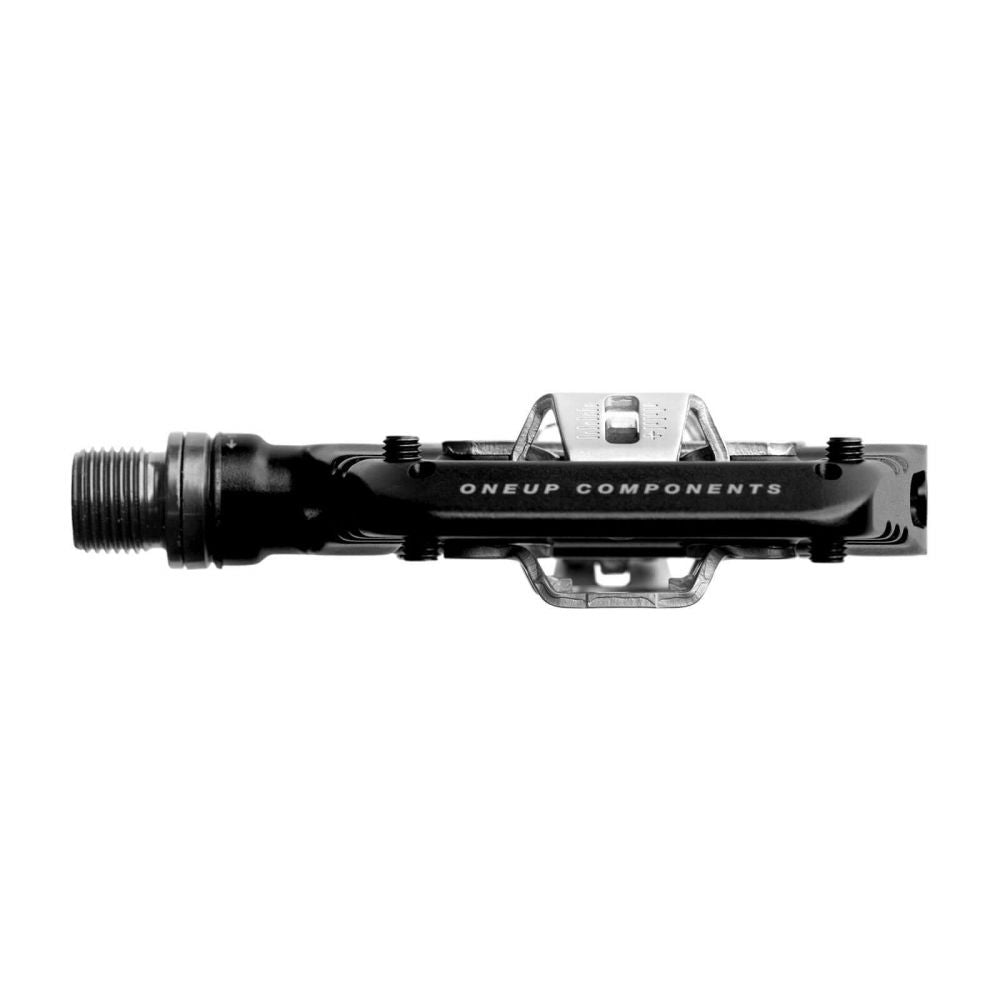

At only 26.8mm, these are thinnest mountain bike clip pedals in the world. And they have an extra large, DH-sized platform. The ultra thin profile means you get a larger platform that’s less prone to pedal strikes.

Large and Light.

Many other clip pedal platforms don’t even touch your shoe when clipped in. Our lightweight, large platform pedal is designed to actively support your shoe and give you more confidence and control.

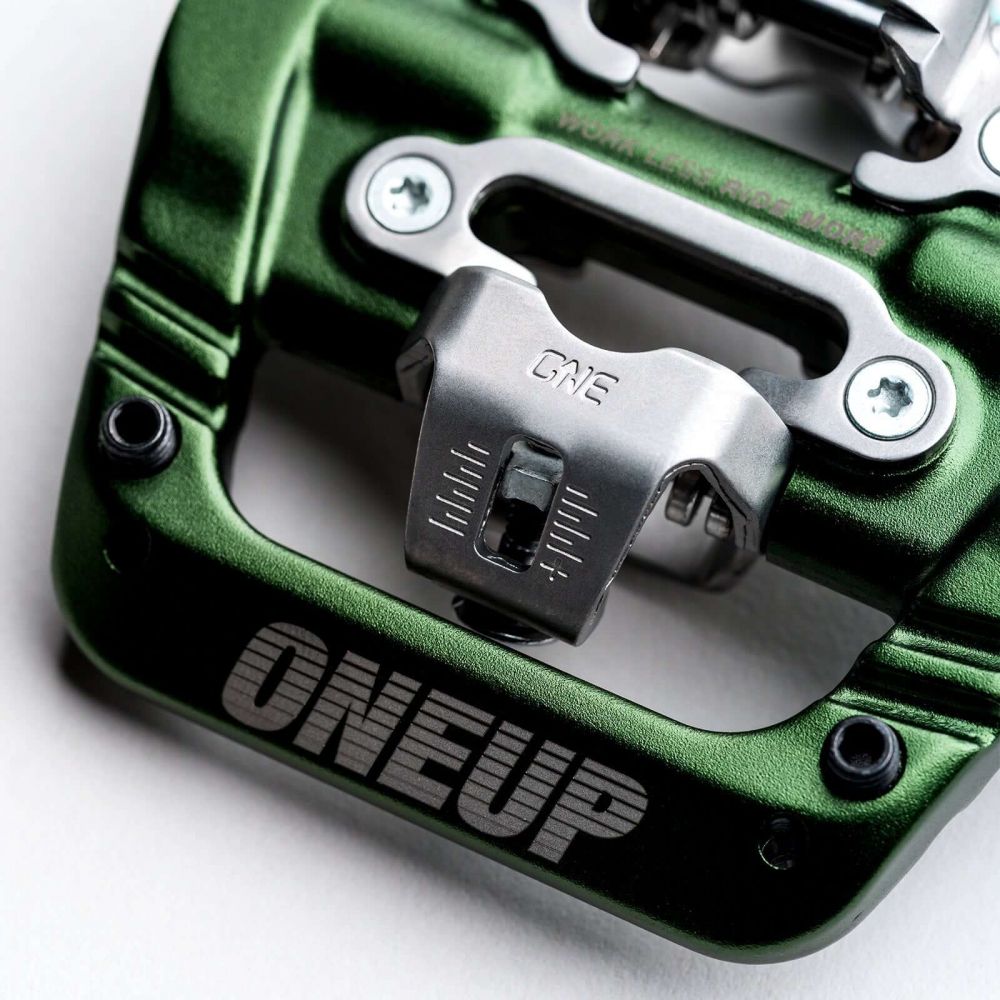

Custom Stainless Steel Binding.

Our SPD™ compatible mechanism gives you 5° of float and a 12° release angle with no unwanted play. The tighter cleat fit doesn’t sacrifice float and delivers a locked-in and secure feeling.

Adjustable Cleat Fit.

Fine tune the feel of your pedals with a wider range of spring tension adjustment than Shimano, removable pins and the included cleat spacers for the perfect fit with any shoe.
