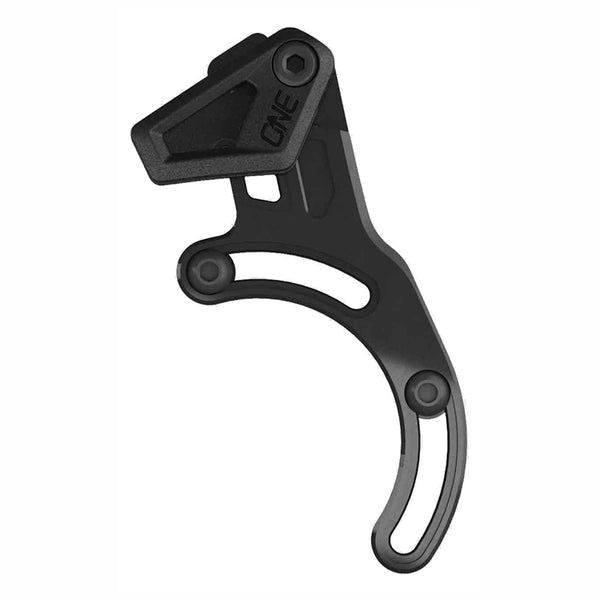

ONEUP CHAIN GUIDE BOSCH - ISCG05 Black

OneUp E-Chainguide Bosch

Eliminate dropped chains forever and add a touch of colour to your e-bike with the new OneUp Components Bosch Chain Guide. Available in 7 colours.

The OneUp Bosch Chain Guide is lightweight and incredibly easy to install. The top guide has a tool-free flip feature that allows easy access to your chain for cleaning and maintenance.

Top guide pieces are available in 7 colours to perfectly match your OneUp Composite Pedals, Grips and EDC Lite.

Compatible with 32T to 38T chainrings.

Weighs just 45g.

Features:

• Built to work with Bosch motors
• Includes black top guide piece. 6 other colours sold separately
• Tool-less upper guide flip
• Install without removing your cranks
• Mounts directly to motor
• Single tool install and adjustment (4mm hex)
• Black Stainless-Steel hardware
• Patented US 10,053,188 Other Patents Pending

Specification:

Weight: 45g

Capacity: 32-38T

Chainline: up to 6mm adjustment using included spacers

Mount: Bosch

Colour: Black top guide piece included. Blue, Green, Orange, Purple, Red, Turquoise sold separately.

Material: Back Plate - 7075 aluminum, Top Guide - glass reinforced thermoplastic

COMPATIBILITY

Not compatible with 2021 Orbea Rise Alloy frames

WHY DO I NEED A GUIDE AND A NARROW WIDE CHAINRING?

NW rings are awesome, but they're not perfect and every once in a while you can drop a chain while riding. On a social ride this means getting dropped by your friends. But when racing an Enduro a dropped chain can cost you the podium, which is why almost every EWS pro runs both a chainguide and narrow wide chainring.

FEATURES

• Tool less upper guide flip
• Install without removing your crank
• Single tool install and adjustment (4mm hex)
• Boost compatible
• Oval Compatible
• Black Stainless Steel hardware
• Patented US 10,053,188 Other Patents Pending

SPECS

Weight: 40g
Capacity: 26-38T
Chainline: 7.5mm adjustment
Mount: ISCG05
Color: Black top guide piece included
Material: 7075 aluminum, top guide glass reinforced thermoplastic

GUIDE SETUP INSTRUCTIONS

1. Remove top guide by removing the front top guide nut with a 4mm hex (never adjust the rear T25 bolt).
2. Set slider in the highest position (inserted a 4mm into the hole on the bottom left of the top device with the chain link symbol and backed it out anti-clockwise)
3. Hold backplate directly against ISCG05 tabs. Check for clearance between the back side of the guide and the bike frame (use included 2.5mm spacers if necessary to space the backplate away from the frame).
4. Rotate backplate until slider adjustment bolt is directly above the crank axle and torque bolts to 5Nm
5. With crankset and chain installed, use spacer shim block to measure clearance between back plate and chain
6. Determine the corresponding number of chainline shims required
7. If more than 5 shims are required, install the supplied 2.5mm washers behind the backplate and return to step 2
8. Assemble top guide with spacers and tighten bolt to 3Nm
9. Insert a 4mm hex through the hole in the inner top guide, loosen height adjustment bolt and lower the tool onto the chain. Torque to 3Nm to set height
