Canyon Grizl:ONfly CF Trail, size M

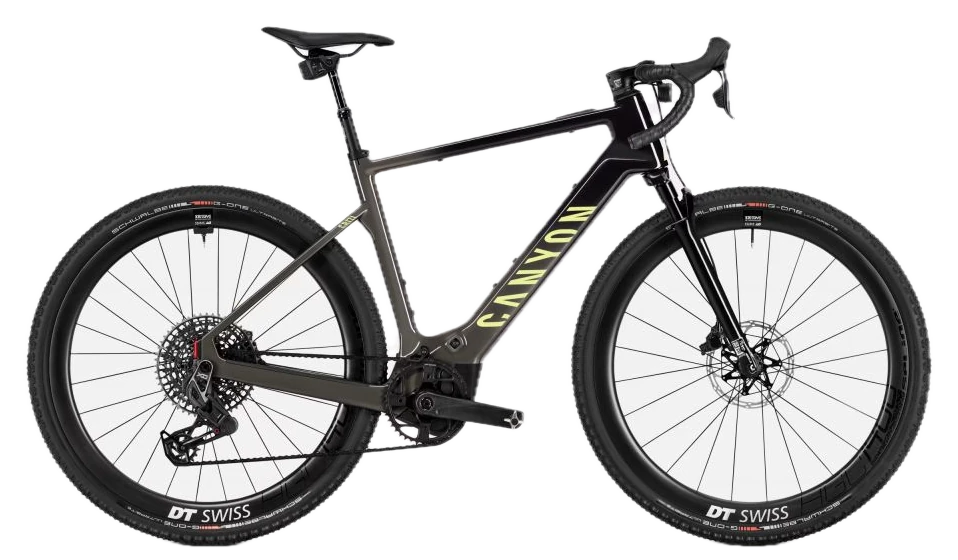

Canyon Grizl CF Trail – lightweight electric gravel bike with a carbon frame, Bosch SX motor and high-end components

The Canyon Grizl CF Trail is a modern electric-assist gravel bike for riders who want to combine fast gravel riding, light off-road riding, long rides and more technical adventures on one bike. This bike has been ridden 1,650 km.

This size M Canyon Grizl CF Trail is best suited to riders around 178–184 cm tall.

The carbon Canyon Grizl CF frame makes the bike lightweight, stiff and efficient to pedal. Its relaxed riding position, slacker geometry and clearance for tires up to 50 mm make it considerably more versatile than a road-oriented gravel bike. The Grizl CF Trail is ideal for gravel roads, forest roads, light trails, bikepacking and long adventure rides.

The Bosch Performance Line SX motor provides electric assistance in a lightweight, sporty package. The 400 Wh Bosch CompactTube battery keeps the frame sleek and the weight reasonable. This makes the Grizl an electric gravel bike that still feels like a bicycle, not a heavy, moped-like vehicle.

The Trail build makes the bike considerably more capable than a standard gravel bike: a RockShox Rudy Ultimate XPLR 40 mm suspension fork, RockShox Reverb AXS XPLR dropper post, DT Swiss HGC1400 carbon wheels, Schwalbe G-One Ultrabite 50 mm tires and SRAM AXS drivetrain make for a very high-quality package.

---

An electric gravel bike for long rides, rough roads and exploring trails

The Canyon Grizl CF Trail is designed for riders who don’t want to limit their routes to paved roads or smooth gravel. The 50 mm-wide Schwalbe G-One Ultrabite tires, 40 mm of front suspension travel and RockShox Reverb AXS XPLR dropper post give you confidence when the route gets rough, wet or more technical.

SRAM Force eTap AXS shifters are paired with a SRAM X0 Eagle AXS Transmission rear derailleur and a 10–52T SRAM X0 Eagle cassette. The result is an exceptionally wide gear range that’s suited to both fast gravel riding and steep climbs, even with a loaded bike.

The DT Swiss HGC1400 carbon wheels are a high-end wheelset suited to electric gravel riding. The 42 mm-deep carbon rims and 24 mm internal width support wide gravel tires and deliver speed, stability and a responsive ride.

The Lupine C14 rear light, Bosch 4A charger, Canyon tools and included accessories make this a ready-to-ride package. It’s a great option for riders looking for an electric gravel bike with premium components without paying the full price of a new bike.

Key size M measurements:

• Recommended rider height: approx. 178–184 cm
• Saddle height adjustment range: 696–845 mm
• Standover height: 832 mm
• Reach: 403 mm
• Stack: 611 mm
• Stem: 60 mm
• Crank length: 175 mm

---

Specifications and features

Key features

• Used electric gravel bike / e-gravel
• Ridden 1,650 km

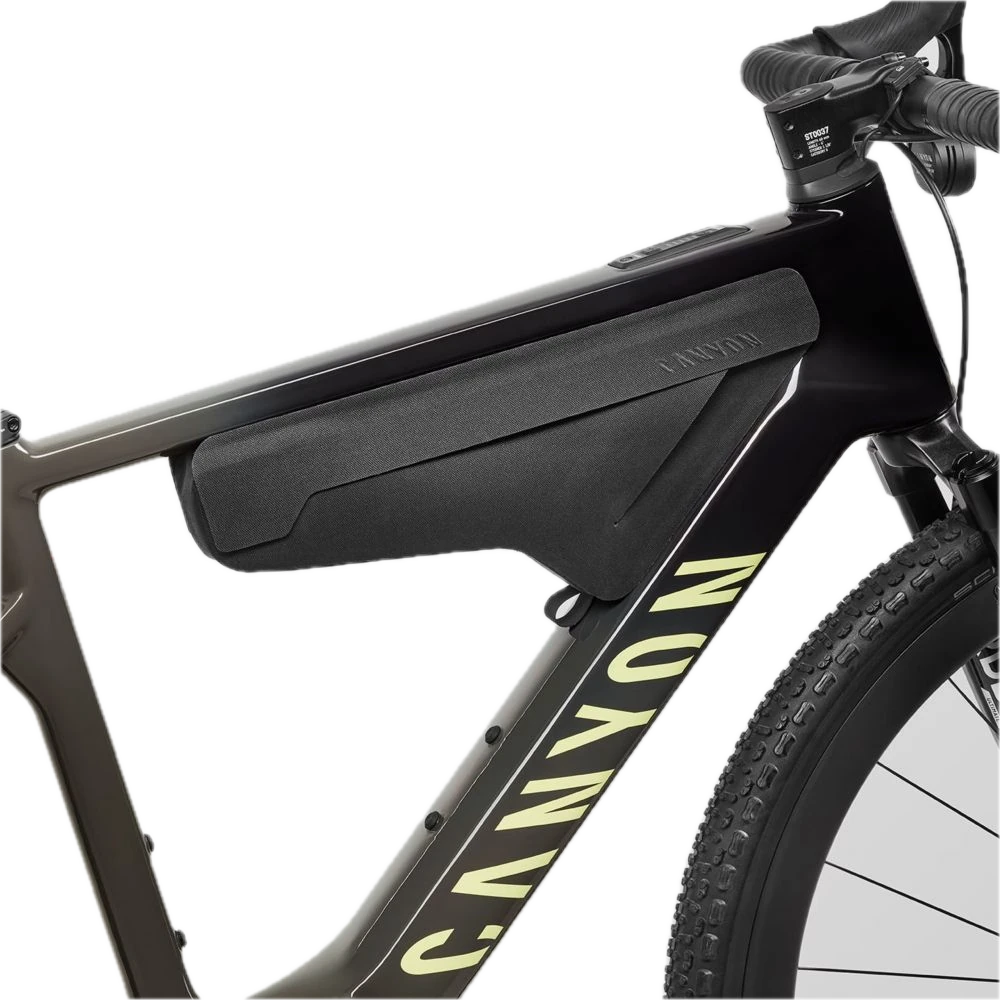

• Lightweight Canyon Grizl CF carbon frame

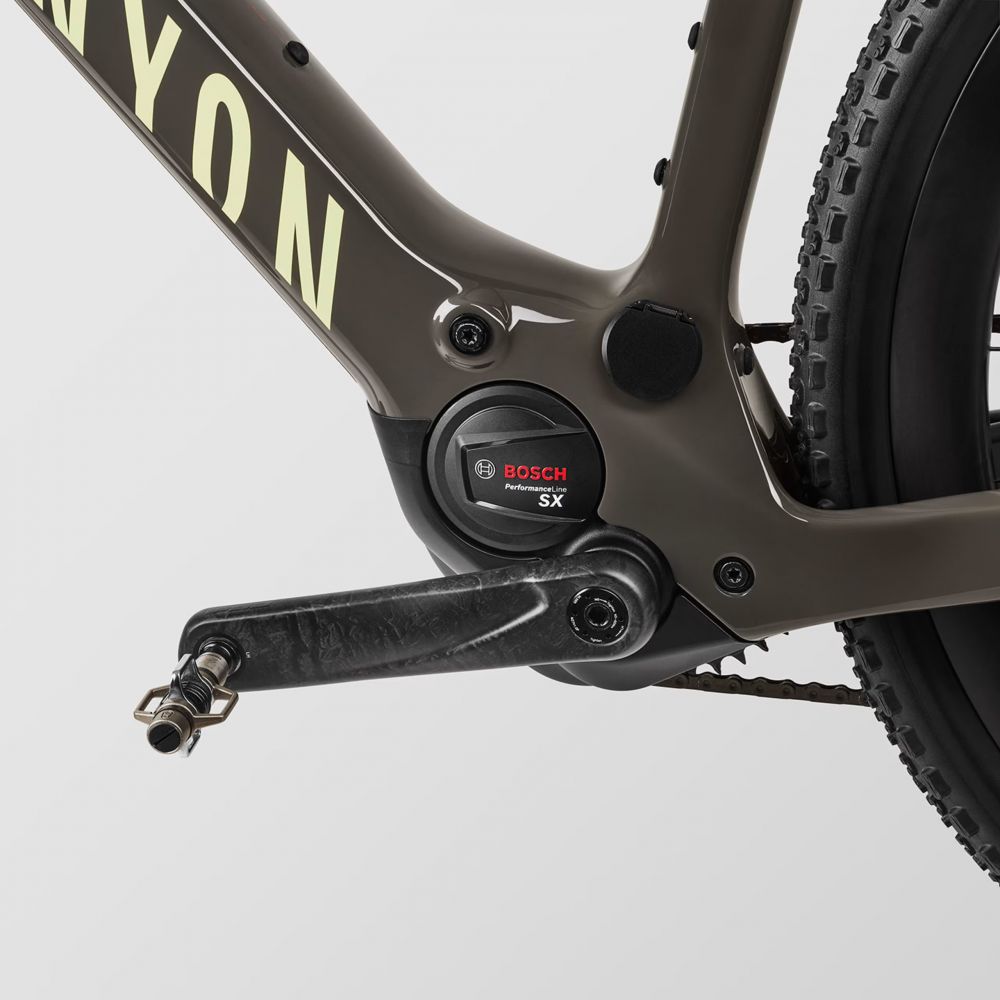

• Bosch Performance Line SX motor
• Bosch CompactTube 400 Wh battery

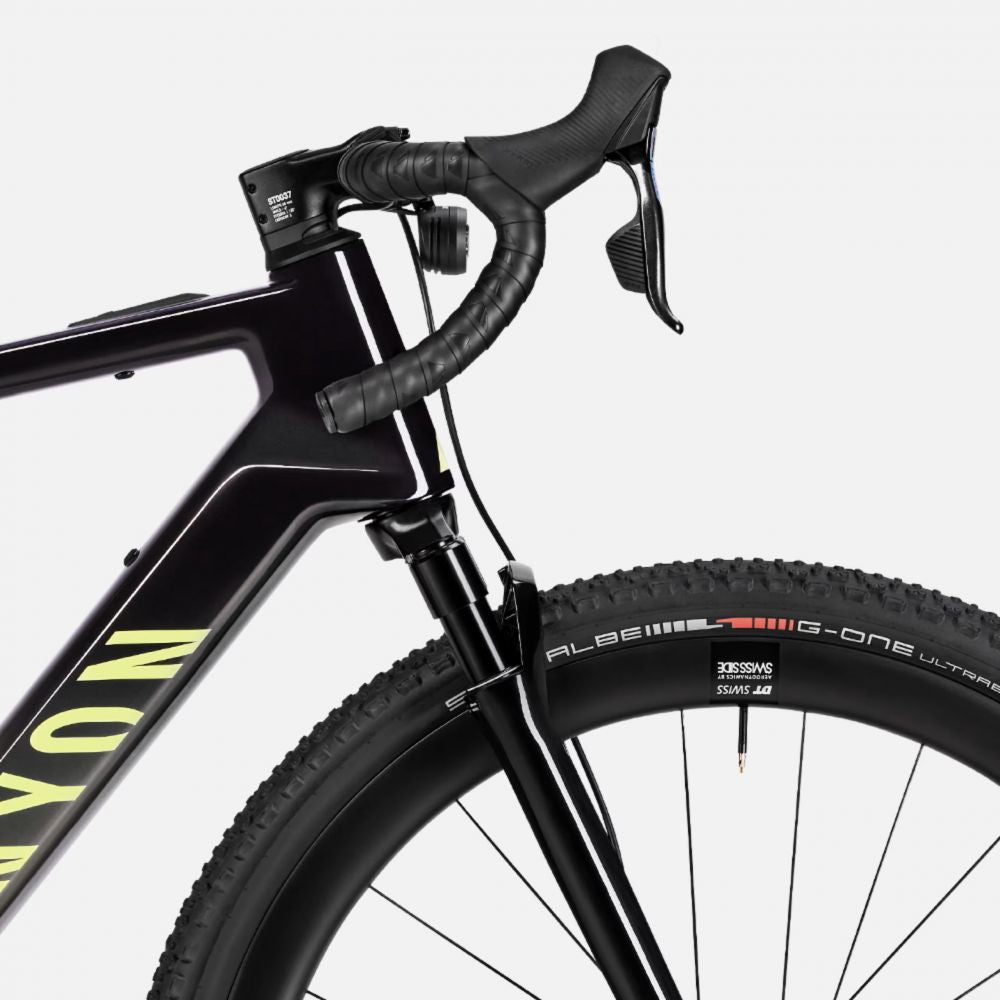

• RockShox Rudy Ultimate XPLR 40 mm suspension fork
• RockShox Reverb AXS XPLR dropper post
• SRAM Force eTap AXS shifters

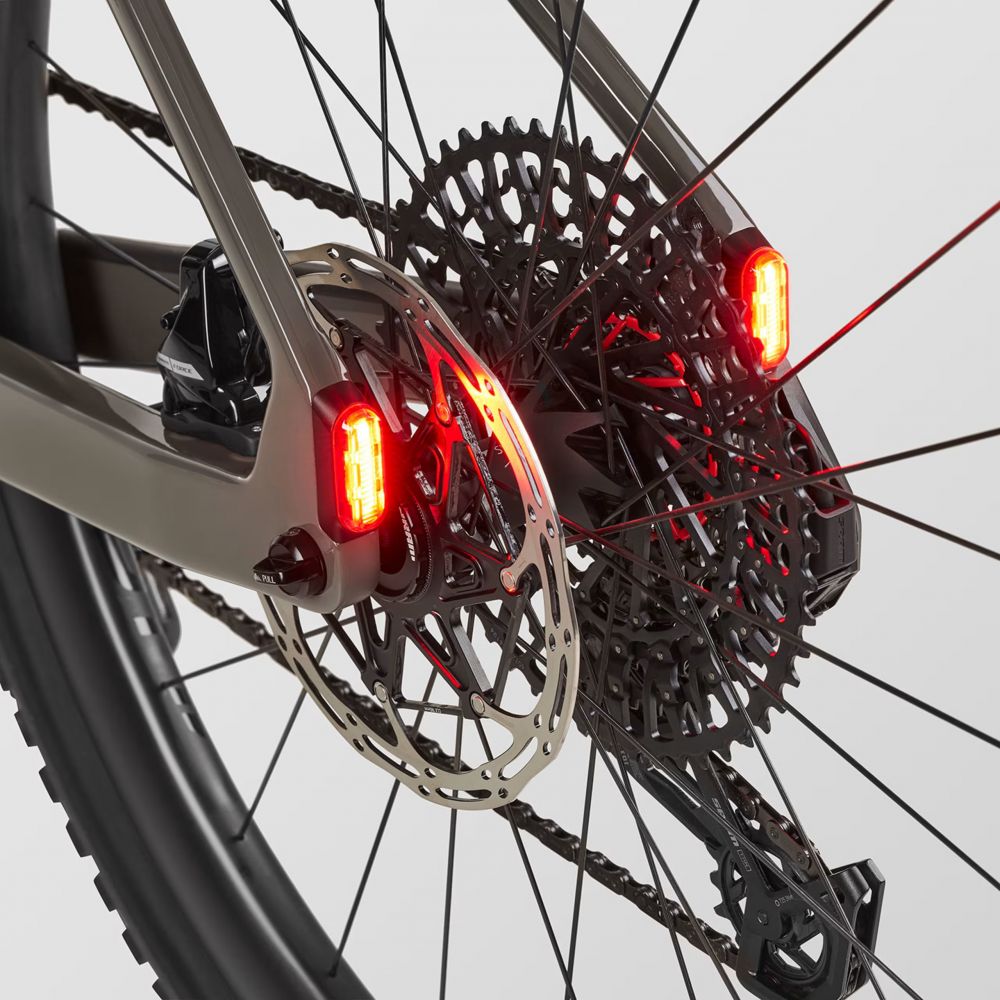

• SRAM X0 Eagle AXS Transmission rear derailleur
• SRAM X0 Eagle 10–52T 12-speed cassette
• DT Swiss HGC1400 carbon wheels
• Schwalbe G-One Ultrabite 50 mm tires
• SRAM Centerline X 180 mm brake rotors
• Fizik Argo Terra X5 saddle
• Lupine C14 rear light
• Includes Bosch 4A charger and Canyon accessories
• Total weight: 15.98 kg

---

Specifications

Frame and fork

• Frame: Canyon Grizl CF
• Frame material: Carbon
• Frame weight: approx. 1,620 g
• Frame size: M
• Rear axle: 12x142 mm
• Tire clearance: up to 50 mm
• Fork: RockShox Rudy Ultimate XPLR
• Fork travel: 40 mm
• Front axle: 12x100 mm
• Fork offset: 44 mm
• Steerer tube: 1 1/8” – 1.5”
• Fork tire clearance: up to 50 mm
• Seatpost clamp: Canyon GP0438-01 Seat Clamp

Electrical system

• Motor: Bosch Performance Line SX BDU314Y
• Motor torque: 55 Nm
• Possible upgrade: 60 Nm with the Bosch Performance Upgrade, if available and activated
• Main battery: Bosch CompactTube 400 Wh
• Charger: Bosch 4A
• Additional battery / electrical system accessory: SRAM Powerpack, according to the product information

Drivetrain

• Rear derailleur: SRAM X0 Eagle AXS Transmission
• Rear derailleur cage: Long
• Rear derailleur weight: approx. 445 g
• Shift/brake levers: SRAM Force eTap AXS
• Cassette: SRAM X0 Eagle XS-1295
• Speeds: 12-speed
• Cassette range: 10–52T
• Crankset: FSA CK-703
• Crank length: 175 mm
• Chainring: FSA 42T Spider Bosch
• Chain: SRAM X0 T-Type
• Chain guide: Canyon GP0455-01 Chainguide

Brakes

• Levers: SRAM Force eTap AXS
• Brake rotors: SRAM Centerline X Rounded Edges
• Rotor size: 180 mm
• Rotor weight: approx. 138 g

Wheels and tires

• Front wheel: DT Swiss HGC1400 Spline
• Rear wheel: DT Swiss HGC1400
• Front axle: 12x100 mm
• Rear axle: 12x142 mm
• Rotor mount: Center Lock
• Rim depth: 42 mm
• Internal width: 24 mm
• Rim material: Carbon
• Front wheel weight: approx. 773 g
• Rear wheel weight: approx. 1,002 g
• Tires: Schwalbe G-One Ultrabite Evolution Line
• Tire size: 50-622
• Tire width: 50 mm
• Use: Gravel

Cockpit

• Stem: Canyon ST0037
• Stem material: Aluminum
• Steerer tube diameter: 1 1/8”
• Handlebar clamp diameter: 31.8 mm
• Handlebar: Canyon HB0064 Ergo
• Handlebar material: Aluminum
• Handlebar shape: Flared drops
• Bar tape: Canyon Ergospeed Gel
• Bar tape color: Black

Saddle and seatpost

• Saddle: Fizik Argo Terra X5
• Saddle width: 150 mm
• Saddle gender designation: Unisex
• Saddle weight: approx. 273 g
• Seatpost: RockShox Reverb AXS XPLR
• Seatpost diameter: 27.2 mm
• Seatpost material: Aluminum
• Seatpost weight: approx. 660 g

Lights and accessories

• Rear light: Lupine C14 Tail Light R112 Set
• Reflectors: Reflector Set
• Pedals: Flat Pedals
• Charger: Bosch 4A
• Included: Canyon Organza Bag
• Included: Wrench Tool 15 mm
• Included: Canyon Assembly Paste
• Included: Canyon Torque Wrench
• Included: Quick Start Guide Grizl
• Included: Canyon Shock Pump 300 Psi
• Included: Canyon Smallbox
• Included: Carbon bottle cage
• Included: Knog Luxe bell
• Included: Canyon Smallbox
