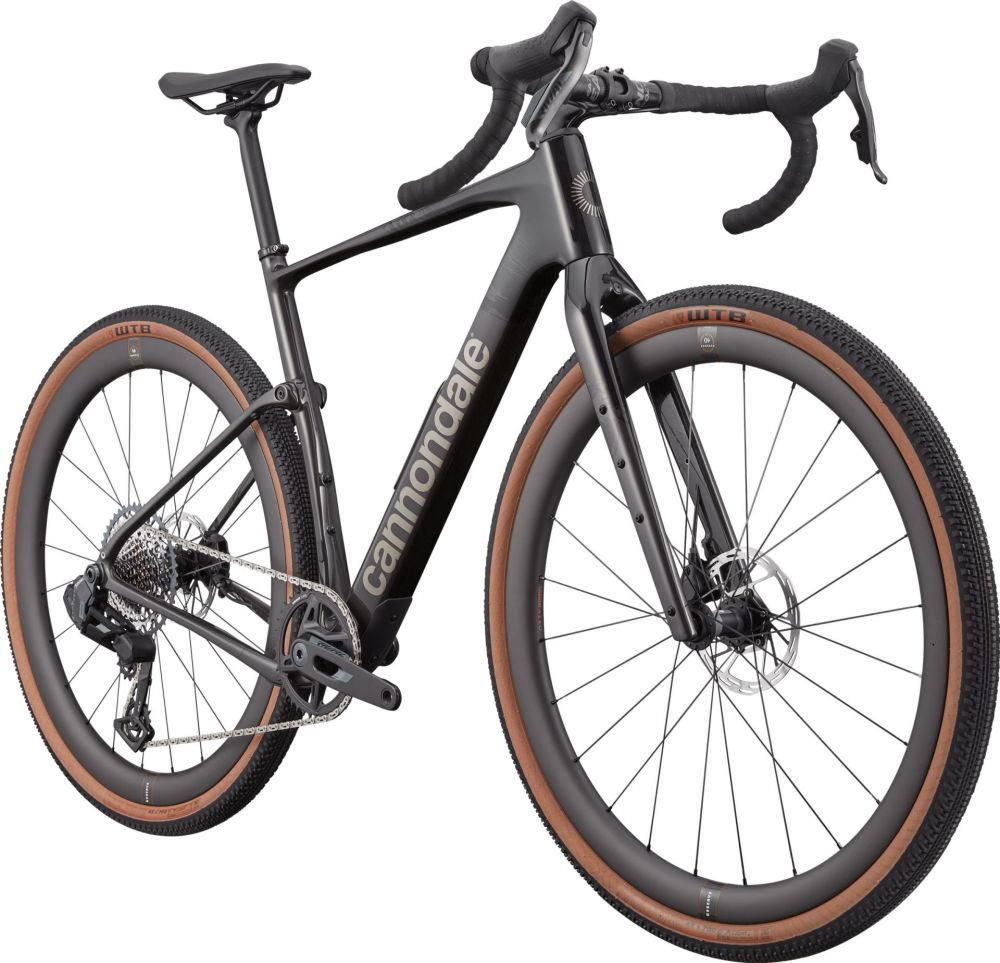

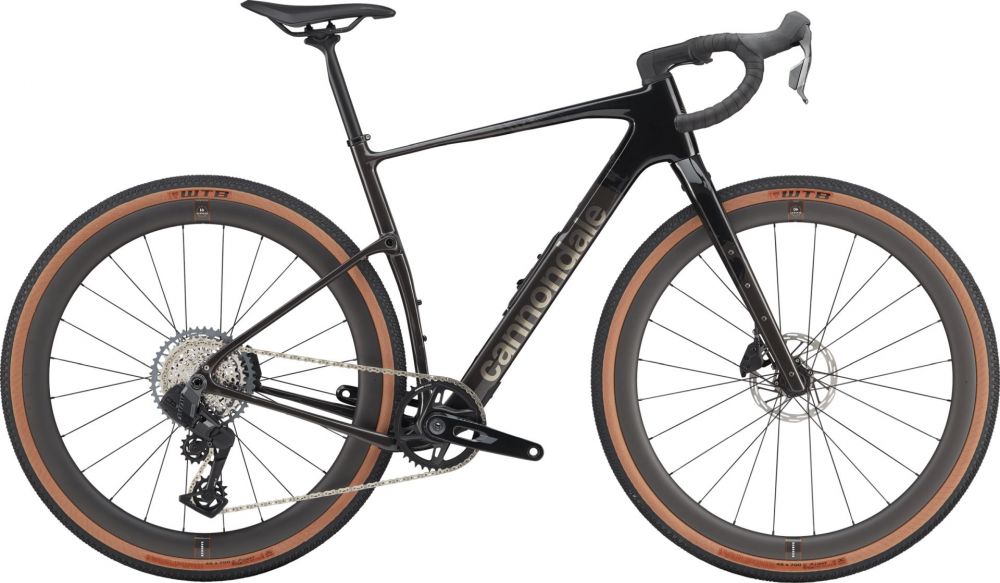

Cannondale Topstone Carbon 1 AXS

Cannondale Topstone Carbon 1 AXS – wireless carbon gravel bike for long rides

The Cannondale Topstone Carbon 1 AXS is a high-performance carbon gravel bike built for fast gravel riding, long adventures, bikepacking trips, and mixed surfaces. The lightweight Topstone Carbon frame, KingPin rear suspension, and wireless SRAM Rival AXS XPLR drivetrain make the bike fast, comfortable, and easy to handle even when the terrain gets rough.

The Topstone Carbon 1 AXS stands out from traditional gravel bikes, particularly with its KingPin design, which provides up to 30 mm of frame compliance without a complex shock absorber. This improves grip, reduces vibration, and makes long days in the saddle more comfortable. The Proportional Response frame design is tuned for each size, so ride feel, stiffness, and comfort remain balanced across all frame sizes.

The wireless SRAM Rival AXS XPLR 1x13 drivetrain offers modern, precise, and hassle-free shifting without cable adjustments. A 40-tooth front chainring and 10–46T cassette provide a wide range of gears for both fast gravel riding and steeper climbs. Reserve 40|44 GR Carbon wheels, DT Swiss 370 hubs, and WTB Vulpine TCS Light 700x45c tubeless-ready tires form a lightweight, fast, and durable wheel package for gravel riding.

The Topstone Carbon 1 AXS is ideal for riders who want one highly versatile gravel bike for training, long rides, gravel races, longer commuting routes, and equipped adventures. The frame's StashPort downtube storage, multiple mounting points, fender compatibility, 27.2 mm dropper-seatpost compatibility, and generous tire clearance make the bike ready for both fast riding and long-distance use.

Technical Specifications and Features

Cannondale Topstone Carbon 1 AXS – a complete package for demanding gravel riding

The Cannondale Topstone Carbon 1 AXS is built around a lightweight carbon frame. The frame uses Cannondale's KingPin system, in which an axle structure passing through the seat tube allows controlled vertical compliance in the rear triangle and seatpost. This design provides comfort and grip without the weight or maintenance requirements of a traditional rear shock absorber. This makes the bike particularly effective on long gravel sections, rooty trails, and uneven forest roads.

The frame features a Proportional Response design tuned for each size, meaning the carbon layup, geometry, and ride feel are designed to work as balanced as possible for riders of different sizes. Internal cable routing and the Cannondale C1 Conceal stem finish the clean look, while the BSA 68 mm threaded bottom bracket makes maintenance more practical. The frame is also UDH-compatible, designed for flat-mount disc brakes, and equipped with a 12x142 mm thru-axle.

The drivetrain is based on the SRAM Rival AXS XPLR package. The wireless electronic drivetrain eliminates the adjustments caused by traditional derailleur cable stretch and dirt, while the 1x13 gearing keeps operation simple. The SRAM Rival DUB 40T crankset and SRAM Rival XPLR XG-1351 10–46T cassette provide a wide range of gears for gravel roads, hilly routes, and long rides. Hydraulic SRAM Rival disc brakes with 160/160 mm Paceline CenterLock rotors provide reliable control even in wet conditions, when loaded, and on long descents.

The wheel package is one of this model's strongest points. The Reserve 40|44 GR Carbon wheels are tubeless-ready and feature Sapim CX-Ray Aero spokes and DT Swiss 370 hubs. The WTB Vulpine TCS Light 700x45c tires offer fast rolling, ample air volume, and excellent comfort for gravel riding. The frame has clearance for tires up to 52 mm wide with a 1x drivetrain, and according to Cannondale, the fork can accommodate a tire up to 56 mm wide when measured at its true width.

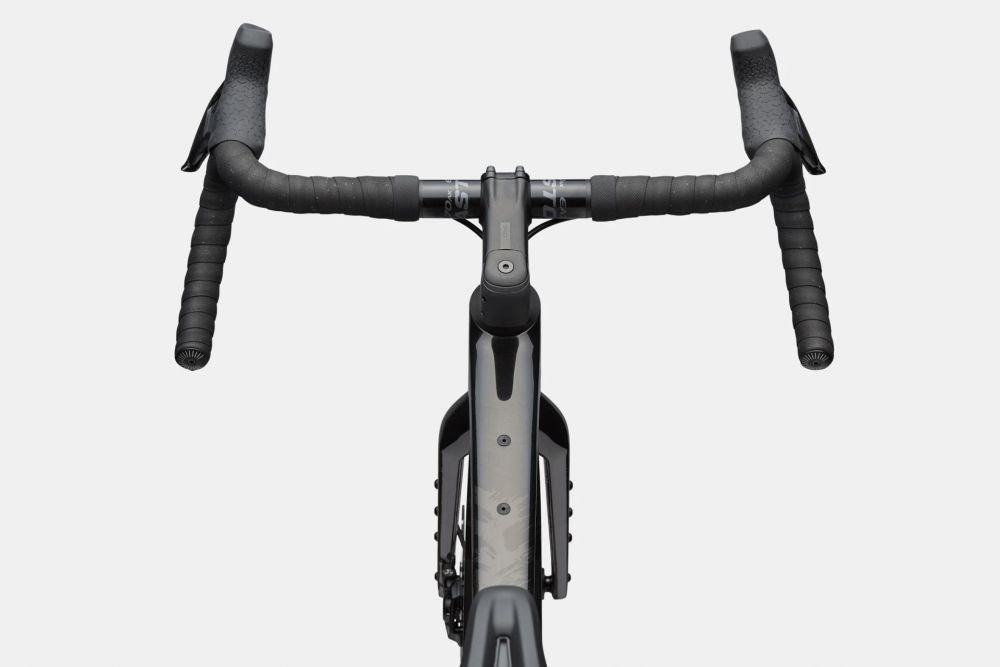

The cockpit features an Easton EA70 AX aluminum handlebar with a 16-degree flare. The widening lower section improves control on technical gravel and during fast descents while maintaining an efficient road-bike-like riding position. The Cannondale SAVE Carbon seatpost adds comfort at the rear, and the Fizik Terra Argo X5 saddle supports a long-distance riding position. The bike also comes with a Large StashBag downtube bag, Reserve Fillmore tubeless valves, a SRAM AXS charger, and a Garmin/Wahoo-compatible Conceal Stem computer mount.

Key Features

• Lightweight Topstone Carbon carbon frame

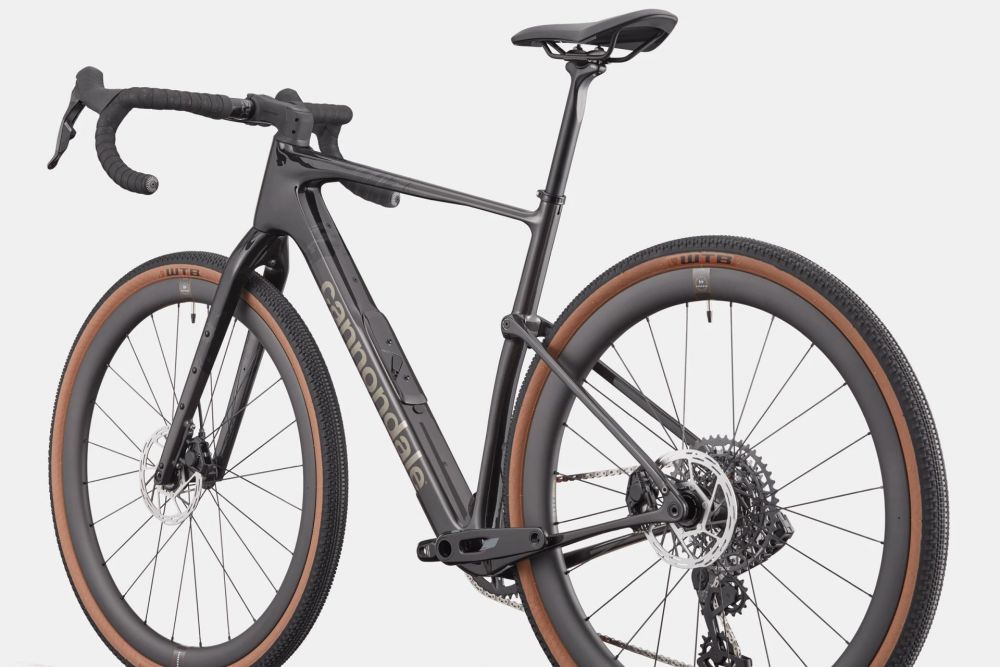

• KingPin rear suspension with up to 30 mm of travel
• Proportional Response frame design tuned for each size

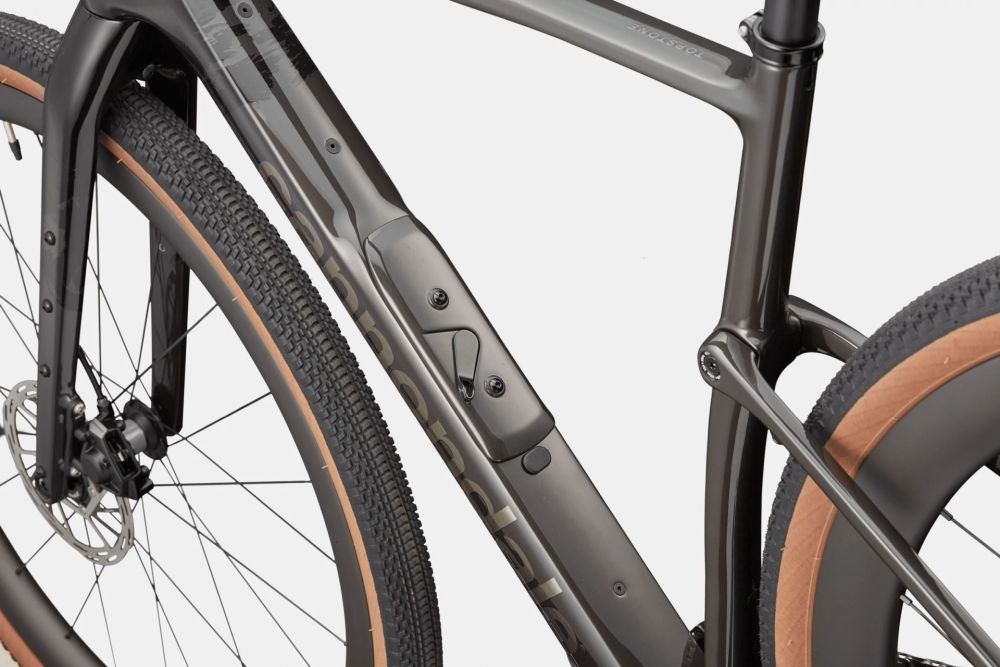

• StashPort downtube storage and included StashBag
• SRAM Rival AXS XPLR 1x13 wireless electronic drivetrain
• SRAM Rival hydraulic disc brakes with 160/160 mm rotors
• Reserve 40|44 GR Carbon tubeless-ready carbon wheels
• DT Swiss 370 hubs
• WTB Vulpine TCS Light 700x45c tubeless-ready tires
• Easton EA70 AX flare handlebar
• Cannondale SAVE Carbon 27.2 mm seatpost
• Dropper-compatible frame with internal routing
• BSA 68 mm threaded bottom bracket
• UDH compatibility
• Multiple bottle, accessory, and fender mounting points

Technical Specifications

• Frame: Topstone Carbon, KingPin, Proportional Response, StashPort, internal cable routing, 12x142 mm thru-axle, UDH, BSA 68 mm, flat mount
• Fork: Topstone Carbon, 1-1/8”–1.5”, 55 mm OutFront offset, 12x100 mm thru-axle, flat mount, accessory and fender mounts

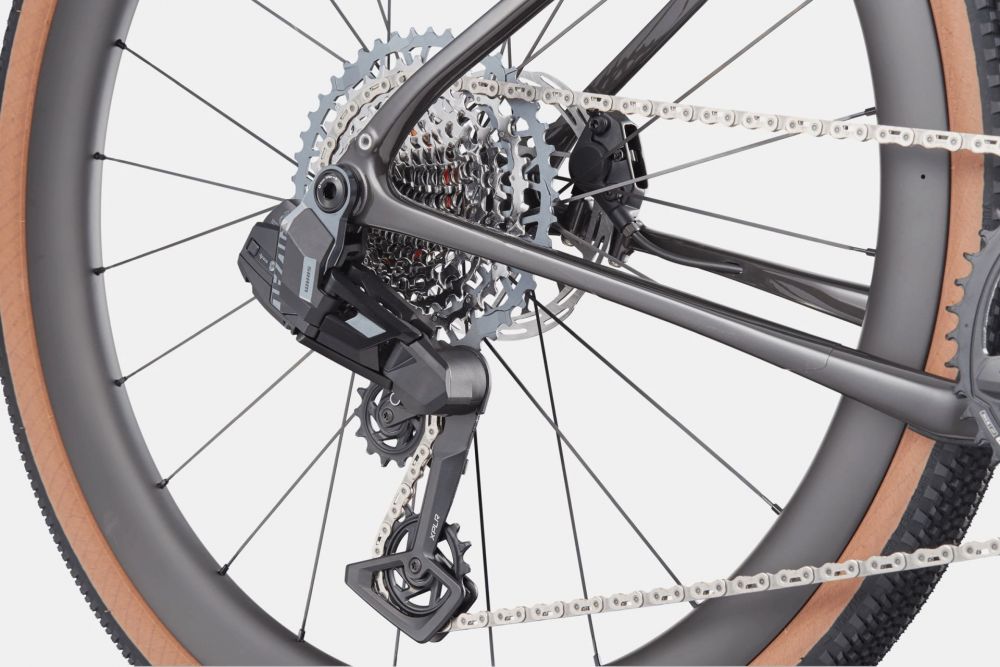

• Rear derailleur: SRAM Rival AXS XPLR
• Shifters: SRAM Rival AXS

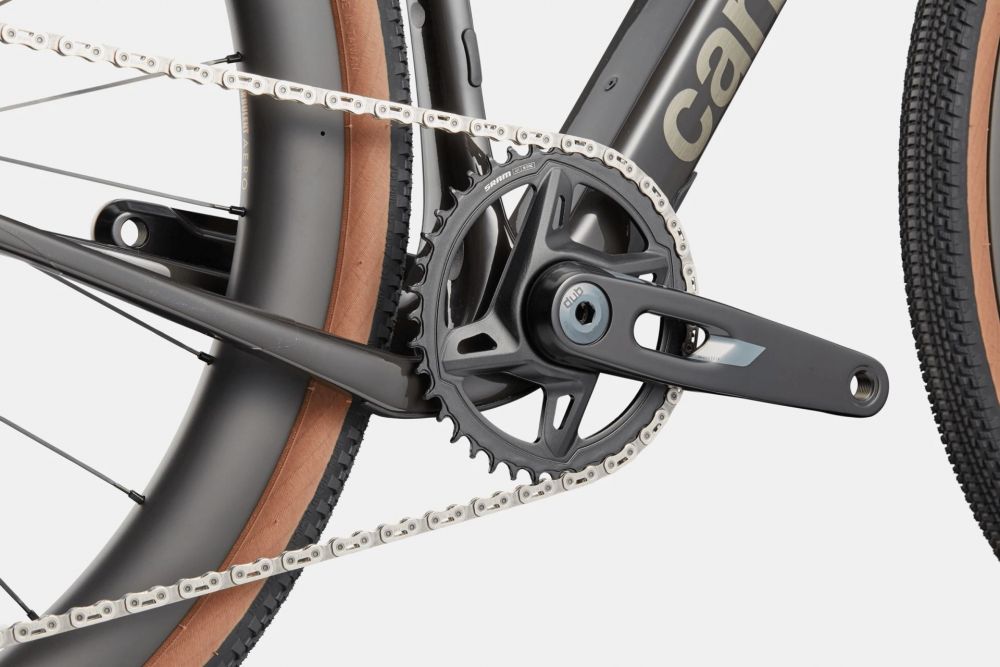

• Crankset: SRAM Rival DUB, 40T
• Cassette: SRAM Rival XPLR XG-1351, 10–46T, 13-speed
• Chain: SRAM Rival
• Bottom bracket: SRAM DUB BSA Road 68 Wide
• Brakes: SRAM Rival hydraulic disc brakes, 160/160 mm SRAM Paceline CenterLock rotors
• Wheels: Reserve 40|44 GR Carbon, Turbulent Aero Tech, 24h, tubeless-ready
• Spokes: Sapim CX-Ray Aero, straight-pull
• Hubs: DT Swiss 370, front 12x100 mm / rear 12x142 mm CenterLock
• Tires: WTB Vulpine TCS Light, 700x45c, tubeless-ready
• Handlebar: Easton EA70 AX, aluminum, 16° flare
• Stem: Cannondale C1 Conceal, aluminum, 31.8 mm, -6°
• Saddle: Fizik Terra Argo X5, S-Alloy rails
• Seatpost: Cannondale SAVE Carbon, 27.2 mm
• Accessories: Large StashBag, Reserve Fillmore tubeless valves, SRAM AXS charger, Garmin/Wahoo-compatible computer mount
• Model code: C15045U
