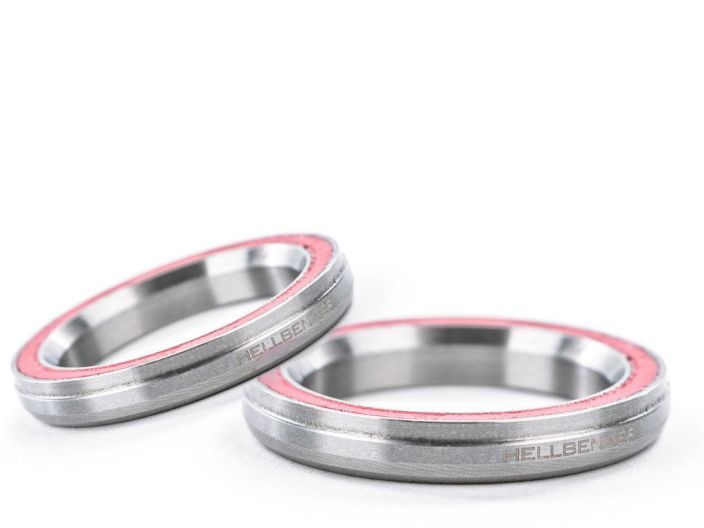

Cane Creek Hellbender Bearing Kit 36x45 41mm/52mm
Prices include VAT.
The Cane Creek Hellbender Bearing Kit 36x45 41/52 mm is a sealed headset bearing kit made of stainless steel for tapered headset bearings.
Shipping
Delivery methods, shipping costs and the estimated delivery time are shown at checkout before you confirm your order. You will receive tracking details by email when your parcel is on its way. More about shipping
Store pickup
Choose pickup from our Pitäjänmäki store at checkout and pay no shipping costs. We email you when your order is ready for pickup at Konalantie 9, Helsinki.
Returns and exchanges
Online orders have a 14-day right of withdrawal from the day you receive the product. You may examine the product as you would in a store. Please return it in its original packaging if possible. Return instructions
Warranty and service
Products come with a manufacturer's or importer's warranty, which does not limit your rights under consumer protection law. We handle warranty claims for you: contact us or bring the product to our store. Our service work comes with a 3-month warranty.
Description
Cane Creek Hellbender Bearing Kit 36x45 41 mm / 52 mm
The Cane Creek Hellbender Bearing Kit 36x45 41 mm / 52 mm is a high-quality stainless steel headset bearing kit for bikes that use a 41 mm upper bearing and a 52 mm lower bearing. The kit is suitable for replacing worn, grinding, or loose headset bearings when the dimensions and chamfer angles of the old bearings match.
The bearings in the Hellbender series are specifically designed for demanding conditions where the headset is exposed to moisture, dirt, wash water, and the stresses of off-road riding. Stainless steel improves corrosion resistance compared to standard steel bearings, and the sealed cartridge design helps keep dirt and moisture out of the bearing.
This 41 mm / 52 mm kit is a typical solution for tapered headset configurations, where a smaller 1 1/8” headset bearing is used at the top and a larger 1.5” headset bearing at the bottom. The chamfer angle is 36° x 45°, so the kit should not be confused with 45° x 45° bearings, even if the outer diameters appear to be the same.
Cane Creek Hellbender 41/52 mm - technical specifications and compatibility
When choosing a headset bearing, the most important information is the bearing's outer diameter, inner diameter, height, and chamfer angles. In this kit, Cane Creek's nominal sizes are 41 mm and 52 mm, and both have a chamfer angle of 36° x 45°. This means the bearing only fits headset solutions where the frame, crown race, and compression ring are designed for that specific chamfer angle.
The kit is a good upgrade for, for example, a mountain bike, a gravel bike, or a frame where the original headset bearings have worn out or started to grind. Headset wear is often noticeable as notched steering, play when pressing against the front brake, creaking, or a stiff steering feel.
Technical specifications
- Product: Cane Creek Hellbender Bearing Kit 36x45 41 mm / 52 mm
- Product type: headset bearing kit
- Series: Hellbender
- Bearing type: sealed cartridge headset bearing
- Material: stainless steel
- Chamfer angles: 36° x 45°
- Upper bearing: 41 mm
- Lower bearing: 52 mm
- Commonly stated 41 mm bearing size: approx. 30.3 x 41 x 6.5 mm
- Commonly stated 52 mm bearing size: approx. 40 x 52 x 6.5 mm
- Contents: 2 headset bearings
- Application: tapered headsets using a 41 mm upper bearing and a 52 mm lower bearing
- Manufacturer code: BAA1178
- UPC: 840226078519
Specifications
- Brand
- Cane Creek
Specifications
- Product
- Cane Creek Hellbender Bearing Kit 36x45 41 mm / 52 mm
- Product type
- headset kit
- Series
- Hellbender
- Bearing type
- sealed cartridge headset
- Material
- stainless steel
- Bevel angles
- 36° x 45°
- Upper bearing
- 41 mm
- Lower bearing
- 52 mm
- Commonly stated 41 mm bearing size
- approx. 30.3 x 41 x 6.5 mm
- Commonly stated 52 mm bearing size
- approx. 40 x 52 x 6.5 mm
- Contents
- 2 headsets
- Intended use
- tapered headsets that use a 41 mm upper bearing and a 52 mm lower bearing
- Manufacturer code
- BAA1178
- UPC
- 840226078519
